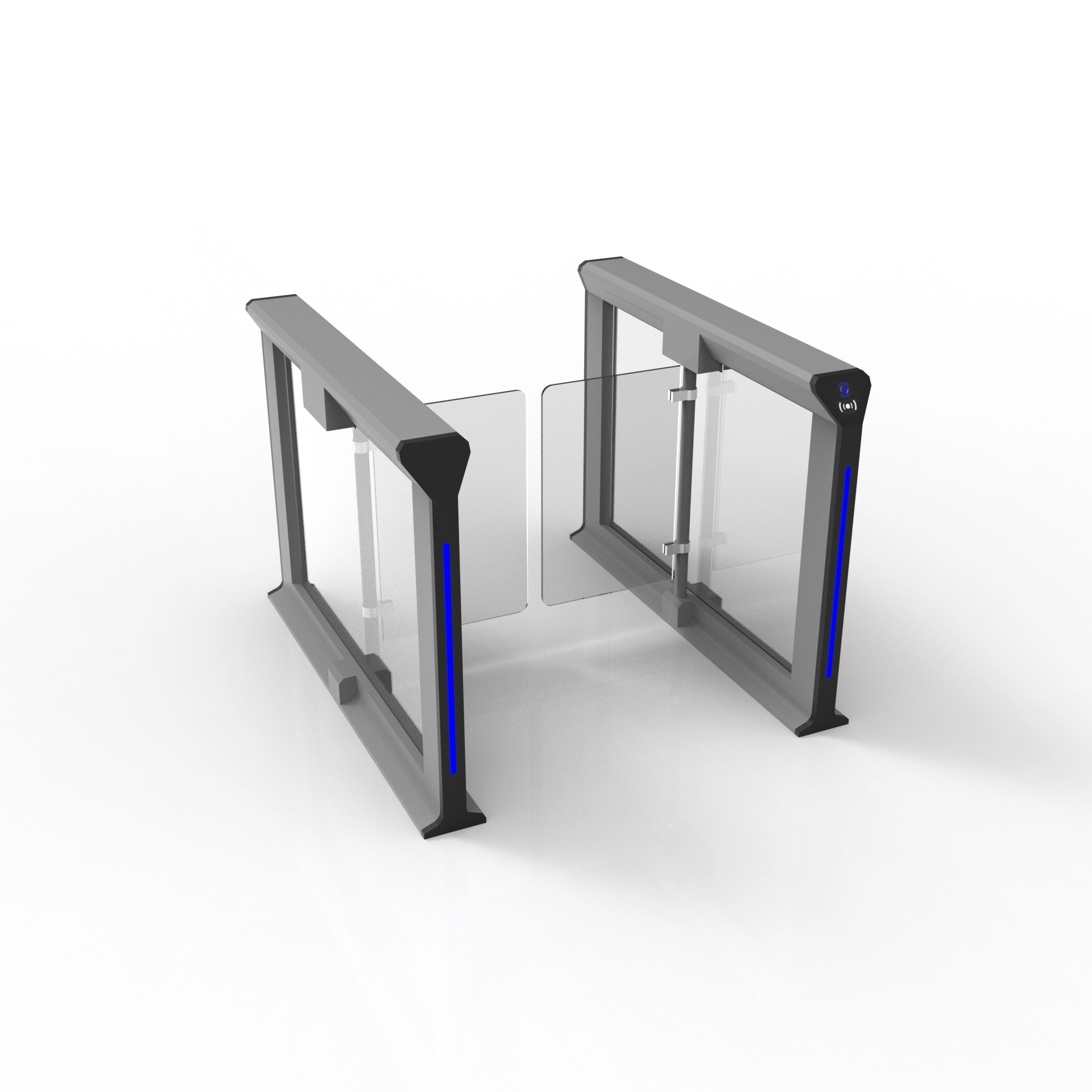

Swing Turnstile Gate Bi-Directional Physical BLS-S601
DC Brushless Motor
A core drive component boasting high efficiency, low noise and extended service life. It adopts closed-loop speed regulation to reliably support high-frequency pedestrian passage.
Clutch Mechanism
This mechatronic clutch allows manual swing arm pushing for emergency evacuation during power outages, and automatically re-engages the drive system once power is restored.
Hall Sensor
Reliably identifies tailgating, unauthorized reverse entry, forced intrusion, and equipment tampering incidents.
Infrared Sensors
Equipped with multi-point array layout, these sensors deliver all-around protection against clamping, tailgating, reverse entry and passback. They also verify passage status and work stably in both indoor and outdoor settings.
PLC Controller
The turnstile’s central control unit. It processes incoming signals, sends operational commands, and enables seamless linkage with external access control or time attendance systems.
Auto-Lock Reset
Automatically locks the swing arm during unauthorized access or abnormal operation, then resets after valid passage. It also triggers auto-locking if no pedestrian passes within 30 seconds of receiving a signal (time threshold adjustable).
Startup Self-Diagnosis
Initiates automatic inspection of key components when powered on. It displays fault codes for troubleshooting, and locks the passageway to prevent use if critical malfunctions are detected.
Clear Voice & LED Indicators Guidance
Offers multi-language voice prompts paired with LED indicators, guiding pedestrians to pass through the turnstile in an orderly and safe way.
Features
● Bolan design only, slim width suitable for narrow installation spaces.
● Clear LED light for indication and decorations
● Elegant appearance and advanced gray suits for most of high-end venues
● Auto-unlock when power off for emergency and fire alarm
● Pairs of infrared sensors for anti-tailgating, anti-reverse, anti-passback, anti-collision, anti-pinch
● Brushless DC motor ensures the swing gate operation smooth and quiet
● RS232 and RS485 communication interface support most of management systems integrated
● Light weight structure convenient for transportation, installation and maintenance
● ≤40dB low-noise operation (shopping environments)
● 24/7 lifetime technical support
Technical Specifications
| Parameters | Specification |
| Material | Frame: 304stainless steel powder coating colors，Carbon steel, 316stainless steel optional |
| Swing barriers: 10mm thickness Acrylic, tempered glass,PVC or stainless steel | |
| Dimensions |
Main body:1400mm(length)*160mm(width)*980mm(height) Swing barriers: 250mm-450mm width |
| Passage Width | Standard: 600-900mm customized, some special models can be much wider |
| Speed Performance | 20-30 people/min; Barrier opening time: 0.8-1.2s after authorization |
| Power Supply | AC 100-240V (universal voltage); |
| Control voltage: DC 24V | |
| Motor Parameters | Brushless DC motor; Power: 40-60W; Rotational speed: 3000rpm (stable and low-noise operation) |
| Interface | Input：relay signal; output: dry contact RS232, RS485 |
| Environmental Resistance | IP54/IP65 rating; |
| Operating temp: -25℃ to 65℃; |
Structure and Dimensions
BOLAN designed swing turnstile gate has a modular structure: a corrosion-resistant stainless steel or carbon steel coating colors main frame, horizontal swing barriers (tempered glass/stainless steel panels/ acrylic, customizable width for ADA compliance), a precision DC brushless drive mechanism for quiet, stable operation, embedded infrared anti-reverse, anti-pinch & tailgating sensors, control main board and power supply, LED indicators and card reader windows(can open windows for parts as your access control devices)
Customization & Accessories
Customization options
★ Custom Design Solutions
Comprehensive custom design support to turn your distinctive demands into practical, fully functional turnstile products.
★ Tailored Dimensions & Layouts
Customized sizes and configurations engineered to precisely adapt to on-site space limitations and project-specific installation criteria.
★ Premium Material & Finish Selections
Main Body: 304/316 stainless steel or powder-coated steel (with color matching service); available finishes include brushed, snowflake, mirror and matte textures.
Swing Barriers: Width-adjustable barriers (glass/acrylic/stainless steel variants) with customizable colors, logo engraving, lighting setups and decorative details.
★ Brand-Focused Customization
Logo engraving or silk-screen printing on cabinets and barriers; custom-sized access control window cutouts to achieve a unified brand visual presentation.
★ Optional Accessory Upgrades
Upgrade options include dual-mode static/dynamic LED indicators, audio alarm systems, and custom ambient LED lighting for enhanced usability.
★ Portable Deployment Option
Optional base-mounted installation design for convenient on-site repositioning and flexible deployment scenarios.
★ Professional Customization Guidance
Detailed specifications are available on the Customization Services page; direct consultation is recommended for specialized customization requirements.
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us
Operating & Control
Operating ways
• Single-Direction Authorized Entry
Preset direction requires authentication; reverse lane permanently locked.
• Dual-Direction Verified Access
Both inbound & outbound need credential validation; no unauthorized passage allowed.
• Single-Direction Free Flow
Designated direction for unrestricted flow; reverse lane locked by default.
• Dual-Mode Operation (Full Access/Full Lockdown)
Switchable between two-way free flow and full system lockdown per site requirements
• Access control and time attendance system: RFID card/wristband, biometric/face recognition, computer with management software can also control directly
• Ticket system: QR code wristband/ticket, E-QR code
• coin/token collector or RFID card insert, wristband collector
• Exit button(optional)
• Wireless remote control(optional)
• Manual override keys(optional)
• Manual push after power off
• Infrared sensor detect(factory setting optional)
•Any other control system or solutions please confirm with us
