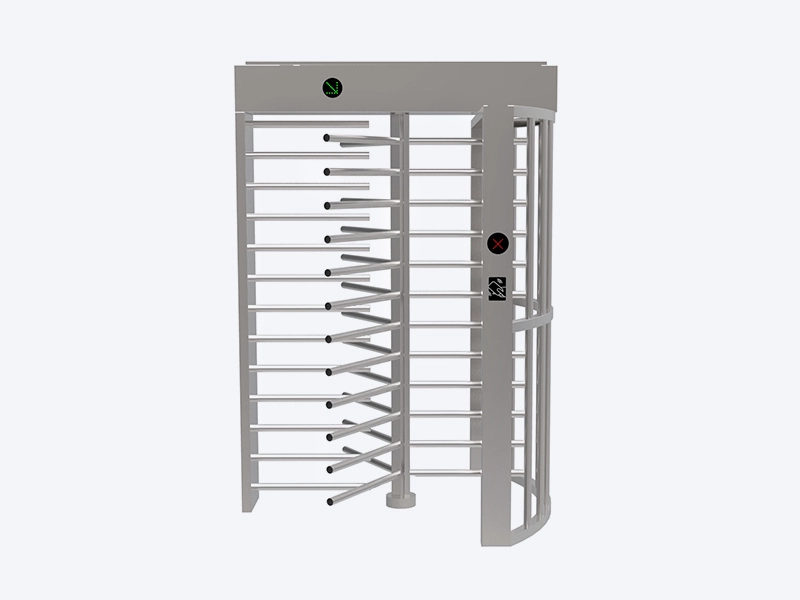

BLS-FH53 Full height turnstile QR code access control system
5.0
Brand:
BOLAN，Neutral, OEM & ODM Acceptable
Model:
BLS-FH53
MOQ:
1pc
Payment:
T/T before shipping
Delivery time:
One week(Depends on Quantity)
Start Port:
Shenzhen
Certification:
CE, ISO9001
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technology
Self-centering rotor mechanism
the turnstile rotor automatically resets to its starting set position after every rotation
Auto-locking
triggers self-locking in 30 seconds (default duration, fully customized) if the gate detects an open signal but no pedestrian passage occurs
Anti-pinch safety mechanism
prevents rotor jamming or pedestrian entrapment mid-rotation in the event of sudden power outage
Anti-reverse system
avoids pedestrian reverse passing through
Mechanism with hydraulic shock absorb
operating more stable and without noise
Permanently lubricated bearings
operating smooth and easy for maintenance
Manual key open
for emergency and special requirements (both directions)
Features
1.High-security design prevents tailgating and unauthorized access effectively
2.Anti-climb structure (2.0–2.35m height) eliminates climbing risks
3.Robust 304/316 stainless steel construction resists damage and corrosion
4.Smooth rotor operation with precision bearings for low noise
5.Easy integration with biometric/RFID access control systems
6.Emergency release function ensures safe evacuation in crises
7.Weatherproof (IP54+) for indoor/outdoor use in extreme conditions
8. Single direction only for entry or exit, bi-direction for entry and exit optional
Technical Specifications
| Parameter Items | Specifications |
| Material | 304 stainless steel or carbon steel/201 stainless steel powdered coating colors (colors optional, anti-rust, anti-corrosion) 316 stainless steel optional |
| Overall Dimensions | 1630mm (length) × 1500mm (width) × 2310mm (height) |
| Passage Width | 650mm (customized according to needs) |
| Arm Dimensions | Three arms or four arms, 610mm Length(can be added), 38mm diameter |
| Rotating angles | 90 or 120 degrees |
| Passage Speed | 20-30 persons per minute |
| Working Voltage | AC110V/ 220V ± 10%, 50Hz |
| Drive Voltage | DC12V+DC18V |
| Operating Power | ≤ 30W (energy-saving) |
| Working Current | <= 2000mA |
| Input signal | 12V DC level or 12V pulse > 100ms |
| Interface | Input: Relay signal Output: Dry contact compatible with most of access control devices on the market RS485, TCP/IP |
| Protection Level | IP54 (suitable for indoor and outdoor use) IP68(suitable for harsh environment) |
| Working Temperature | -20℃ ~ 60℃ (adapts to various climates) |
| Power Failure Handling | Automatic unlock to ensure pedestrian pass;automatic lock when power on. If for special sites, we also can change it.(prison, government institution etc high security requirement sites) |
Structure and Dimensions
The core structure consists of three main parts: the top housing(including the mechanism, main board, power supply), two sides of fence(make the passing channel enclosed), the rotation system(rotor shaft with three or four arms, base bearings)
drawing1 拷贝 (3)
drawing2 拷贝 (3)
drawing3 拷贝 (2)
6-1
6-2
Customization & Accessories
Customization options
★ Custom design & dimensions – tailored to on-site layout and project needs
★ Versatile materials & finishes – 304/316 stainless steel, powder-coated carbon steel (custom colors); brushed, snowflake, mirror, matte textures; anodized aluminum (select models)
★ Logo customization – stainless steel nameplates or silk-screen printing
★ Flexible LED indicators – fixed red "X"/green arrow or dynamic flowing lights
★ Reader window customization – size, shape, logo/slogan printing available
★ Rotor options – 3/4 arms; straight/U-type pipes; stainless steel/acrylic panels ★ Optional arm casings – full stainless steel welded or PVC covers
★ Optional audio alarm system – on-demand integration
★ Portable solution – optional welded carbon steel base for temporary/relocatable use
★ For more details, visit our Customization Services page or contact us for special requests
★ Versatile materials & finishes – 304/316 stainless steel, powder-coated carbon steel (custom colors); brushed, snowflake, mirror, matte textures; anodized aluminum (select models)
★ Logo customization – stainless steel nameplates or silk-screen printing
★ Flexible LED indicators – fixed red "X"/green arrow or dynamic flowing lights
★ Reader window customization – size, shape, logo/slogan printing available
★ Rotor options – 3/4 arms; straight/U-type pipes; stainless steel/acrylic panels ★ Optional arm casings – full stainless steel welded or PVC covers
★ Optional audio alarm system – on-demand integration
★ Portable solution – optional welded carbon steel base for temporary/relocatable use
★ For more details, visit our Customization Services page or contact us for special requests
Optional Accessories
★ RFID card reader
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector
★ Inner or outer counter
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector
★ Inner or outer counter
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us
Warranty
1year for electric parts, 2years for other parts after delivery. More details please feel free to confirm with us.
Operating & Control
Operating ways
· One-way Controlled Access – Authorized entry/exit in one direction; opposite direction locked
· Two-way Controlled Access – Authorization required for both entry and exit
· One-way Free Access – Unrestricted passage in one direction; opposite direction locked
· Permanent Free/Locked Mode – Full turnstile unlock or lock at all times
· Two-way Controlled Access – Authorization required for both entry and exit
· One-way Free Access – Unrestricted passage in one direction; opposite direction locked
· Permanent Free/Locked Mode – Full turnstile unlock or lock at all times
Control ways
• Access control and time attendance system: RFID card/wristband, biometric/face recognition, computer with management software can also control directly
• Ticket system: QR code wristband/ticket
• coin/token collector or RFID card insert
• Exit button
• Wireless remote control
• Manual keys
• Ticket system: QR code wristband/ticket
• coin/token collector or RFID card insert
• Exit button
• Wireless remote control
• Manual keys
Application Scenes
1
Government & Law enforcement facilities
High-security access control for courthouses, police stations, correctional facilities and restricted government zones
2
Industrial & Manufacturing sites
Secure perimeter entry/exit for factories, power plants, refineries and heavy industrial parks to prevent unauthorized access
3
Logistics & Warehousing
Controlled access for distribution centers, freight terminals and cold storage facilities to protect high-value goods
4
Mining & Construction sites
Site access management to ensure only authorized personnel and vehicles enter risk zones
1
Transportation hubs (restricted zones)
Staff-only or restricted area access control for airports, railway stations and metro stations
2
Data centers & Financial institutions
Critical infrastructure protection for data centers, bank vaults and financial service operation centers
3
Stadiums & Event venues
Crowd management and anti-tailgating control for large-scale sporting events, concerts and exhibitions
