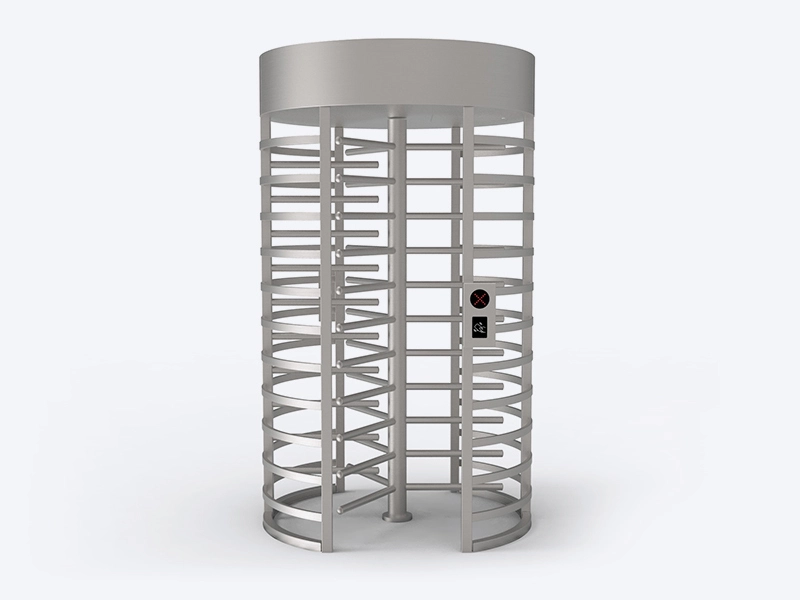

BLS-FH57 Stainless steel full height turnstile gate anti-tailgating solution
5.0
Brand:
BOLAN，Neutral, OEM & ODM Acceptable
Model:
BLS-FH57
MOQ:
1pc
Payment:
T/T before shipping
Delivery time:
One week(Depends on Quantity)
Start Port:
Shenzhen
Certification:
CE, ISO9001
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technology
Self-centering rotor mechanism
the turnstile rotor automatically resets to its starting set position after every rotation
Auto-locking
triggers self-locking in 30 seconds (default duration, fully customized) if the gate detects an open signal but no pedestrian passage occurs
Anti-pinch safety mechanism
prevents rotor jamming or pedestrian entrapment mid-rotation in the event of sudden power outage
Anti-reverse system
avoids pedestrian reverse passing through
Mechanism with hydraulic shock absorb
operating more stable and without noise
Permanently lubricated bearings
operating smooth and easy for maintenance
Manual key open
for emergency and special requirements (both directions)
Features
1. All-around security solution for industrial, commercial, and public venues
2. Corrosion-resistant materials suitable for harsh environments
3. Low-power consumption for energy efficient long term use
4. Tamper-proof fasteners and reinforced frame prevent damage
5. Fast rotor rotation (0.5–1.0s per cycle) make traffic flow smoothly
6. Emergency unlock feature complies with fire safety standards
7. Compatible with central QR code access control management software
8. High load-bearing capacity ensures long service life
Technical Specifications
| Parameter Items | Specifications |
| Material | 304 stainless steel or carbon steel/201 stainless steel powdered coating colors (colors optional, anti-rust, anti-corrosion) 316 stainless steel optional |
| Overall Dimensions | 1630mm (length) × 1500mm (width) × 2310mm (height) |
| Passage Width | 650mm (customized according to needs) |
| Arm Dimensions | Three arms or four arms, 610mm Length(can be added), 38mm diameter |
| Rotating angles | 90 or 120 degrees |
| Passage Speed | 20-30 persons per minute |
| Working Voltage | AC110V/ 220V ± 10%, 50Hz |
| Drive Voltage | DC12V+DC18V |
| Operating Power | ≤ 30W (energy-saving) |
| Working Current | <= 2000mA |
| Input signal | 12V DC level or 12V pulse > 100ms |
| Interface | Input: Relay signal Output: Dry contact compatible with most of access control devices on the market RS485, TCP/IP |
| Protection Level | IP54 (suitable for indoor and outdoor use) IP68(suitable for harsh environment) |
| Working Temperature | -20℃ ~ 60℃ (adapts to various climates) |
| Power Failure Handling | Automatic unlock to ensure pedestrian pass;automatic lock when power on. If for special sites, we also can change it.(prison, government institution etc high security requirement sites) |
Structure and Dimensions
The core structure consists of three main parts: the top housing(including the mechanism, main board, power supply), two sides of fence(make the passing channel enclosed), the rotation system(rotor shaft with three or four arms, base bearings).
5-1
5-2
5-3
FH57 (1) 拷贝2
FH57 (7) 拷贝
Customization & Accessories
Customization options
★ Bespoke design & dimension – tailored to match your on-site layout and specific project requirements.
★ Diversified material & surface finish options – choose from 304/316 stainless steel, powder-coated carbon steel (custom color available); surface finishes include brushed, snowflake, mirror, and matte textures. Anodized aluminum with optional color schemes is also offered for select models.
★ Custom Logo application – available via stainless steel nameplates or silk-screen printing.
★ Flexible LED indicator – Select fixed red "X" / green arrow displays, or dynamic flowing red/green arrow indicators.
★ Customized reader window specifications – support personalized adjustments to window size, shape and adding logo or slogan.
★ Rotation selections – 3arms or 4arms rotation optional, straight pipe or U-type pipe optional, stainless steel plate or acrylic plate optional.
★ Optional arms craft selection – Full stainless steel welding cover or PVC cover optional.
★ Optional audio alarm system – can be integrated based on user needs.
★ Portable/Removable solution – Optional welding carbon steel base plate for scenarios requiring easy relocation and temporary deployment.
★ For more detailed information, please refer to our Customization Services page. If have any other special requests, do not hesitate to contact us for confirmation.
★ Diversified material & surface finish options – choose from 304/316 stainless steel, powder-coated carbon steel (custom color available); surface finishes include brushed, snowflake, mirror, and matte textures. Anodized aluminum with optional color schemes is also offered for select models.
★ Custom Logo application – available via stainless steel nameplates or silk-screen printing.
★ Flexible LED indicator – Select fixed red "X" / green arrow displays, or dynamic flowing red/green arrow indicators.
★ Customized reader window specifications – support personalized adjustments to window size, shape and adding logo or slogan.
★ Rotation selections – 3arms or 4arms rotation optional, straight pipe or U-type pipe optional, stainless steel plate or acrylic plate optional.
★ Optional arms craft selection – Full stainless steel welding cover or PVC cover optional.
★ Optional audio alarm system – can be integrated based on user needs.
★ Portable/Removable solution – Optional welding carbon steel base plate for scenarios requiring easy relocation and temporary deployment.
★ For more detailed information, please refer to our Customization Services page. If have any other special requests, do not hesitate to contact us for confirmation.
Optional Accessories
★ RFID card reader
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector
★ Inner or outer counter
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector
★ Inner or outer counter
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us
Warranty
1year for electric parts, 2years for other parts after delivery. More details please feel free to confirm with us.
Operating & Control
Operating ways
• Unidirectional Access-Control Mode Only one designated direction requires access credential verification for entry or exit; the reverse direction is kept permanently locked.
• Bidirectional Access-Control Mode
Option 1: Both entry and exit directions demand access authorization, enabling orderly two-way traffic management.
Option 2: One direction operates with access control validation, while the opposite direction allows free passage via push-button release.
• Unidirectional Free-Flow Mode: One direction permits unrestricted entry or exit without any authorization; the reverse direction remains locked at all times.
• Permanent Free-Flow or Locked Mode: fully unlocked state , or a fully locked state to block all entry and exit.
• Bidirectional Access-Control Mode
Option 1: Both entry and exit directions demand access authorization, enabling orderly two-way traffic management.
Option 2: One direction operates with access control validation, while the opposite direction allows free passage via push-button release.
• Unidirectional Free-Flow Mode: One direction permits unrestricted entry or exit without any authorization; the reverse direction remains locked at all times.
• Permanent Free-Flow or Locked Mode: fully unlocked state , or a fully locked state to block all entry and exit.
Control ways
• Access control and time attendance system: RFID card/wristband, biometric/face recognition, computer with management software can also control directly
• Ticket system: QR code wristband/ticket
• coin/token collector or RFID card insert
• Exit button
• Wireless remote control
• Manual keys
• Ticket system: QR code wristband/ticket
• coin/token collector or RFID card insert
• Exit button
• Wireless remote control
• Manual keys
Application Scenes
1
Government & Law enforcement facilities
High-security access control for courthouses, police stations, correctional facilities and restricted government zones
2
Industrial & Manufacturing sites
Secure perimeter entry/exit for factories, power plants, refineries and heavy industrial parks to prevent unauthorized access
3
Logistics & Warehousing
Controlled access for distribution centers, freight terminals and cold storage facilities to protect high-value goods
4
Mining & Construction sites
Site access management to ensure only authorized personnel and vehicles enter risk zones
1
Transportation hubs (restricted zones)
Staff-only or restricted area access control for airports, railway stations and metro stations
2
Data centers & Financial institutions
Critical infrastructure protection for data centers, bank vaults and financial service operation centers
3
Stadiums & Event venues
Crowd management and anti-tailgating control for large-scale sporting events, concerts and exhibitions
FH57 (4) 拷贝
FH57 (5) 拷贝
FH57 (9) 拷贝
