BLS-T6000 BOLAN Rising Bollard – Automatic anti-terrorist vehicle access control

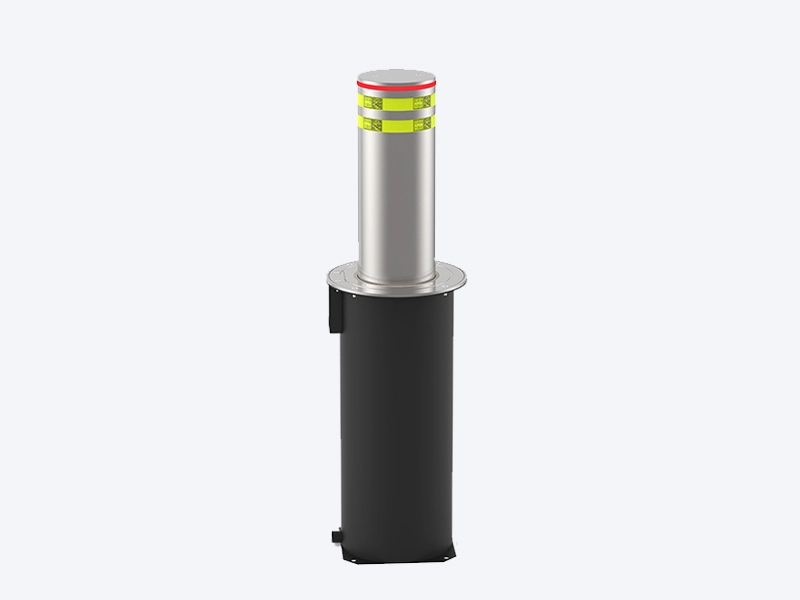

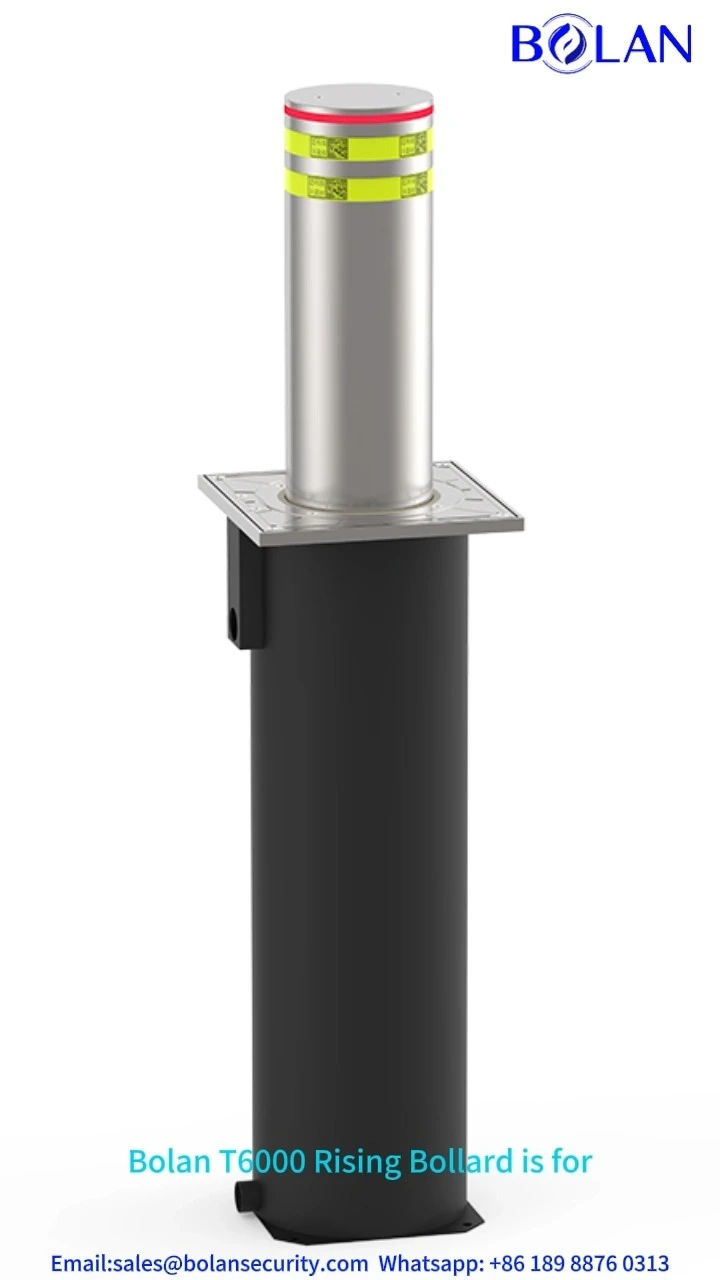

Name: BLS-T6000 BOLAN Rising Bollard – Automatic anti-terrorist vehicle access control
Brand: Bolan

Brand:

Brand: BOLAN，Neutral, OEM & ODM Acceptable

Model:

BLS-T6000

MOQ:

1pc

Payment:

T/T before shipping

Delivery time:

One week(Depends on Quantity)

Start Port:

Shenzhen

Certification:

CE, ISO9001

Technology

High-Strength Steel with Dual Coating

High-strength structural steel construction with hot-dip galvanizing + powder coating for superior wear and corrosion resistance.

K4/K8/K12 Anti-Ram Grades

K4/K8/K12 anti-impact grade options, capable of withstanding ram attacks from heavy-duty vehicles.

Fast Speed (1–4s)

Fast lifting/lowering speed (1–4s) with hydraulic/electromechanical drive systems for rapid response.

IP65 Rating

IP65 protection rating, adaptable to extreme temperatures (-40℃ to 70℃) for outdoor all-weather operation.

Multi-Control & Emergency Pump

Multi-control modes (automatic/manual/remote) and built-in hydraulic manual pump for emergency release.

Modular Design

Modular design for easy component replacement and low maintenance cost.

Features

● Precise vehicle access control, effectively intercepting unauthorized vehicles to prevent forced intrusion.

● Seamless integration with access control, LPR, CCTV and security management platforms for intelligent linkage.

● Stable load-bearing performance (80–120 ton static load) to withstand rolling of heavy vehicles.

● Emergency quick-release function ensures unobstructed passage for fire engines, ambulances and other rescue vehicles.

● Low-noise operation suitable for noise-sensitive areas like residential communities and commercial centers.

Technical Specifications

Parameter Category	Technical Details
Structural Design	Lifting bollard material: 304 Stainless steel Body Material: High-strength structural steel coating black Thickness 6, 8, 10 and 12mm are optional
	Diameter: 168/219/273mm (optional)
	Embedded Depth: 1100mm
Lifting height	≥ 600 mm
Voltage and power	AC110-240V, 50HZ 350W
Control system	PLC/ MCU controller (500400200mm)
Core Performance	Rising/Lowering Speed: 1-4 s
	LED warning light: monochrome and multi-color are optional
	Static Load Capacity: 80–120 ton
Control & Protection	Protection Rating: IP65
	Control Modes: Automatic/Manual/Remote
	Emergency Release: manual release
Environmental Adaptability	Operating Temperature: -40 ~ 70 ℃
Environmental Adaptability	Corrosion Coating: Hot-dip galvanizing + powder coating

Structure and Dimensions

BOLAN rising bollard main structure consist of four main parts as below

10 (7)

9 (5)

8 (5)

BLS-T6000 BOLAN Rising Bollard – Automatic anti-terrorist vehicle access control 18

Bollard Body

Constructed from high-strength structural steel with hot-dip galvanizing and powder coating, available in diameter options of 168/219/273 mm for diverse security needs.

BLS-T6000 BOLAN Rising Bollard – Automatic anti-terrorist vehicle access control 19

Lifting Drive System

Hydraulic/electro-mechanical dual-drive options; the sealed drive unit ensures stable lifting/lowering (1-4s) and low noise during operation.

BLS-T6000 BOLAN Rising Bollard – Automatic anti-terrorist vehicle access control 20

Embedded Foundation

Reinforced steel concrete base with 800–1200 mm embedding depth, providing strong load-bearing capacity and anti-tipping performance against vehicle impact.

BLS-T6000 BOLAN Rising Bollard – Automatic anti-terrorist vehicle access control 21

Control Module

Integrated intelligent control box with automatic, manual, and remote control modes; compatible with external security systems for linkage operation.

Customization & Accessories

Optional Accessories

★ RFID card reader
★ Fingerprint reader, face recognition
★ QR code scanner
★ ESD tester
★ Temperature tester
★ Card insert, coin collector, token collector
★ Inner or outer counter
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us for confirmation

Optional Accessories

★ Access Control System (ACS)
★ CCTV Surveillance System
★ License Plate Recognition (LPR) System
★ Automatic Barrier Gate System
★ Parking Lot Management System
★ Perimeter Intrusion Detection System (PIDS)

Optional Accessories

★ Fire Alarm & Emergency Linkage System
★ Centralized Security Management Platform
★ Remote control, exit button
★ Traffic light
★Any other accessories you need, please feel free to contact us

Warranty

★ Generally 1year for electric parts, 2years for other parts after delivery. More details please feel free to confirm with us.

Operating & Control

Operating ways

• Single-direction single passage (one way for entry/exit, the other locked)
• Bi-direction single passage (entry via access control, exit via button)
• Single-direction free passage (one way unrestricted, the other locked)
• Bi-direction free passage (both entry and exit unrestricted)
• Permanent free/locked mode

Control ways

• Access control and time attendance system: RFID card/wristband, biometric/face recognition, computer with management software can also control directly
• ESD system: ESD tester+RFID card or face recognition or not
• Ticket system: QR code wristband/ticket
• coin/token collector or RFID card insert
• Exit button
• Wireless remote control

Application Scenes

High-security government premises (embassies, courthouses, military bases)

Block unauthorized vehicle intrusion and resist deliberate ram attacks.

Critical infrastructure sites (power plants, water treatment facilities, oil refineries)

Safeguard core assets from vandalism and forced entry.

Transportation hubs (airports, seaports, railway stations)

Control access to restricted zones and enhance perimeter security management.

Commercial & industrial complexes (logistics parks, data centers, manufacturing plants)

Regulate vehicle entry/exit and prevent property theft or damage.

High-end residential communities & luxury shopping malls

Ensure pedestrian and resident safety by restricting unapproved vehicle access.

Large-scale event venues (stadiums, exhibition centers)

Provide temporary anti-ram protection during concerts, sports games and trade fairs.

Border checkpoints & customs stations

Intercept illegal border-crossing and smuggling vehicles effectively.
