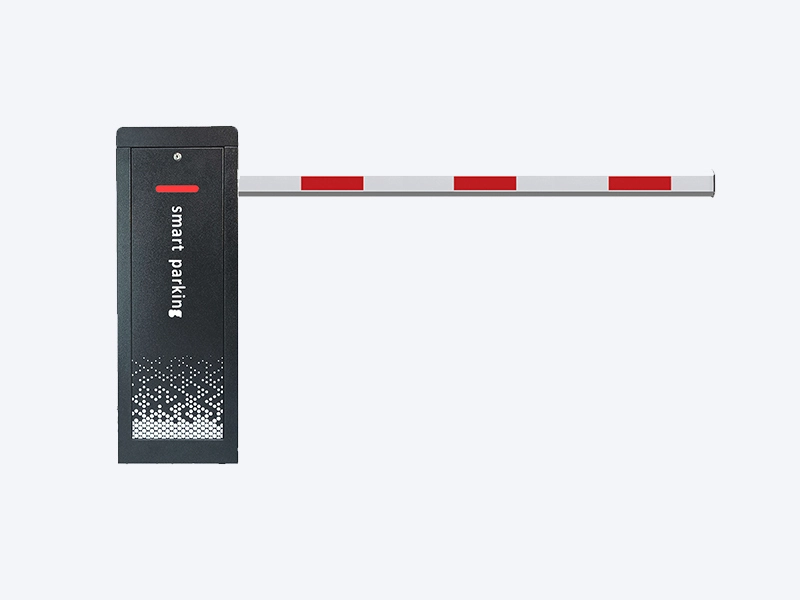

BLS-P04F Vehicle access control barrier gate for public parking lot management 1

BLS-P04F Vehicle access control barrier gate for public parking lot management 2

BLS-P04F Vehicle access control barrier gate for public parking lot management 3

BLS-P04F Vehicle access control barrier gate for public parking lot management 4

BLS-P04F Vehicle access control barrier gate for public parking lot management

Name: BLS-P04F Vehicle access control barrier gate for public parking lot management
Brand: Bolan

Brand:

Brand: BOLAN，Neutral, OEM & ODM Acceptable

Model:

BLS-P04F

MOQ:

1pc

Payment:

T/T before shipping

Delivery time:

One week(Depends on Quantity)

Start Port:

Shenzhen

Certification:

CE, ISO9001

Technology

Diversified Stable Drives

DC brushless, AC induction & servo motors, tailored for small-to-medium and high-end parking lots.

Durable Anti-Corrosion Structure

IP54+ galvanized/powder-coated chassis; aluminum/flexible/folding arms for impact resistance and safety.

Multi-Layer Safety Protection

Ground coils, infrared sensors & pressure wave modules prevent vehicle/pedestrian collisions and crushing.

Intelligent System Compatibility

Integrates with LPR/RFID/fee systems; RS485/Modbus for centralized device monitoring and management.

All-Weather Adaptability

Stable at -30℃ to +60℃; rain/dust/UV resistant for indoor and outdoor applications.

Energy-Saving & Emergency Features

Standby power <10W; backup battery/UPS and manual release for emergency passage during power outages.

Modular Easy Maintenance

Modular components with self-diagnosis and error codes, reducing maintenance time and costs.

Adjustable Operation Parameters

Customizable arm speed (0.8–6s), closing delay and collision sensitivity for varying traffic densities.

Features

● Authorized Access Control: Validate authorized vehicle credentials to permit entry, while denying unapproved vehicles and eliminating illegal parking issues.

● Traffic Order Regulation: Streamline vehicle entry and exit flow to maintain order, mitigating congestion, collisions and arbitrary parking incidents.

● Fee System Integration: Sync with automated payment platforms to activate barrier lifting immediately upon successful transaction completion.

● Vehicle & Pedestrian Safety Protection: Integrate anti-crush and anti-collision sensors to avert accidental vehicle damage and pedestrian injuries during barrier operation.

● Emergency Passage Guarantee: Enable manual or backup-powered barrier release to ensure unobstructed vehicle passage during power failures or emergencies.

● Remote & Automated Operation: Integrate with LPR and RFID systems for automated access control, and support remote monitoring and operation of barrier devices.

Technical Specifications

Parameter Name	Specification & Key Information
Body size	335mm260mm925mm Carbon steel with yellow, black, golden optional
Boom Length	3000mm - 6000mm (customizable for lane width)
Boom Material	Aluminum alloy(round and rectangle, different colors optional)
Opening Speed	1.5 - 6 s (full rotation from closed to open state) 0.3-0.6s(savor motor high speed boom barrier, for highway and high traffic flow)
Closing Speed	3 - 8 s (adjustable to avoid collision)
Driving Mode	Electric motor (AC/DC brushless, planetary savor motor) ; with manual override for emergency
Rated Voltage	AC 110V-240V ± 10% / DC 12V/24V (for small-sized models)
Rated Power	80W - 500W (varies with boom length and model, DC motor: 80W-120W, AC motor 100W-180W, Savor motor 400-500W)
Max Load Capacity	≤ 50kg (boom load; suitable for light-duty vehicle control)
Control System	PLC / Single-chip microcomputer; supports remote control, card swiping & access control, LPR systems etc linkage
IP Rating	IP54 - IP65 (suitable for outdoor use, dust & rain resistant)
Operating Temperature	-20°C to +60°C (adaptable to common outdoor environments)
Safety Device	Infrared photoelectric sensor, ground loop detectors, traffic light optional; auto-reverse when obstacle detected

Structure and Dimensions

The core structure of BOLAN boom barrier consists of four main parts

BLS-P04F Vehicle access control barrier gate for public parking lot management 14

Drive Unit

Core power component, mainly composed of AC/DC brushless motor or planetary savor motor, ensuring stable and efficient boom rotation.

BLS-P04F Vehicle access control barrier gate for public parking lot management 15

Boom Assembly

The horizontal blocking part, made of lightweight aluminum alloy or high-rigidity carbon fiber, with customizable length (3m-6m typical) for different lane widths.

Control

Integrates PLC or single-chip microcomputer control module, power supply unit and wiring terminals, supporting linkage with access control systems.

Base & Frame

Heavy-duty steel coating colors structure fixed to the ground, providing stable support for the entire device and ensuring installation firmness.

Customization & Accessories

Integrate Solutions

★ License Plate Recognition (LPR) system
★ Ground Loop Detector/Infrared Sensor
★ Traffic Light
★ Access Control Management System (ACMS)
★ Video Surveillance System
★ Parking lot management system
★ Toll station payment system
★ Remote Control System (via WiFi/Bluetooth)
★ Exit button

Optional Accessories

★ RFID card reader/ long range bluetooth reader
★ LPR camera
★ QR code scanner
★ Card insert, coin collector, token collector
★ Inner or outer counter and screen
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us for confirmation

Warranty

★ 1 year for electric parts, 2 years for other parts after delivery. More details please feel free to confirm with us.

Operating & Control

Operating ways

• Single-direction single passage (one way for entry/exit, the other locked)
• Bi-direction single passage (entry via access control, exit via button)
• Single-direction free passage (one way unrestricted, the other locked)
• Bi-direction free passage (both entry and exit unrestricted)
• Permanent free/locked mode

Control ways

• Access control and time attendance system: RFID card/wristband, biometric/face recognition, computer with management software can also control directly
• ESD system: ESD tester+RFID card or face recognition or not
• Ticket system: QR code wristband/ticket
• coin/token collector or RFID card insert
• Exit button
• Wireless remote control

Application Scenes

BOLAN parking barriers suit all scenarios requiring vehicle access control and management, enabling authorized entry, traffic streamlining, anti-illegal parking, and improved site security and operational efficiency.

Residential Communities

Manage resident and visitor vehicles, stop unauthorized parking, and safeguard private parking space entitlements.

Commercial Complexes & Office Towers

Streamline vehicle flow, integrate with payment systems, and boost parking resource utilization for shoppers and employees.

Municipal/Roadside Public Parking Lots

Standardize entry-exit procedures, simplify centralized fee collection, and uphold orderly public parking operations.

Industrial Parks & Manufacturing Sites

Separate production zones from external traffic, control freight and private car access, and strengthen on-site safety.

Campuses (Schools & Universities)

Regulate pick-up/drop-off traffic, restrict non-campus vehicles, and ensure campus traffic safety.

Hospitals & Medical Facilities

Prioritize emergency vehicle passage, ease congestion, and manage parking for patients, visitors and medical staff.

Government & Institutional Premises

Tighten security by permitting only authorized official vehicles and authorized visitors.

Transportation Hubs (Airports, Railway Stations)

Guide high-volume passenger vehicles, enable fast entry-exit, and increase parking facility throughput.

Hotels & Resorts

Offer exclusive guest parking management, prevent external vehicle occupation, and upgrade guest experience.

Logistics & Warehousing Centers

Coordinate freight truck access, link with cargo scheduling systems, and ensure smooth logistics workflows.
