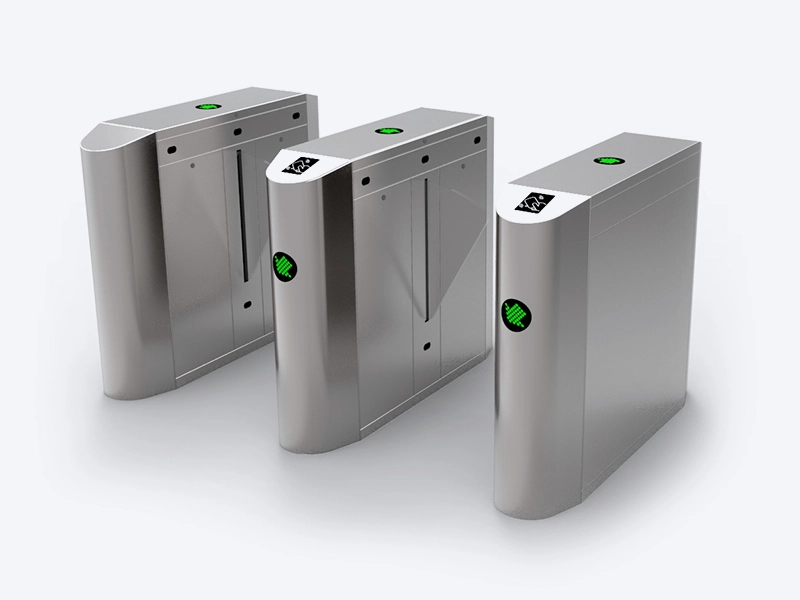

F205 Fastlane flap barrier gate office building entrance access control system 1

F205 Fastlane flap barrier gate office building entrance access control system 2

F205 Fastlane flap barrier gate office building entrance access control system 3

F205 Fastlane flap barrier gate office building entrance access control system 4

F205 Fastlane flap barrier gate office building entrance access control system 5

F205 Fastlane flap barrier gate office building entrance access control system 6

F205 Fastlane flap barrier gate office building entrance access control system 7

F205 Fastlane flap barrier gate office building entrance access control system 8

F205 Fastlane flap barrier gate office building entrance access control system

Name: F205 Fastlane flap barrier gate office building entrance access control system
Brand: Bolan

Brand:

BOLAN，Neutral, OEM & ODM Acceptable

Model:

BLS-F205

MOQ:

1pc

Payment:

T/T before shipping

Delivery time:

One week(Depends on Quantity)

Start Port:

Shenzhen

Certification:

CE, ISO9001

Technology

Ultra heavy-duty high

Speed brushless motor, ensuring stable & low-noise operation.

Built

In intelligent PLC controller, enabling linkage with external access control & custom access logic.

Anti-tailgating & anti

Reverse designs, blocking unauthorized illegal passage.

Auto

Lock mechanism, activates after 30s idle opening (timing parameters adjustable).

Power

Off anti-pinch protection, preventing jamming/entrapment in emergencies.

Integrated detectors + anti-collision buffers

Stop door closing when obstacles detected.

Automatic self-diagnosed

The flap barrier turnstile will self operation one cycle when power on to self-inspection.

Features

1. Dual infrared & mechanical anti-pinch.

2. Precise infrared detection, anti-tailgating/reverse intrusion with audio-visual alarm.

3. Power-off & fire linkage auto-open.

4. 3-color LED indicator(blue, green, red), clear two-way guidance & abnormal alert.

5. 304 stainless steel body, scratch-resistant & impact-proof.

6. Adjustable permission validity (0-99s), auto-reset to prevent abuse.

7. Flexible acrylic flap, collision-resistant & injury-preventive.

8. Multi-scenario alarm, real-time alert for illegal passage/fault.

Technical Specifications

Parameters	Specification
Overall Dimensions	1200(L) × 280mm (W) × 980mm (H) (standard), some special models have different dimensions, also can be customized
Passage Width	600-900mm (adjustable), 900mm with retractable arms for wheelchairs channels or luggage
Material	304/316 stainless steel, carbon steel powdered coating colors
Flap Barrier	Tempered glass/ Acrylic/PC/ABS ,standard 250mm+250mm width, wider for 450mm+450mm
Drive	DC brushless motor + transmission gearbox
Passage Speed	0.5-0.8 seconds per person, generally 30-40persons/ min
Working Voltage	AC 110V/ 220V ±10%, 50Hz/60Hz
Power Consumption	Standby: ≤15W; Operating: ≤60W
Interface	Input: Relay signal Output: Dry contact RS232,RS485, TCP/IP
Operating Temperature	-20℃ to 60℃
Movement Performance	≥5 million cycles; High-end models: ≥7~8 million cycles
Maximum Bearable Current	10A

Structure and Dimensions

BOLAN flap barrier turnstile gate core structure consists of three main parts: the main cabinet(stainless steel machine body, LED indicators on the top and two sides, card reader windows two sides etc), brushless motors mechanism(durable drive motors with transmission, internal bracket, flap barriers), and the control system(PLC controller main board, power supply).

drawing 1 拷贝

drawing 2 拷贝

drawing 3 拷贝

4-1 (3)

4-2

4-3

Customization & Accessories

Customization options

★ Dimension & Layout Tailoring: Full-scale customization is available to perfectly match the on-site spatial layout and meet the unique technical requirements of different projects.
★ Material & Surface Finish Options: Core materials include 304/316 stainless steel (for superior corrosion resistance) and powder-coated carbon steel (with customized colors). Multiple surface textures are supported: brushed, snowflake, mirror-polished, and matte.
★ Branding Integration: Logo can be applied to the cabinet or flap panel via engraving or silk-screen printing. In addition, full customization is offered for reader window size, shape, as well as brand slogans to align with corporate identity.
★ Visual & Functional Accessory Configuration
• LED status indicators: dual-mode design (fixed red cross/green arrow or dynamic flowing light effect)
• Flap panel options: ABS, tempered glass, or acrylic materials; width adjustable within 250–450mm, with optional logo engraving
• Optional adding: audio alarm system and ambient LED lighting (with customized color)
★ Portable Version Alternative: An optional model equipped with a powder-coated carbon steel base is provided for convenient relocation between different sites.
★ Custom Service Consultation: For detailed parameters of customization services, please refer to our dedicated Customization Services page. Direct contact is recommended for special customization needs beyond standard options.

Optional Accessories

★ RFID card reader
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ Inner or outer counter
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us

Warranty

★ Generally 1year for electric parts, 2years for other parts after delivery. More details please feel free to confirm with us.

Operating & Control

Operating ways

① Single-direction authorized (one-way verification, reverse locked)
② Two-way verified (both directions need validation)
③ Single-direction free (one-way unrestricted, reverse locked)
④ Full-access/full-lock (switchable between two-way free & full lockdown)

Control ways

• Access control and time attendance system: RFID card/wristband, biometric/face recognition, computer with management software can also control directly
• Ticket system: QR code wristband/ticket
• coin/token collector or RFID card insert, wristband collector
• ESD tester + RFID card/face recognition(optional)
• Exit button(optional)
• Wireless remote control(optional)
• Manual keys(optional)

Application Scenes

BOLAN flap barrier turnstiles gates are suggested for the sites that demand high efficiency and secure. The main application suggested as follows:

Commercial Office Parks & Grade A Office Buildings

For employee access control (check-in) and visitor appointment verification; differentiates access permissions between internal staff and external visitors, complying with European and American standards for office area security management.

Transport Hubs & Public Transit Stations

Applied in staff passages and paid-area ticket checkpoints of light rail stations, high-speed rail stations, and airport terminals; integrated with ticket verification terminals for rapid passenger flow management, meeting efficient operation norms of public transportation.

Educational & Research Institutions

Deployed at university campus entrances/exits, libraries, and laboratories; controls access of faculty, students, visitors, and external personnel, satisfying Western demands for campus security and hierarchical permission management.

Stadiums & Convention Centers

Serves as ticket verification channels during large-scale events (sports matches, exhibitions); enables quick ticket checking and release, with emergency rapid gate-opening function, aligning with European and American security and emergency management standards for mass gatherings.

Government & Public Service Facilities

Used in town halls, courts, and public libraries; combined with identity verification systems to ensure traceability of personnel entry/exit, meeting compliance requirements for public service venues.

Industrial & Logistics Parks

For access control in production workshops and warehouses; differentiates permissions among employees, visitors, and freight personnel, conforming to Western norms for industrial safety production and area isolation. Also can integrate ESD tester system for some special electronics products workshop.

1 (7)

2 (13)

4 (5)
