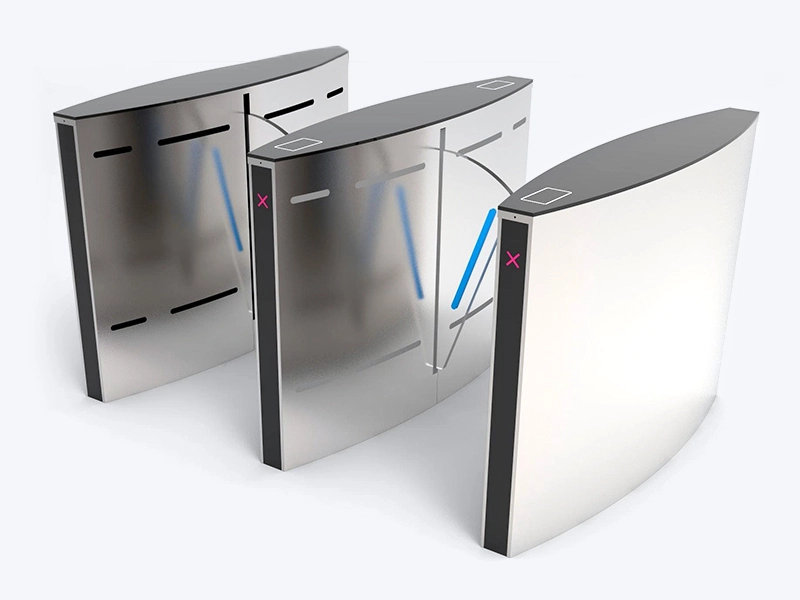

F305 Flap barrier access control system for commercial building entrance fastlane 1

F305 Flap barrier access control system for commercial building entrance fastlane 2

F305 Flap barrier access control system for commercial building entrance fastlane 3

F305 Flap barrier access control system for commercial building entrance fastlane 4

F305 Flap barrier access control system for commercial building entrance fastlane 5

F305 Flap barrier access control system for commercial building entrance fastlane 6

F305 Flap barrier access control system for commercial building entrance fastlane

Name: F305 Flap barrier access control system for commercial building entrance fastlane
Brand: Bolan

Brand:

BOLAN，Neutral, OEM & ODM Acceptable

Model:

BLS-F305

MOQ:

1pc

Payment:

T/T before shipping

Delivery time:

One week(Depends on Quantity)

Start Port:

Shenzhen

Certification:

CE, ISO9001

Technology

Ultra-heavy-duty high-speed drive + transmission

Delivers rock-solid stability and whisper-quiet operation 24/7.

Built-in smart PLC controller

Links effortlessly to external access control systems and supports tailored access rules for any scenario.

Anti-tailgating & anti-reverse design

Blocks unauthorized entry and illegal passage attempts without fail.

Adjustable auto-lock

Activates in 30–90 seconds of waiting time after receiving opening signal, with customizable timing to match your site's needs.

Anti-pinch protection

Prevents jamming or entrapment even in emergency situations.

Integrated detectors + anti-collision buffers

Pauses door closure instantly when obstacles are detected.

Built-in Power-On Self-Test Function

The flap barrier runs auto-diagnostics on key parts when powered on. Normal performance leads to standby status; any malfunction will activate an alert and lock the gate for safety.

Adjustable auto-lock

Activates in 30–90 seconds of waiting time after receiving opening signal, with customizable timing to match your site's needs.

Anti-pinch protection

Prevents jamming or entrapment even in emergency situations.

Integrated detectors + anti-collision buffers

Pauses door closure instantly when obstacles are detected.

Built-in Power-On Self-Test Function

The flap barrier runs auto-diagnostics on key parts when powered on. Normal performance leads to standby status; any malfunction will activate an alert and lock the gate for safety.

Features

● Custom anti-corrosion materials for coastal/chemical environments.

● Optional child safety mode, reduced anti-pinch sensitivity.

● 20~60W low power consumption, extended component life.

● Passed high/low temp, vibration & aging tests, 24h continuous operation.

● Core anti-pinch/anti-tailgating, basic passage safety guaranteed.

● DC brushless motor, ≥7 million cycle life, stable & reliable.

● 304 stainless steel body, durable for conventional environments.

Technical Specifications

Parameters	Specification
Overall Dimensions	1000(L) × 290mm (W) × 1000mm (H) (standard), some special models have different dimensions, also can be customized
Passage Width	600-900mm (adjustable), 900mm with retractable arms for wheelchairs channels or luggage
Material	304/316 stainless steel, carbon steel powdered coating colors
Flap Barrier	Tempered glass Acrylic/PC/ABS ,standard 250mm+250mm width, wider for 450mm+450mm
Drive	DC brushless motor + transmission gearbox
Passage Speed	0.5-0.8 seconds per person, generally 30-40persons/ min
Working Voltage	AC 110V/ 220V ±10%, 50Hz/60Hz
Power Consumption	Standby: ≤15W; Operating: ≤60W
Interface	Input: Relay signal Output: Dry contact RS232,RS485, TCP/IP
Operating Temperature	-20℃ to 60℃
Movement Performance	≥5 million cycles; High-end models: ≥7~8 million cycles
Maximum Bearable Current	10A

Structure and Dimensions

BOLAN flap turnstile gates core structure includes three main parts: the main cabinet(stainless steel machine body, LED indicators on the top and two sides, card reader windows two sides etc), Drives mechanism (durable drive motors with transmission, internal bracket, flap barriers), and the control system(PLC controller main board, power supply).

drawing1 拷贝 (6)

drawing2 拷贝 (6)

drawing3 拷贝 (3)

Customization & Accessories

Customization options

★ Dimensions & Layout: Fully customizable to accommodate on-site spatial constraints and project-specific technical requirements.
★ Materials & Surface Finishes: Diverse selections provided, including 304/316 stainless steel (featuring superior corrosion resistance) and powder-coated carbon steel (supporting custom color matching). Available surface finishes: brushed, snowflake, mirror and matte textures.
★ Branding Customization Options: Logo can be applied via engraving or silk-screen printing on cabinet and flap panels; reader window (size and shape customizable) and brand slogan printing are also supported.
★ Accessory Configurations: LED status indicators (fixed red cross/green arrow or dynamic flowing light effects); adjustable flap gates (width range: 250–450mm, with material options of ABS, tempered glass or acrylic, and optional logo customization); optional audio alarm and custom-color ambient lighting to align with diverse decoration styles.
★ Portable Variant: Optional carbon steel base for moving.
★ Customization Consultation: For detailed parameter specifications of customization, please refer to our official Customization Services page; direct contact is advised for special customization needs that exceed standard configurations.

Optional Accessories

★ RFID card reader
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ Inner or outer counter
★ Remote control, exit button
★ Audio Alarm
★ Any other accessories you need, please feel free to contact us

Warranty

Generally 1year for electric parts, 2years for other parts after delivery. More details please feel free to confirm with us.

Operating & Control

Operating ways

· One-way Authorized Passage: One-way verification mandatory; reverse locked against unauthorized entry.
· Two-way Verified Passage: Validation required for both inbound & outbound directions.
· One-way Free Passage: Unrestricted one-way access; reverse direction locked.
· Full Access/Full Lock Mode: Switchable between two-way free passage and full system lockdown.

Control ways

· Integrated Access Control & Time Attendance System: Supports multi-modal authentication methods including RFID card/wristband, biometric identification and facial recognition; direct system operation is also enabled via a host computer installed with dedicated management software.
· Ticketing Validation System: Compatible with QR code-encoded wristbands and paper tickets for passage authorization.
· Coin/Token Acceptor & RFID Card/Wristband Recycler: Configurable for cash-based payment scenarios and card/wristband recovery needs.
· Exit Push Button (Optional Accessory)
· Wireless Remote Controller (Optional Accessory)
· Manual Override Keys (Optional Accessory)
· Optical sensors

Application Scenes

BOLAN flap gates are ideally suited for venues demanding high throughput efficiency and rigorous access control. Its core application scenarios are recommended as follows:

Commercial Office Parks & Grade A Office Towers

Enables streamlined employee attendance management, visitor identity authentication, and granular access permission differentiation between internal personnel and external visitors.

Transportation Hubs

Deployed in staff-exclusive passageways and paid passenger zones (e.g., light rail stations, high-speed rail terminals, airports), with seamless integration with ticketing systems to ensure fast and orderly passenger flow.

Educational Institutions

Provides reliable access control solutions for campus perimeter entrances, library resource areas, and high-security laboratory facilities.

Stadiums & Convention Centers

Supports efficient event ticket validation and crowd flow management, integrated with an emergency quick-release function to facilitate rapid evacuation when required.

Government & Public Service Facilities

Realizes full-cycle access activity traceability through linkage with identity verification systems, fully complying with the regulatory requirements of public service sectors.

Industrial & Logistics Parks

Delivers precise access authorization management for production workshops and warehousing zones; an optional ESD (Electrostatic Discharge) testing module is available for electronics workshops to meet electrostatic protection standards.
