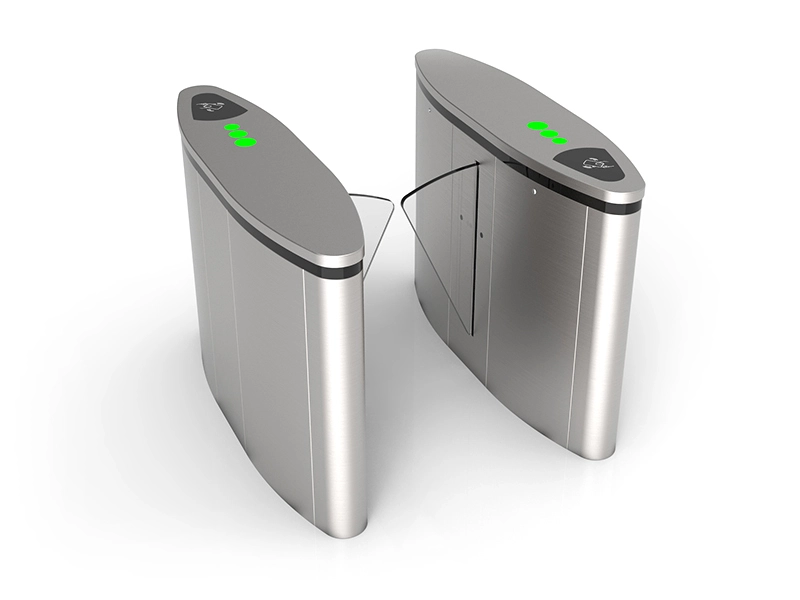

F306 flap barrier fast gates for high speed entrance security access control 1

F306 flap barrier fast gates for high speed entrance security access control 2

F306 flap barrier fast gates for high speed entrance security access control 3

F306 flap barrier fast gates for high speed entrance security access control 4

F306 flap barrier fast gates for high speed entrance security access control 5

F306 flap barrier fast gates for high speed entrance security access control

Name: F306 flap barrier fast gates for high speed entrance security access control
Uploaded: 2026-02-02T16:07:04+08:00
Description: BOLAN flap turnstile gates core structure includes three main parts: the main cabinet(stainless steel machine body, LED indicators on the top and two sides, card reader windows two sides etc), Drives mechanism (durable drive motors with transmission, internal bracket, flap barriers), and the control system(PLC controller main board, power supply).

Brand:

BOLAN，Neutral, OEM & ODM Acceptable

Model:

BLS-F306

MOQ:

1pc

Payment:

T/T before shipping

Delivery time:

One week(Depends on Quantity)

Start Port:

Shenzhen

Certification:

CE, ISO9001

Technology

Ultra-robust high-speed drive & precision gearbox

24/7 steady performance with whisper-silent operation.

Embedded intelligent PLC controller

Plug-and-play access control linkage, supports scenario-specific access rule customization.

Foolproof anti-tailgating & reverse-entry safeguards

Blocks all unauthorized/illegal passage attempts effectively.

Adjustable auto-lock function

Triggers after 30–90s of idle opening; timing parameters fully site-adaptive.

Enhanced anti-pinch protection

Eliminates clamping and entrapment risks during emergency situations.

Integrated obstacle detectors & anti-collision dampers

Instant door-closure pause when obstructions are detected.

Automatically verifies critical components

(drive unit, sensors, control system) on startup; shifts to standby mode if valid, or triggers alarm and keeps flaps locked if faults are found.

Features

● Simple installation/maintenance, low later cost

● Energy-saving design, reduced long-term use cost

● Compact structure, small footprint for limited spaces

● Standardized production, stable quality & high cost-effectiveness

● DC brushless motor, ≥7 million cycle life, stable & reliable

● Reinforced transmission gearbox, stable operation without shaking

● Clear fault codes for quick problem position

● Wider lane optional for wheelchairs/luggage carts

Technical Specifications

Parameters	Specification
Overall Dimensions	1000(L) × 290mm (W) × 1000mm (H) (standard), some special models have different dimensions, also can be customized
Passage Width	600-900mm (adjustable), 900mm with retractable arms for wheelchairs channels or luggage
Material	304/316 stainless steel, carbon steel powdered coating colors
Flap Barrier	Tempered glass Acrylic/PC/ABS ,standard 250mm+250mm width, wider for 450mm+450mm
Drive	DC brushless motor + transmission gearbox
Passage Speed	0.5-0.8 seconds per person, generally 30-40persons/ min
Working Voltage	AC 110V/ 220V ±10%, 50Hz/60Hz
Power Consumption	Standby: ≤15W; Operating: ≤60W
Interface	Input: Relay signal Output: Dry contact RS232,RS485, TCP/IP
Operating Temperature	-20℃ to 60℃
Movement Performance	≥5 million cycles; High-end models: ≥7~8 million cycles
Maximum Bearable Current	10A

Structure and Dimensions

BOLAN flap turnstile gates core structure includes three main parts: the main cabinet(stainless steel machine body, LED indicators on the top and two sides, card reader windows two sides etc), Drives mechanism (durable drive motors with transmission, internal bracket, flap barriers), and the control system(PLC controller main board, power supply).

drawing1 拷贝 (6)

drawing2 拷贝 (6)

drawing3 拷贝 (3)

Customization & Accessories

Customization options

★ Dimensions & Layout: Fully tailored to fit on-site spatial limitations and project-specific technical specifications.
★ Materials & Surface Finishes: Multiple options available – 304/316 stainless steel (superior corrosion resistance) and powder-coated carbon steel (custom color support). Surface finishes: brushed, snowflake, mirror, matte.
★ Branding Customization: Logo engraving or silk-screen printing on cabinets and flap panels; customizable reader window (size/shape) and brand slogan printing supported.
★ Accessory Options: LED status indicators (fixed red cross/green arrow or dynamic flowing light); adjustable flap gates (250–450mm width, with ABS/tempered glass/acrylic material choices and optional logo customization); optional audio alarm and custom-color ambient lighting for style matching.
★ Portable Model: Optional carbon steel base for convenient on-site repositioning.
★ Customization Consultation: Refer to our Customization Services page for detailed specs; contact us directly for non-standard customization requirements.

Optional Accessories

★ RFID card reader
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ Inner or outer counter
★ Remote control, exit button
★ Audio Alarm
★ Any other accessories you need, please feel free to contact us

Warranty

Generally 1year for electric parts, 2years for other parts after delivery. More details please feel free to confirm with us.

Operating & Control

Operating ways

· One-way Authorized Passage: Authorization verification required for the designated direction; reverse passage permanently locked to avert unauthorized intrusion.
· Two-way Verified Passage: Bidirectional identity validation mandatory for both entry and exit access.
· One-way Free Passage: Unrestricted flow permitted in a single direction; reverse channel locked to prohibit unauthorized entry.
· Full Access/Full Lock Mode: Dual-mode switchable function, supporting seamless toggling between two-way free passage and full-system lockdown as operational needs dictate.

Control ways

· Integrated Access Control & Time Attendance: Multi-modal authentication (RFID card/wristband, biometrics, facial recognition); direct control via host computer with management software.
· Ticketing Validation: Supports QR code wristbands & paper tickets for passage approval.
· Coin/Token Acceptor & RFID Card/Wristband Recycler: For cash payment & card/wristband recovery scenarios.
· Exit Push Button (Optional)
· Wireless Remote Controller (Optional)
· Manual Override Keys (Optional)
· Optical sensors

Application Scenes

BOLAN flap barrier turnstiles excel in high-throughput, high-security access control scenarios. Key applications include:

Commercial Office Parks & Grade A Towers

Streamlines employee attendance, visitor authentication, and internal-external access permission segregation.

Transportation Hubs

Deployed in staff passages and paid zones (light rail, high-speed rail, airports); integrates with ticketing systems for fast, orderly passenger flow.

Educational Institutions

Reliable access control for campus entrances, libraries, and high-security labs.

Stadiums & Convention Centers

Supports event ticket validation and crowd management; equipped with emergency quick-release for rapid evacuation.

Government & Public Service Facilities

Enables access traceability via identity verification integration, meeting public service regulatory requirements.

Industrial & Logistics Parks

Precise access management for workshops/warehouses; optional ESD tester available for electronics workshops.

1 (7)

2 (13)

4 (5)
