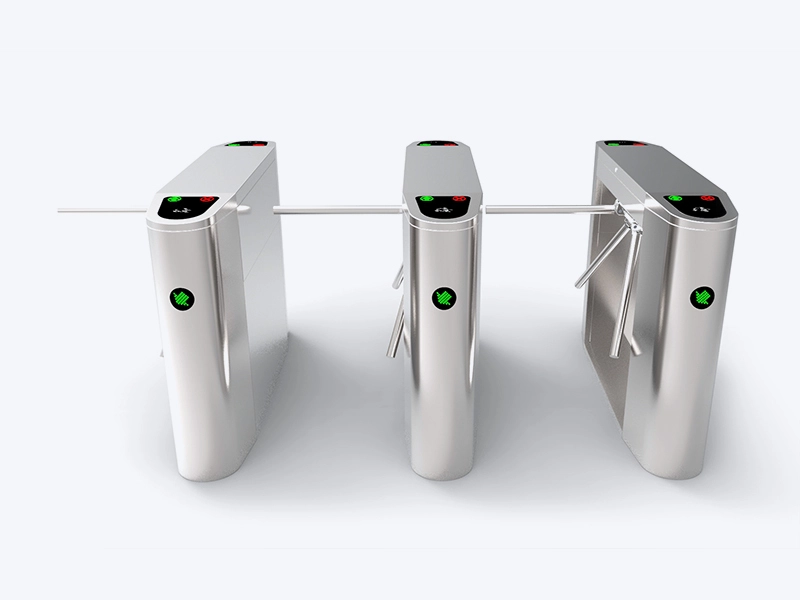

Bidirectional Tripod Turnstile Anti Tailgating Entrance Access control BLS-T401 1

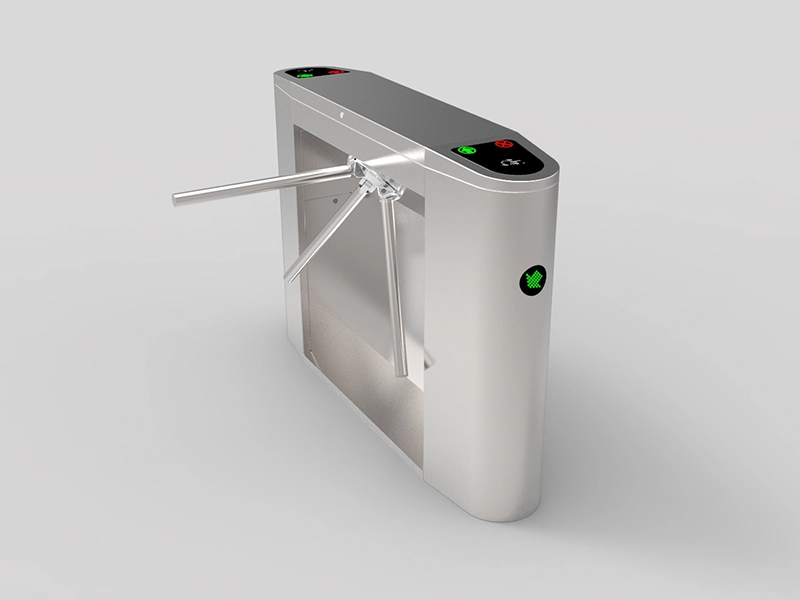

Bidirectional Tripod Turnstile Anti Tailgating Entrance Access control BLS-T401 2

Bidirectional Tripod Turnstile Anti Tailgating Entrance Access control BLS-T401 3

Bidirectional Tripod Turnstile Anti Tailgating Entrance Access control BLS-T401 4

Bidirectional Tripod Turnstile Anti Tailgating Entrance Access control BLS-T401 5

Bidirectional Tripod Turnstile Anti Tailgating Entrance Access control BLS-T401 6

Bidirectional Tripod Turnstile Anti Tailgating Entrance Access control BLS-T401 7

Bidirectional Tripod Turnstile Anti Tailgating Entrance Access control BLS-T401

Name: Bidirectional Tripod Turnstile Anti Tailgating Entrance Access control BLS-T401
Brand: Bolan

Brand:

BOLAN，Neutral, OEM & ODM Acceptable

Model:

BLS-T401

MOQ:

1pc

Payment:

T/T before shipping

Delivery time:

One week(Depends on Quantity)

Start Port:

Shenzhen

Certification:

CE, ISO9001

Technology

Self-centering rotor drive system

the turnstile rotor bounces back to its original starting position after every rotation

Smart lock automatically locks

Self-locking in 30s(time adjustable) if receiving opening signal but nobody passing

Anti-pinch safety mechanism

avoids rotor locking or pedestrian entrapment mid-rotation during power disruption

Secure 60º anti-reverse system

eliminates pedestrian reverse passing through

Mechanism with hydraulic shock absorb

operating more stable and without noise

Features

1. High reliability and long lifetime: MTBF (Mean Time Between Failures) of over 1000,000 hours.

2. Excellent anti-tailgating performance, only one person can pass through.

3. Bi-direction or single direction optional, clear LED indicators.

4. Protective Structure for All Installation Scenes, Strong environmental adaptability.

5.Easy installation & maintenance, modular desgin helps to replace fualt parts easily.

6. Equipped with power-failure auto-unlock for emergency.

7.With LED indicator on top and two sides, clearly show the passing or not status.

8. Generous interior space in the cabinet to allow a large variety of mounting positions for other integrated system parts.

Technical Specifications

Parameter Category	Specific Specifications
Dimensions	Bridge: 1200mm (length) × 280mm (width) × 980mm (height); Vertical: 420mm (length) × 330mm (width) × 980mm (height) Customized size available for special installation environments and design
Passage Width	550-650mm (suitable for single adult pedestrian passage)
Material	Cabinet: 304 stainless steel/ Carbon steel with powder coating, colors optional (optional 316 stainless steel for corrosive environments);
Material	Tripod arms: 38mm diameter 304 stainless steel pipe
Working Voltage	AC 220V ± 10%, 50Hz
Drive Voltage	AC12V+AC18V
Working Current	Static current: ≤ 800mA;
Working Current	Operating current: ≤ 2000mA
Operating Temperature	-30℃ to 70℃ (normal operation under low-temperature and high-temperature environments with proper protection)
Relative Humidity	≤ 95% (non-condensing)
Passage Speed	20-30 persons per minute (under normal access control verification conditions)
Protection Level	IP54 (standard); IP65 available for outdoor or dusty environments
Power Failure Handling	Automatic drop-arm (unlocked) to ensure pedestrian pass; manual lift-arm when power on(Semi-automatic tripod turnstile); automatic lift-arm when power on(full automatic tripod turnstile)
Verification Interface	Standard: Dry Contact Interface(compatible with most of access control devices on the market) ;

Structure and Dimensions

The core structure consists of three main parts: the main cabinet, the tripod mechanism (machine core, arm plate and three rotation arms), and the control system(control main board, power supply).

Dimension drawing1 (1) 拷贝

Dimension drawing1 (2) 拷贝

Dimension drawing1 (3) 拷贝

Customization & Accessories

Customization options

★ Customized different design, different dimensions as your sites and requirements
★ Different material, different surface finishes(304 or 316 stainless steel, carbon steel powdered coating colors, brushed or snowflake, mirror surface or matte etc, some models can accept aluminum anodized optional colors)
★ LOGO added by stainless steel plate, silk-print etc
★ LED indicators (fixed red X and green arrow or flowing red and green arrows)
★ Reader windows shape，size, adding logo and slogan optional
★ Full welding arms(stainless steel lock head) or press-formed arms(aluminum lock head)
★ Arm sleeves adding optional(different colors)
★ Sound alarm adding optional
★ Add carbon steel plate for portable and removable requirements
★ More details please check our customized service page. Any other customized requirements, please feel free to contact us for confirmation

Optional Accessories

★ RFID card reader
★ Fingerprint reader, face recognition
★ QR code scanner
★ ESD tester
★ Temperature tester
★ Card insert, coin collector, token collector
★ Inner or outer counter
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us for confirmation

Warranty

★ 1year for electric parts, 2years for other parts after delivery. More details please feel free to confirm with us.

Operating & Control

Operating ways

• Single-direction single passage (one way for entry/exit, the other locked)
• Bi-direction single passage (entry via access control, exit via button)
• Single-direction free passage (one way unrestricted, the other locked)
• Bi-direction free passage (both entry and exit unrestricted)
• Permanent free/locked mode

Control ways

• Access control and time attendance system: RFID card/wristband, biometric/face recognition, computer with management software can also control directly
• ESD system: ESD tester+RFID card or face recognition or not
• Ticket system: QR code wristband/ticket
• coin/token collector or RFID card insert
• Exit button
• Wireless remote control

Application Scenes

Scenic spots

Cooperate with ticketing systems to manage tourist access.

Paid public toilets (downtown, stations)

Cooperate with payment systems to control single-person access

Community green spaces/gardens

Limit access to registered residents via RFID cards.

Amateur sports venues/clubs/gyms

Manage members/visitors with membership card systems.

Temporary events (markets/fairs)

Portable access control, support ticket scanning/free passage.

Retail stores

Separate staff/customer flow, block warehouse/office access.

Office buildings

Manage staff and visitor access, meet basic security needs.

Commercial plazas

Regulate pedestrian flow in public areas, balance convenience and security.

Campuses

Control entry and exit of teachers, students and external personnel.

Residential districts

Prevent unauthorized entry, ensure community safety.

Subway station public areas

Guide passenger flow, assist in orderly entry and exit.
