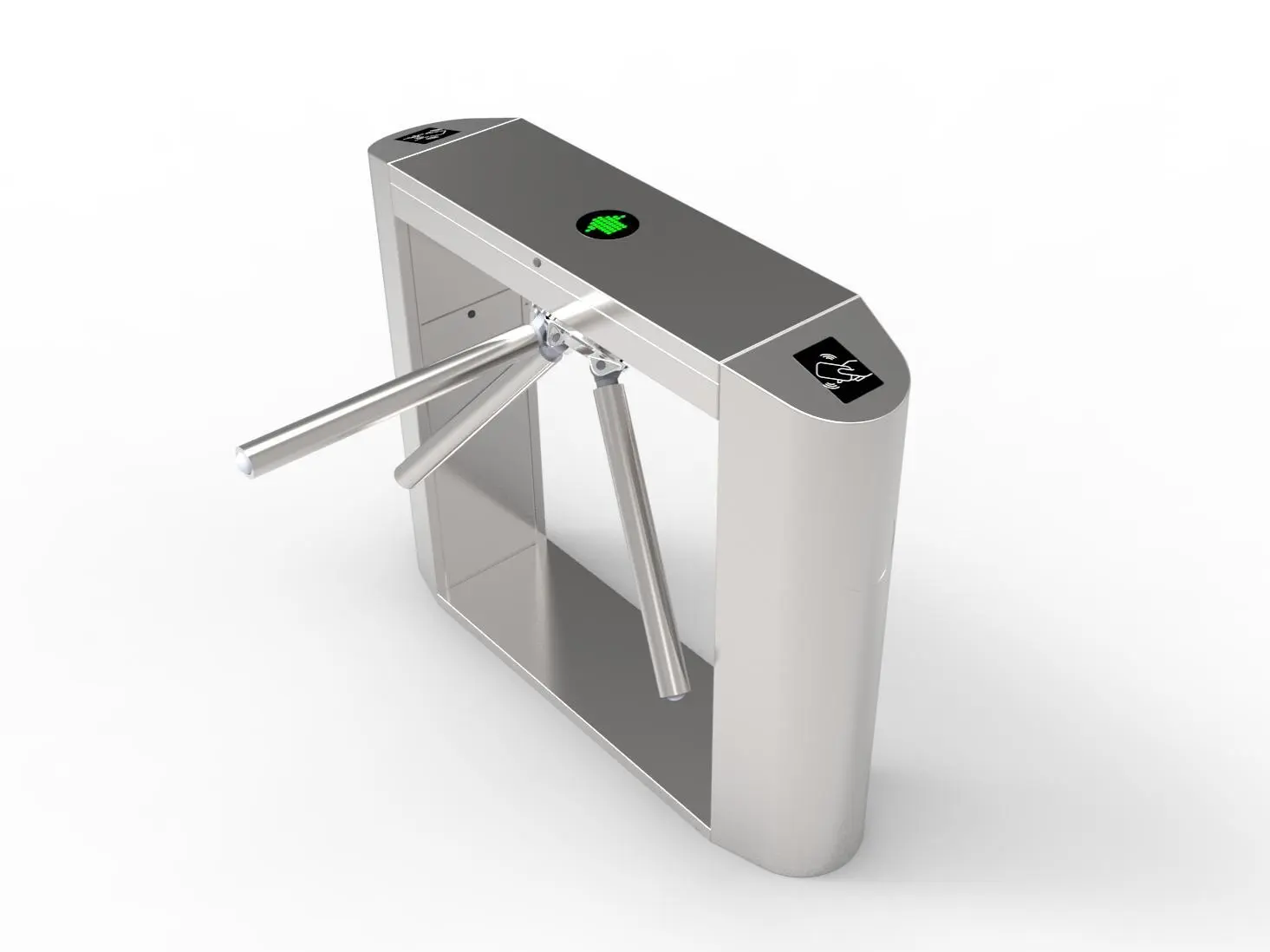

Durable 304 Stainless Steel Tripod Access Gate Turnstile BLS-T301
●Self-centering rotor drive
Auto-returns to original position after each rotation
●Adjustable time auto-lock Reset
Triggers if no passage follows the opening signal
●Power-off anti-pinch mechanism
Stops mid-rotation jamming or pedestrian trapping
●60° anti-reverse system
Prohibits unauthorized reverse passage
●Hydraulic shock-absorbing mechanism
Enables quiet, steady operation
Features
● Bridge type with arc design ensure safety and stability
● Excellent anti-tailgating performance, only one person can pass through in one time
● Bi-direction or single direction optional, clear LED indicators on top
● Waterproof and dustproof, installed indoor or outdoor
● Easy installation & maintenance, modular desgin helps to replace fualt parts easily
● Power failure and emergency will arm drop automatically
● Mechanism with hydraulic buffer for shocking absorb, hydraulic damper to ensure operation smooth & quite
● LED indicators for clear passage guidance
● 24/7 lifetime technical support
Technical Specifications
| Parameters | Specification |
| Material |
Cabinet: 304 stainless steel/ 316 stainless steel for corrosive environments; Carbon steel with powder coating, colors optional |
| Tripod arms: 38mm diameter 304 stainless steel pipe, add safety sleeves optional, 500mm length | |
| Dimensions | Standard:1200mm (length) × 280mm (width) × 980mm (height); Customized acceptable |
| Power Failure Handling |
Automatic drop-arm (unlocked) to ensure pedestrian pass; manual lift-arm when power on(Semi-automatic tripod turnstile); automatic lift-arm when power on(full automatic tripod turnstile) |
| Operating Direction | Single or bi-direction optional |
| Passage Width | 550-650mm (suitable for single adult pedestrian passage) |
| Speed Performance | 20-30 persons per minute (under normal access control verification conditions) |
| Power Supply | AC 100-240V (universal voltage); |
| Control voltage: DC 24V | |
| Working Current | Static current: ≤ 800mA; |
| Operating current: ≤ 2000mA | |
| Interface | Input：relay signal; output: dry contact RS232, RS485 |
| Environmental Resistance | IP54/IP65 rating; |
| Operating temp: -25℃ to 65℃; | |
| Usage | Indoor or outdoor |
Structure and Dimensions
Bolan Tripod Turnstile Gate is modular design enable easy installation, maintenance and transportation. The core structure consists of three main parts: the bridge cabinet(bridge type machine body, LED indicators on the top or two sides, card reader windows two sides etc), the tripod mechanism（machine core, arm plate and three rotation arms）, and the control system(control main board, power supply).
Customization & Accessories
★ Custom design & dimensions per site requirements
★ Material/finish choices: 304/316 stainless steel, powder-coated carbon steel, anodized aluminum; brushed, snowflake, mirror or matte surfaces
★ Logo customization: stainless steel plate or silk-printing
★ LED indicators: fixed red X/green arrow or dynamic flowing lights
★ Custom reader window shape & size, adding logo and slogan optional
★ Two arm options: full-welded (stainless steel lock) or press-formed (aluminum lock)
★ Optional colored arm sleeves & sound alarm
★ Portable version with carbon steel base for easy relocation
★ See customization page for details; contact us for special requests
★ RFID card reader
★ Fingerprint reader, face recognition
★ QR code scanner
★ ESD tester
★ Temperature tester
★ Card insert, coin collector, token collector
★ Inner or outer counter
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us for confirmation
Operating & Control
• Unidirectional single-lane access (entry or exit only)
• Bidirectional single-lane access (both entry and exit available)
• Unidirectional unrestricted passage (free entry or exit one way)
• Bidirectional unrestricted passage (free entry and exit both ways)
• Permanent free-flow or locked status
Control ways
• Access control and time attendance system: RFID card/wristband, biometric/face recognition, computer with management software can also control directly
• ESD system: ESD tester+RFID card or face recognition or not
• Ticket system: QR code wristband/ticket
• coin/token collector or RFID card insert
• Exit button
• Wireless remote control
• Manual override keys(optional)
•Any other control system or solutions please confirm with usApplication Scenes
