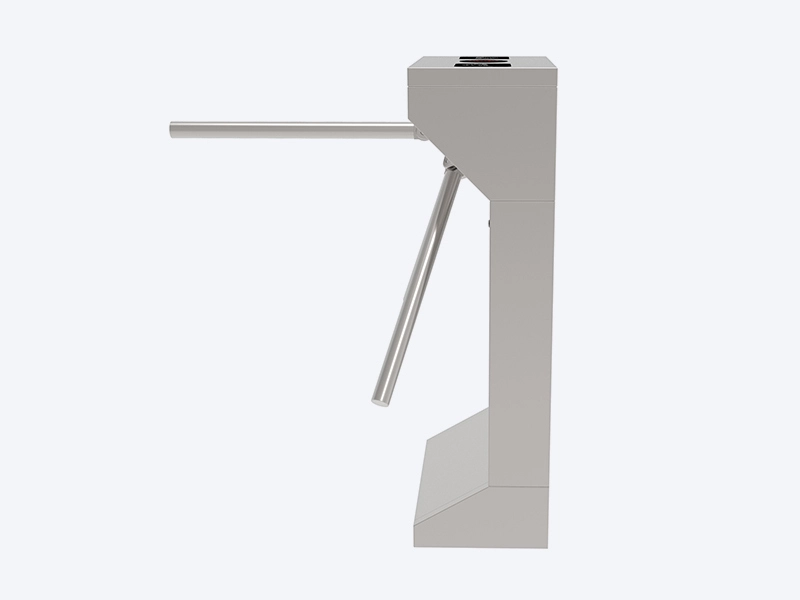

BLS-T201 Vertical Portable Turnstile Tripod Gate Access Control System
5.0
Brand:
BOLAN，Neutral, OEM & ODM Acceptable
Model:
BLS-T201
MOQ:
1pc
Payment:
T/T before shipping
Delivery time:
One week(Depends on Quantity)
Start Port:
Shenzhen
Certification:
CE, ISO9001
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technology
Self-centering rotor drive
auto-resets to original position after each rotation
30s adjustable auto-lock
activates if no passage after gate opening
Power-off anti-pinch mechanism
avoids mid-rotation jamming or pedestrian trapping
60° anti-reverse system
blocks unauthorized reverse passage
Hydraulic shock-absorbing mechanism
ensures quiet, stable operation
Features
1. Durable and long lifespan.
2. Excellent anti-tailgating performance, only one person can pass through.
3. Bi-direction or single direction optional, top LED indicators.
4. Waterproof and dust-proof protective structure.
5.Small size and modular design make installation and maintenance easily.
6.power-failure and emergency will arm dop automatically.
7. Vertical type and small size make it more flexible of the installation environment.
8. Mechanism with hydraulic buffer for shocking absorb, hydraulic damper to ensure operation smooth & quite.
Technical Specifications
| Parameter Category | Specific Specifications |
| Dimensions | Standard: 420mm (length) × 330mm (width) × 980mm (height); Customized size available for special installation environments and design |
| Passage Width | 550-650mm (suitable for single adult pedestrian passage) |
| Material | Cabinet: 304 stainless steel/ Carbon steel with powder coating, colors optional (optional 316 stainless steel for corrosive environments); |
| Tripod arms: 38mm diameter 304 stainless steel pipe, add safety sleeves optional, 500mm length | |
| Surface finish | Brushed stainless steel or carbon steel coating |
| Working Voltage | AC 110V-240V ± 10%, 50Hz |
| Drive Voltage | DC12V+DC18V |
| Working Current | Static current: ≤ 800mA; |
| Operating current: ≤ 2000mA | |
| Operating Temperature | -20℃ to 60℃ (normal operation under low-temperature and high-temperature environments with proper protection) |
| Relative Humidity | ≤ 95% (non-condensing) |
| Passage Speed | 20-30 persons per minute (under normal access control verification conditions) |
| Operating Direction | Single or bi-direction |
| Protection Level | IP54 standard; IP65 available for outdoor or dusty environments |
| Usage | Indoor and Outdoor |
| Power Failure Handling | Automatic drop-arm (unlocked) to ensure pedestrian pass; manual lift-arm when power on(Semi-automatic tripod turnstile); automatic lift-arm when power on(full automatic tripod turnstile) |
| Verification Interface | Standard: Relay Signal/ Dry Contact Interface(compatible with most of access control devices on the market) |
Structure and Dimensions
The core structure consists of three main parts: the small vertical cabinet(vertical type machine body, LED indicators on the top, card reader windows two sides etc), the tripod mechanism（machine core, arm plate and three rotation arms）, and the control system(control main board, power supply).
drawing1 拷贝
drawing2 拷贝
T201 dimension drawing 拷贝
Customization & Accessories
Customization options
★ Custom design & dimensions tailored to site requirements
★ Versatile materials/finishes: 304/316 stainless steel, powder-coated carbon steel; brushed, snowflake, mirror or matte surfaces; optional anodized aluminum for specific models
★ Logo customization via stainless steel plate or silk-printing
★ LED indicators: fixed red X/green arrow or dynamic flowing arrows
★ Reader window customization (shape, size, position) with optional logo/slogan
★ Two arm types: full-welded (stainless steel lock head) or press-formed (aluminum lock head)
★ Optional colored arm sleeves
★ Optional sound alarm function
★ Portable version with carbon steel plate for easy relocation
★ For more details, refer to our customization page; contact us for special requests
★ Versatile materials/finishes: 304/316 stainless steel, powder-coated carbon steel; brushed, snowflake, mirror or matte surfaces; optional anodized aluminum for specific models
★ Logo customization via stainless steel plate or silk-printing
★ LED indicators: fixed red X/green arrow or dynamic flowing arrows
★ Reader window customization (shape, size, position) with optional logo/slogan
★ Two arm types: full-welded (stainless steel lock head) or press-formed (aluminum lock head)
★ Optional colored arm sleeves
★ Optional sound alarm function
★ Portable version with carbon steel plate for easy relocation
★ For more details, refer to our customization page; contact us for special requests
Optional Accessories
★ RFID card reader
★ Fingerprint reader, face recognition
★ QR code scanner
★ ESD tester+face recognition(optional)
★ Temperature tester
★ Card insert, coin collector, token collector
★ Inner or outer counter
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us for confirmation
★ Fingerprint reader, face recognition
★ QR code scanner
★ ESD tester+face recognition(optional)
★ Temperature tester
★ Card insert, coin collector, token collector
★ Inner or outer counter
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us for confirmation
Warranty
★ 1year for electric parts, 2years for other parts after delivery. More details please feel free to confirm with us.
Operating & Control
Operating ways
• Single direction single passage for entry or exit
• Bi-direction single passage for entry and exit
• Free passage in single direction for entry or exit
• Free passage in bi-direction for entry and exit
• Always free or locked
• Bi-direction single passage for entry and exit
• Free passage in single direction for entry or exit
• Free passage in bi-direction for entry and exit
• Always free or locked
Control ways
• Access control and time attendance system: RFID card/wristband, biometric/face recognition, computer with management software can also control directly
• ESD system: ESD tester+RFID card or face recognition or not
• Ticket system: QR code wristband/ticket
• coin/token collector or RFID card insert
• Exit button
• Wireless remote control
• ESD system: ESD tester+RFID card or face recognition or not
• Ticket system: QR code wristband/ticket
• coin/token collector or RFID card insert
• Exit button
• Wireless remote control
Application Scenes
1
Office buildings
Control staff/visitor access, basic security
2
Commercial plazas
Regulate public flow, balance convenience & security
3
Campuses
Manage entry/exit of faculty, students & external personnel
4
Residential districts
Block unauthorized entry, ensure community safety
5
Subway public areas
Guide passenger flow, maintain orderly access
6
Scenic spots
Sync with ticketing systems to manage tourist entry
1
Paid public toilets
Link to payment systems, single-person access control
2
Community green spaces
Restrict to registered residents via RFID cards
3
Sports venues/clubs/gyms
Manage members/visitors with membership cards
4
Temporary events
Portable access control, support ticket scanning/free flow
5
Retail stores
Separate staff/customer flow, block warehouse/office access
1 (7)
