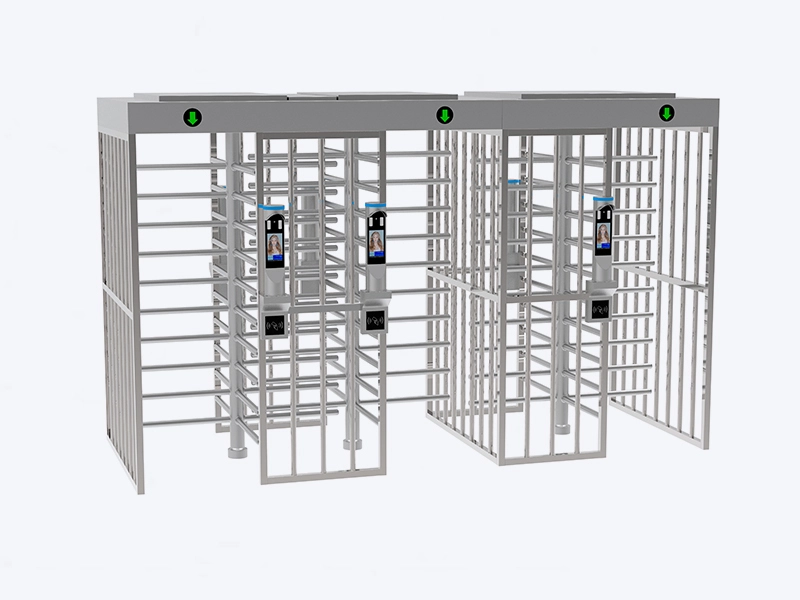

BLS-FH56T Full height turnstile gate double entrance access security 1

BLS-FH56T Full height turnstile gate double entrance access security 2

BLS-FH56T Full height turnstile gate double entrance access security 3

BLS-FH56T Full height turnstile gate double entrance access security 4

BLS-FH56T Full height turnstile gate double entrance access security 5

BLS-FH56T Full height turnstile gate double entrance access security 6

BLS-FH56T Full height turnstile gate double entrance access security

Name: BLS-FH56T Full height turnstile gate double entrance access security
Brand: Bolan

Brand:

BOLAN，Neutral, OEM & ODM Acceptable

Model:

BLS-FH56D

MOQ:

1pc

Payment:

T/T before shipping

Delivery time:

One week(Depends on Quantity)

Start Port:

Shenzhen

Certification:

CE, ISO9001

Technology

Auto-reset rotor mechanism

Rotor goes back to its starting position automatically after each rotation.

Auto-lock function

Locks itself in 30 seconds (default time, fully adjustable) if the gate opens but no one passes through.

Anti-pinch safety feature

Prevents rotor jamming or people getting trapped mid-rotation during sudden power cuts.

Anti-reverse system

Stops people from passing through in the wrong direction.

Hydraulic shock absorption mechanism

Runs steadily and silently.

Permanently lubricated bearings

Operates smoothly and requires minimal maintenance.

Manual key unlock

For emergencies and special needs (works for both directions).

Features

1. Strict access control with reliable anti-tailgating and anti-climbing function.

2. Compact and regular footprint fits limited installation spaces and ensure neat.

3. Easy integration with various access control devices(card reader, qr code scanner, face recognition).

4.Durable stainless steel structre requires minimal maintenance.

5.Suitable for both indoor and outdoor applications.

6.Emergency release for manual operation during power off and emergency.

7. LED indicators and audible alarms provide clear passing instruction .

8. Double entrance for bi-directional, multi entrance are customization acceptable.

Technical Specifications

Parameter Items	Specifications
Material	304 stainless steel or carbon steel/201 stainless steel powdered coating colors (colors optional, anti-rust, anti-corrosion) 316 stainless steel optional
Overall Dimensions	2300mm (length) × 1450mm (width) × 2300mm (height)
Passage Width	Double entrance 650mm (customized according to needs)
Arm Dimensions	Three arms or four arms, 600mm Length(can be added), 38mm diameter
Rotating angles	90 or 120 degrees
Passage Speed	40-60 persons per minute
Working Voltage	AC110V/ 220V ± 10%, 50Hz
Drive Voltage	DC12V+DC18V
Operating Power	≤ 60W (energy-saving)
Working Current	<= 2000mA
Input signal	12V DC level or 12V pulse > 100ms
Interface	Input: Relay signal Output: Dry contact compatible with most of access control devices on the market RS485, TCP/IP
Protection Level	IP54 (suitable for indoor and outdoor use) IP68(suitable for harsh environment)
Working Temperature	-20℃ ~ 60℃ (adapts to various climates)
Power Failure Handling	Automatic unlock to ensure pedestrian pass;automatic lock when power on. If for special sites, we also can change it.(prison, government institution etc high security requirement sites)

Structure and Dimensions

The core structure consists of three main parts: the top housing(including the mechanism, main board, power supply), two sides of fence(make the passing channel enclosed) and one middle fence, 2sests of the rotation system(rotor shaft with three or four arms, base bearings)

FH56D dimension drawing 拷贝

drawing2 拷贝 (4)

drawing1 拷贝 (4)

Customization & Accessories

Customization options

★ Custom design & dimensions – tailored to on-site layout, decoration style and project specs.
★ Material & finish options – 304/316 stainless steel, powder-coated carbon steel (custom colors); brushed/snowflake/mirror/matte surfaces; anodized aluminum for select models.
★ Logo customization – stainless steel nameplate or silk-screen printing.
★ LED indicator choices – fixed red "X"/green arrow or dynamic flowing red-green lights.
★ Reader window customization – adjustable size/shape, plus logo/slogan printing.
★ Rotor structure options – 3/4 arms; straight/U-type pipes; stainless steel/acrylic panels.
★ Arm casing options – full stainless steel welded casing or PVC black protective casing.
★ Optional audio alarm – add-on security warning module on demand.
★ Portable/removable solution – optional welded carbon steel base for temporary/mobile setups.
★ See our Customization Services page for full specs. Contact our tech team to confirm any extra custom needs

Optional Accessories

★ RFID card reader
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector
★ Inner or outer counter
★ RF remote control, push button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us

Warranty

1year for electric parts, 2years for other parts after delivery. More details please feel free to confirm with us.

Operating & Control

Operating ways

• Independent Dual-channel Operation: Each of the two passages can be set separately to any single-lane mode: one-way controlled access (opposite locked), two-way controlled access, one-way free access (opposite locked), or permanent free/locked state, to meet differentiated traffic management needs.
• Coordinated Dual-channel Operation: The two passages work in a same or opposite way:
• One passage for authorized entry, the other for authorized exit (two-way one-pass control).
• Both passages set to two-way controlled access for peak-hour traffic diversion.
• Both passages synchronized to permanent free/locked state for unified site access control.

Control ways

• Access control and time attendance system: RFID card/wristband, biometric/face recognition, computer with management software can also control directly
• Ticket system: QR code wristband/ticket
• coin/token collector or RFID card insert
• Exit button
• Wireless remote control
• Manual keys

Application Scenes

Large Industrial Park Main Entrances

Handles two-way peak-hour staff flow efficiently during morning check-in and evening check-out.

Transport Hub Restricted Zones

Manages bidirectional access for ground crew and maintenance teams in airports, railway stations and metro depots.

Large-scale Logistics Warehouses

Controls two-way movement of warehouse staff and loading personnel, preventing unauthorized entry into goods storage areas.

Stadium & Exhibition Center Staff Channels

Facilitates orderly two-way personnel flow during large events, concerts and trade shows.

University Research Building Entrances

Regulates bidirectional access for authorized faculty, students and researchers, blocking non-permitted personnel.

Data Center & Financial Institution Auxiliary Gates

Supports round-the-clock two-way passage for technical maintenance and security patrol teams.

Mining & Construction Site Central Gates

Manages two-way entry and exit of construction workers and equipment operators, ensuring site security.

FH57 (4) 拷贝

FH57 (9) 拷贝

FH57 (5) 拷贝
