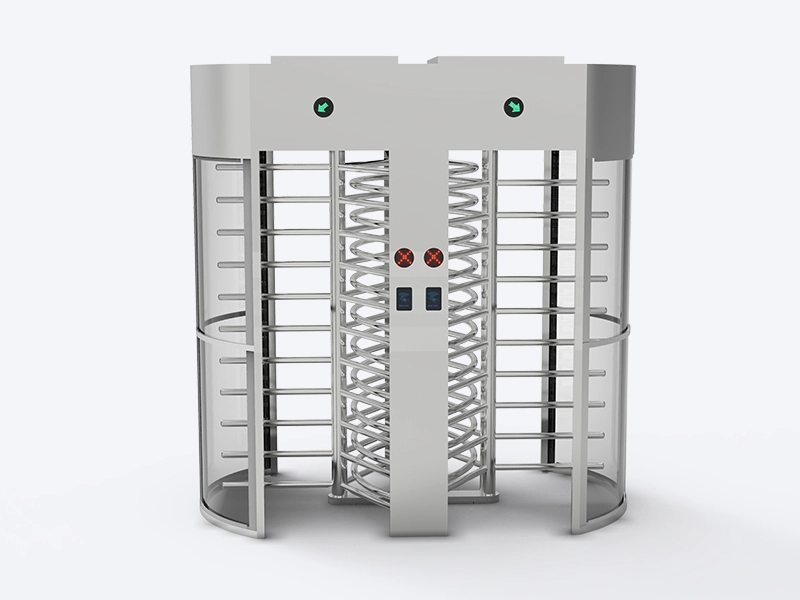

BLS-FH57D Double entrance full height gate turnstile access control security 1

BLS-FH57D Double entrance full height gate turnstile access control security 2

BLS-FH57D Double entrance full height gate turnstile access control security 3

BLS-FH57D Double entrance full height gate turnstile access control security 4

BLS-FH57D Double entrance full height gate turnstile access control security 5

BLS-FH57D Double entrance full height gate turnstile access control security 6

BLS-FH57D Double entrance full height gate turnstile access control security 7

BLS-FH57D Double entrance full height gate turnstile access control security 8

BLS-FH57D Double entrance full height gate turnstile access control security

Name: BLS-FH57D Double entrance full height gate turnstile access control security
Brand: Bolan

Brand:

BOLAN，Neutral, OEM & ODM Acceptable

Model:

BLS-FH57D

MOQ:

1pc

Payment:

T/T before shipping

Delivery time:

One week(Depends on Quantity)

Start Port:

Shenzhen

Certification:

CE, ISO9001

Technology

Auto-reset rotor mechanism

The turnstile arm automatically swings back to its original starting position after every single use.

Auto-lock function

If the gate opens but no one walks through, it locks itself automatically after 30 seconds (this default time can be adjusted to your needs).

Anti-pinch safety feature

Prevents the rotor from getting stuck or trapping people halfway through a rotation, even if there's a sudden power cut.

Anti-reverse system

Blocks anyone from trying to push through the turnstile in the wrong direction.

Hydraulic shock absorption mechanism

Ensures the turnstile runs smoothly and quietly with no jarring movements.

Permanently lubricated bearings

Keeps the turnstile operating seamlessly, with almost no upkeep required.

Manual key unlock

Use a key to unlock the turnstile for emergencies or special situations, and it works for both entry and exit directions.

Features

1. Industrial-grade structre meets international security standards

2. Anti-vandal and impact-resistant design for high-risk areas

3. Complies with fire safety and accessibility regulations

4.Long-lasting components reduce replacement and maintenance costs

5.Effective tailgating and climbing prevention for accurate access control

6. Weatherproof IP rating protects against rain, sun, dust, and humidity

7.Compatible with access control systems from different manufacturers(can supplied by your side)

8. Emergency evacuation function ensures life safety

9. Double entrance can be one entry one exit for high traffic flow sites

Technical Specifications

Parameter Items	Specifications
Material	304 stainless steel or carbon steel/201 stainless steel powdered coating colors (colors optional, anti-rust, anti-corrosion) 316 stainless steel optional
Overall Dimensions	2200mm (length) × 1450mm (width) × 2250mm (height)
Passage Width	Double entrance 650mm (customized according to needs)
Arm Dimensions	Three arms or four arms, 600mm Length(can be added), 38mm diameter
Rotating angles	90 or 120 degrees
Passage Speed	20-30 persons per minute per channel
Working Voltage	AC110V/ 220V ± 10%, 50Hz
Drive Voltage	DC12V+DC18V
Operating Power	≤ 60W (energy-saving)
Working Current	<= 2000mA
Input signal	12V DC level or 12V pulse > 100ms
Interface	Input: Relay signal Output: Dry contact compatible with most of access control devices on the market RS485, TCP/IP
Protection Level	IP54 (suitable for indoor and outdoor use) IP68(suitable for harsh environment)
Working Temperature	-20℃ ~ 60℃ (adapts to various climates)
Power Failure Handling	Automatic unlock to ensure pedestrian pass;automatic lock when power on. If for special sites, we also can change it.(prison, government institution etc high security requirement sites)

Structure and Dimensions

The core structure consists of three main parts: the top housing(including the mechanism, main board, power supply), two sides of fence(make the passing channel enclosed) and one middle fence, 2sests of the rotation system(rotor shaft with three or four arms, base bearings)

drawing1 拷贝 (5)

drawing2 拷贝 (5)

FH57D dimension drawing 拷贝

Customization & Accessories

Customization options

★ Bespoke design & sizing – Crafted to perfectly match your site layout, decor style and project specifications.
★ Material & finish selections – 304/316 stainless steel, powder-coated carbon steel (with custom color options); brushed, snowflake, mirror or matte surface textures; anodized aluminum offered for specific models.
★ Logo customization – Applied via engraved stainless steel plates or silk-screen printing.
★ LED indicator options – Pick between fixed red "X"/green arrow signals or dynamic flowing red-green light effects.
★ Reader window customization – Customized size and shape, with the option to add printed logos or slogans.
★ Rotor structure variants – 3/4 arm designs; straight or U-shaped pipes; stainless steel or acrylic panel options.
★ Arm casing choices – Fully welded stainless steel casings or black PVC casings.
★ Optional audio alarm – Security warning module available as an add-on upon request.
★ Portable/removable option – Optional welded carbon steel base for temporary or mobile installation setups.
★ Browse our Customization Services page for comprehensive specifications, or contact our technical team to confirm any additional custom requirements.

Optional Accessories

★ RFID card reader
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector
★ Inner or outer counter
★ RF remote control, push button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us

Warranty

1year for electric parts, 2years for other parts after delivery. More details please feel free to confirm with us.

Operating & Control

Operating ways

• Independent Dual-Channel Operation – Each of the two lanes can be configured independently to any single-lane mode you need: one-way authorized access (with the opposite direction locked), two-way authorized access, one-way free passage (with the opposite direction locked), or a permanent open/locked state. This setup meets all kinds of different traffic control needs on-site.
• Coordinated Dual-Channel Operation – The two lanes work together in the same or opposite ways, with these options:
▷ Designate one lane for authorized entry and the other for authorized exit (two-way, single-lane control)
▷ Set both lanes to two-way authorized access for managing busy peak-hour traffic
▷ Sync both lanes to a permanent open or locked state for unified access control across the whole site

Control ways

• Access control and time attendance system: RFID card/wristband, biometric/face recognition, computer with management software can also control directly
• Ticket system: QR code wristband/ticket
• coin/token collector or RFID card insert
• Exit button
• Wireless remote control
• Manual keys

Application Scenes

Large Industrial Park Main Entrances

Handles two-way peak-hour staff flow efficiently during morning check-in and evening check-out.

Transport Hub Restricted Zones

Manages bidirectional access for ground crew and maintenance teams in airports, railway stations and metro depots.

Large-scale Logistics Warehouses

Controls two-way movement of warehouse staff and loading personnel, preventing unauthorized entry into goods storage areas.

Stadium & Exhibition Center Staff Channels

Facilitates orderly two-way personnel flow during large events, concerts and trade shows.

University Research Building Entrances

Regulates bidirectional access for authorized faculty, students and researchers, blocking non-permitted personnel.

Data Center & Financial Institution Auxiliary Gates

Supports round-the-clock two-way passage for technical maintenance and security patrol teams.

Mining & Construction Site Central Gates

Manages two-way entry and exit of construction workers and equipment operators, ensuring site security.

FH57 (5) 拷贝

FH57 (9) 拷贝

FH57 (4) 拷贝
