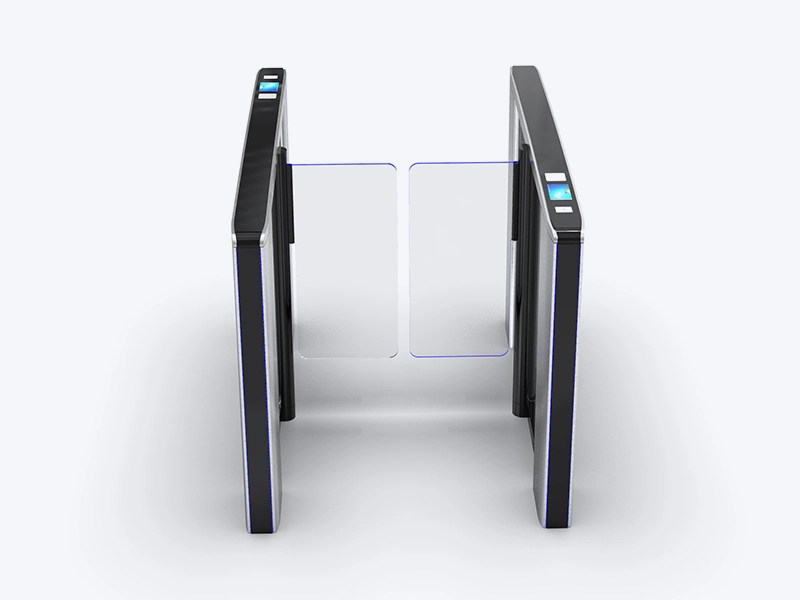

BLS-HS322 Speed gate entry turnstile with card reader for security solutions
5.0
Brand:
BOLAN，Neutral, OEM & ODM Acceptable
Model:
BLS-HS322
MOQ:
2pc
Payment:
T/T before shipping
Delivery time:
One week(Depends on Quantity)
Start Port:
Shenzhen
Certification:
CE, ISO9001
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technology
High-Efficiency Motor-Brake Assembly
Brushless or servo motor integrated with planetary brake, delivering smooth and responsive barrier operation.
Intelligent PLC Control System
Simplified programming, low power consumption, and cost-efficient performance over long-term use.
Multi-Scenario Precision Monitoring
Effectively identifies tailgating, unauthorized reverse entry, forced intrusion, and equipment tampering.
Adjustable Auto-Lock Reset Mechanism
Automatically locks 30 seconds after authorization (if no passage occurs); all timing parameters are fully configurable.
Advanced Anti-Pinch & Obstacle Sensing
6–16 infrared sensor pairs plus buffers trigger instant stop on obstacle detection, preventing gate jamming and personnel entrapment.
Startup Full Self-Inspection
Runs a complete operational cycle on power-up to verify overall system integrity.
Audio-Visual Real-Time Alarm System
Triggers immediate alerts for abnormal events including tailgating, reverse passage, forced entry, or equipment malfunctions.
User-Friendly Passage Guidance
Clear voice prompts and LED indicators provide intuitive direction for all users.
Features
● 50 persons/min max throughput (metro rush hours)
● Multi-level access permission assignment
● Easy-clean surface (hospitals/food factories/restaurant)
● Modular panels/swing barriers/sensors for quick replacement
● International safety standards (anti-pinching/collision)
● Audio and lighting alarm unauthorized entry
● Auto-unlock for emergency and power off
● Elegant appearance for high-end sites
Technical Specifications
| Parameters | Specification |
| Material | Frame: 304/316 stainless steel;also can use carbon steel powdered coating colors optional,some special models can use anodized aluminum colors optional |
| Swing barriers: 10mm thickness Acrylic, tempered glass,PVC or stainless steel | |
| Dimensions | Main body:1600mm(length)*106mm(width)*1020mm(height) Swing barriers: 300mm-450mm width |
| Passage Width | Standard: 600-1000mm customized, some special models can be much wider |
| Speed Performance | 40-50 people/min; Barrier opening time: 0.2-0.5s after authorization (much faster than swing turnstiles) |
| Power Supply | AC 100-240V (universal voltage); |
| Control voltage: DC 24V | |
| Motor Parameters | Brushless DC motor; Power: 40-60W; Rotational speed: 3000rpm (stable and low-noise operation) |
| Savor motor, Power: 60-100W; Rotational speed: 3000rpm (stable and low-noise operation) | |
| Interface | Input：relay signal; output: dry contact RS232, RS485 |
| Environmental Resistance | IP54/IP65 rating; |
| Operating temp: -25℃ to 65℃; |
Structure and Dimensions
A modular, high-throughput pedestrian access control device, BOLAN speed gate turnstile features a robust, performance-optimized structure with these core components: main frame(304/316 stainless steel or aluminum, colors optional), swing barriers(tempered glass, acrylic, stainless steel optional), core drive systems and brake system(24V DC brushless motor or savor motor optional), control system(control motherboard and daughterboard, power supply), sensors (6-16paris infrared sensors), LED indicators and card reader windows(can open windows for parts as your access control devices)
BLS-HS322 dimension 拷贝
Customization & Accessories
Customization options
★ Flexible Custom Design Solutions: Turn your unique concepts into reality with fully tailored options for BOLAN speed gate turnstiles
★ Tailored Size & Layout Planning: Precisely adapted to on-site spatial conditions and specific project requirements
★ Premium Materials & Surface Finishes: Options include 304/316 stainless steel, powder-coated steel (custom color matching), and premium anodized aluminum; available textures: brushed, snowflake, mirror, and matte
★ Brand Integration Customization: Logo engraving or silk-screen printing on cabinets and barrier wings; custom-sized and shaped access control windows to maintain brand consistency
★ Versatile Accessory Add-Ons: Dual-mode LED indicators; 250–450mm adjustable-width barrier gates (available in glass, acrylic, or steel, with optional logo); optional audio alarms and custom ambient LED lighting
★ Portable Configuration Option: Optional steel base design for convenient on-site relocation and temporary deployment
★ Dedicated Customization Support: Detailed information available on the Customization Services page; direct inquiries are welcome for special customization needs
★ Tailored Size & Layout Planning: Precisely adapted to on-site spatial conditions and specific project requirements
★ Premium Materials & Surface Finishes: Options include 304/316 stainless steel, powder-coated steel (custom color matching), and premium anodized aluminum; available textures: brushed, snowflake, mirror, and matte
★ Brand Integration Customization: Logo engraving or silk-screen printing on cabinets and barrier wings; custom-sized and shaped access control windows to maintain brand consistency
★ Versatile Accessory Add-Ons: Dual-mode LED indicators; 250–450mm adjustable-width barrier gates (available in glass, acrylic, or steel, with optional logo); optional audio alarms and custom ambient LED lighting
★ Portable Configuration Option: Optional steel base design for convenient on-site relocation and temporary deployment
★ Dedicated Customization Support: Detailed information available on the Customization Services page; direct inquiries are welcome for special customization needs
Optional Accessories
★ RFID card reader
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us
Warranty
Generally 1year for electric parts, 2years for other parts after delivery. More details please feel free to confirm with us.
Operating & Control
Operating ways
· One-Way Authorized Access Mode：Only one direction allows passage after identity or credential verification, while the reverse direction remains locked.
· Two-Way Verified Access Mode：Credential verification is required for both inbound and outbound directions to unlock the gate for passage.
· One-Way Free Access Mode：Unrestricted passage is permitted in one direction without verification, and the reverse direction is locked by default.
· Full Access/Full Lock Dual-Switch Mode：The system can be switched between two states on demand: one is two-way free access, and the other is full system lockdown.
· Two-Way Verified Access Mode：Credential verification is required for both inbound and outbound directions to unlock the gate for passage.
· One-Way Free Access Mode：Unrestricted passage is permitted in one direction without verification, and the reverse direction is locked by default.
· Full Access/Full Lock Dual-Switch Mode：The system can be switched between two states on demand: one is two-way free access, and the other is full system lockdown.
Control ways
• Access control and time attendance system: RFID card/wristband, biometric/face recognition, computer with management software can also control directly
• Ticket system: QR code wristband/ticket, E-QR code
• Coin/token collector or RFID card insert, wristband collector
• Exit button(optional)
• Wireless remote control(optional)
• Manual override keys(optional)
•Any other system or solutions please confirm with us
• Ticket system: QR code wristband/ticket, E-QR code
• Coin/token collector or RFID card insert, wristband collector
• Exit button(optional)
• Wireless remote control(optional)
• Manual override keys(optional)
•Any other system or solutions please confirm with us
Application Scenes
1
Transportation Terminals
Airports, rail/metro stations, bus hubs, seaports – access control, ticket validation, and efficient peak crowd control
2
Corporate & Premium Commercial Spaces
Office lobbies, business parks, luxury shopping malls – staff & visitor access management, biometric security deployment, and organized crowd guidance
3
Public & Cultural Entertainment Venues
Stadiums, theaters, museums – entry inspection, fast passage, and aesthetic crowd flow management
4
Government & Critical Infrastructure
Government buildings, power plants, border checkpoints – high-level secure access, comprehensive audit trails, and biometric verification
1
Education & Healthcare Institutions
Campuses, hospitals – access management, secured zone protection, and infection control-compliant pedestrian flow
2
Hospitality & Leisure Facilities
Luxury hotels, fitness centers, theme parks – member/guest access control, ticket validation, and holiday peak crowd management
3
Industrial & Logistics Facilities
Manufacturing plants, warehouses – restricted zone protection, and integrated access control & time attendance management
