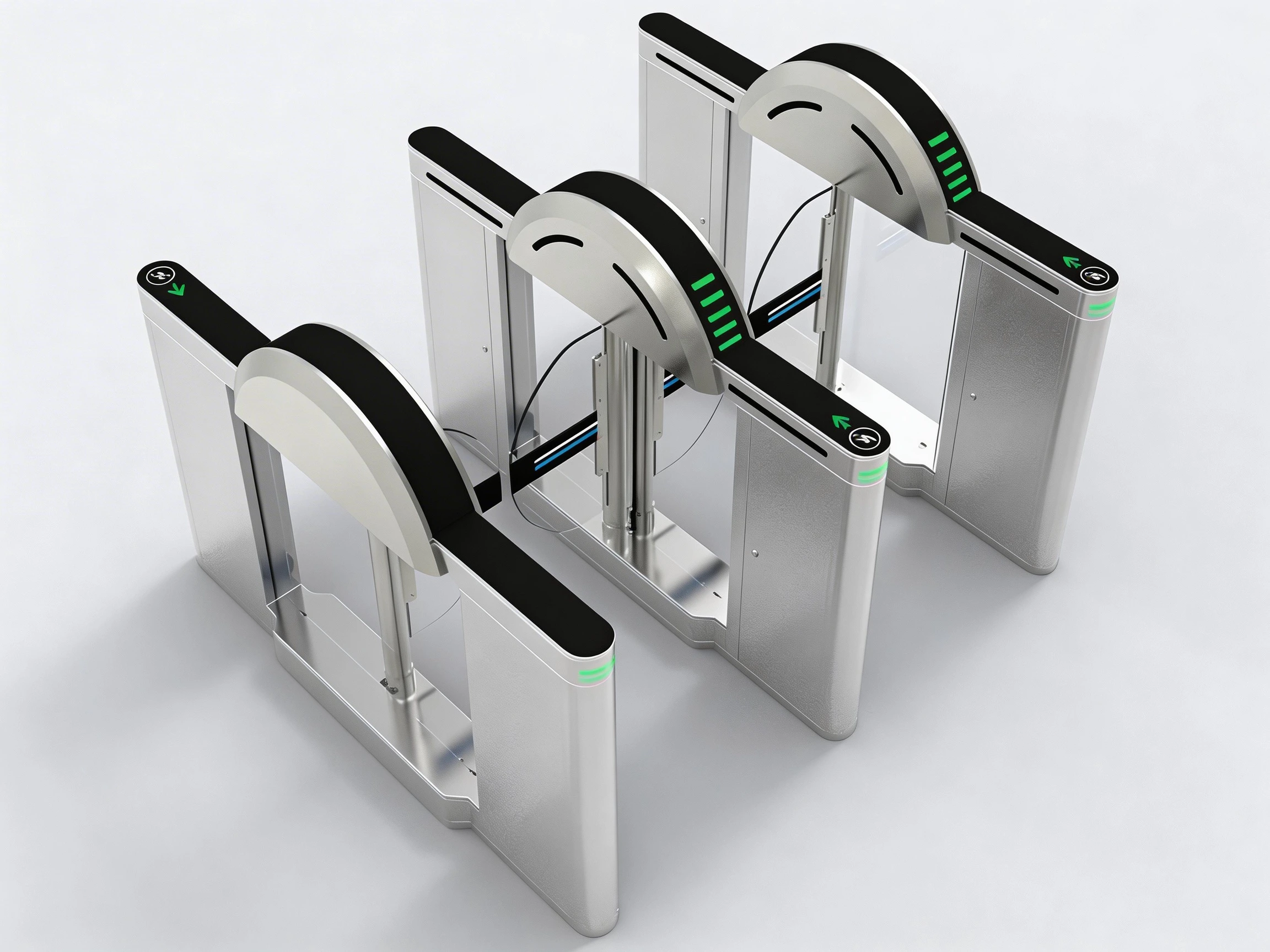

Stainless Steel Speed Turnstile Pedestrian Security Gate Access Control BLS-HS336
● High-Power Motor & Brake System with Anti-Collision Protection
Powered by reliable brushless or servo motors paired with planetary brakes, the barrier operates smoothly and responds quickly for stable, safe passage.
● Intelligent PLC Control System
User-friendly programming, low power consumption, and reliable long-term performance at an economical cost.
● Accurate Multi-Scenario Detection
Effectively identifies tailgating, reverse entry, forced opening, and equipment tampering in various usage scenarios.
● Adjustable Auto-Lock & Reset Function
The gate automatically locks 30 seconds after authorization if no passage occurs, with full flexibility to adjust all time parameters.
● Advanced Anti-Pinch & Obstacle Detection
Equipped with 6–16 pairs of infrared sensors and anti-collision buffers, the barrier stops closing immediately when an obstacle is detected, effectively preventing pinching and jamming.
● Comprehensive Self-Diagnosis at Startup
The system automatically runs a full self-check upon startup to verify overall stability and functional integrity.
● Visual & Audio Alarm System
Real-time sound and light alerts for abnormal events including tailgating, reverse passage, forced entry, and equipment malfunctions.
● User-Friendly Passage Guidance
Clear voice prompts and bright LED indicators deliver simple, intuitive guidance for all users.
Features
● Smooth, fast and low-noise passage
● Low power consumption and easy setup
● Accurately identifies following, reverse entry and forced opening in real time
● Adjustable automatic locking after authorized idle time for better security
● System self-check at power-on to ensure stable and reliable performance.
● Sound and light warnings for abnormal access and equipment faults.
● Intuitive LED indicators and voice prompts for easy and orderly passage.
● Modern streamlined structure ideal for high-end commercial and office
● Seamlessly integrates with access control systems on the market
Technical Specifications
| Parameters | Specification |
| Material | Frame: anodized aluminum colors optional |
| Swing barriers: 10mm thickness Acrylic, tempered glass,PVC or stainless steel | |
| Dimensions | Main body:1700mm(length)*215mm(width)*1210mm(height) Swing barriers: 300mm-350mm width |
| Passage Width | Standard: 600-750mm customized, some special models can be much wider |
| Speed Performance | 30-40 people/min; Barrier opening time: 0.2-0.5s after authorization (much faster than swing turnstiles) |
| Power Supply | AC 100-240V (universal voltage); |
| Control voltage: DC 24V | |
| Motor Parameters | Brushless DC motor; Power: 40-60W; Rotational speed: 3000rpm (stable and low-noise operation) |
| Servo motor, Power: 60-100W; Rotational speed: 3000rpm (stable and low-noise operation) | |
| Interface | Input：relay signal; output: dry contact RS232, RS485 |
| Environmental Resistance | IP54/IP65 rating; |
| Operating temp: -25℃ to 65℃; |
Structure and Dimensions
A modular, high-throughput pedestrian access control device, BOLAN speed gate turnstile features a robust, performance-optimized structure with these core components：main frame(304/316 stainless steel or aluminum, colors optional), swing barriers(tempered glass, acrylic, stainless steel optional), core drive systems and brake system(24V DC brushless motor or savor motor optional), control system(control motherboard and daughterboard, power supply), sensors (6-16paris infrared sensors), LED indicators and card reader windows(can open windows for parts as your access control devices)
Customization & Accessories
★ Adaptable Size & On-Site Layout
Each unit can be custom sized and arranged to perfectly match site space constraints and fulfill individual project demands.
★ High-Grade Materials & Finishes
A full selection of premium materials including 304/316 stainless steel, custom-color powder coating, and high-quality anodized aluminum; with brushed, snowflake, mirror, and matte surface finishes available.
★ Branded Visual Customization
Support for logo engraving or silk-screen printing on the cabinet and barrier wings; customizable access control panel openings in various sizes and shapes to maintain a consistent brand identity.
★ Configurable Accessory Upgrades
Optional dual-mode LED indicators; adjustable barrier widths from 250mm to 450mm with glass, acrylic or stainless steel wings (logo optional); additional voice alarms and custom ambient LED lighting can also be integrated.
★ Portable Base Configuration
Optional steel base design allows for easy movement and repositioning on-site as needed.
★ Professional Custom Service Support
For more details, please visit our Customization Services page; feel free to contact us directly for any special or project-specific customization requirements.
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us
Operating & Control
• One-Way Authorized Access: Passage is permitted in one direction only after valid authentication, while the reverse direction remains securely locked.
• Two-Way Verified Access: Both entry and exit directions require credential verification to ensure full bidirectional access control.
• One-Way Free Flow: Unrestricted free passage in the designated direction, with the reverse path locked by default for enhanced security.
• Ticket system: QR code wristband/ticket, E-QR code
• coin/token collector or RFID card insert, wristband collector
• Exit button(optional)
• Wireless remote control(optional)
• Manual override keys(optional)
•Any other control system or solutions please confirm with us
