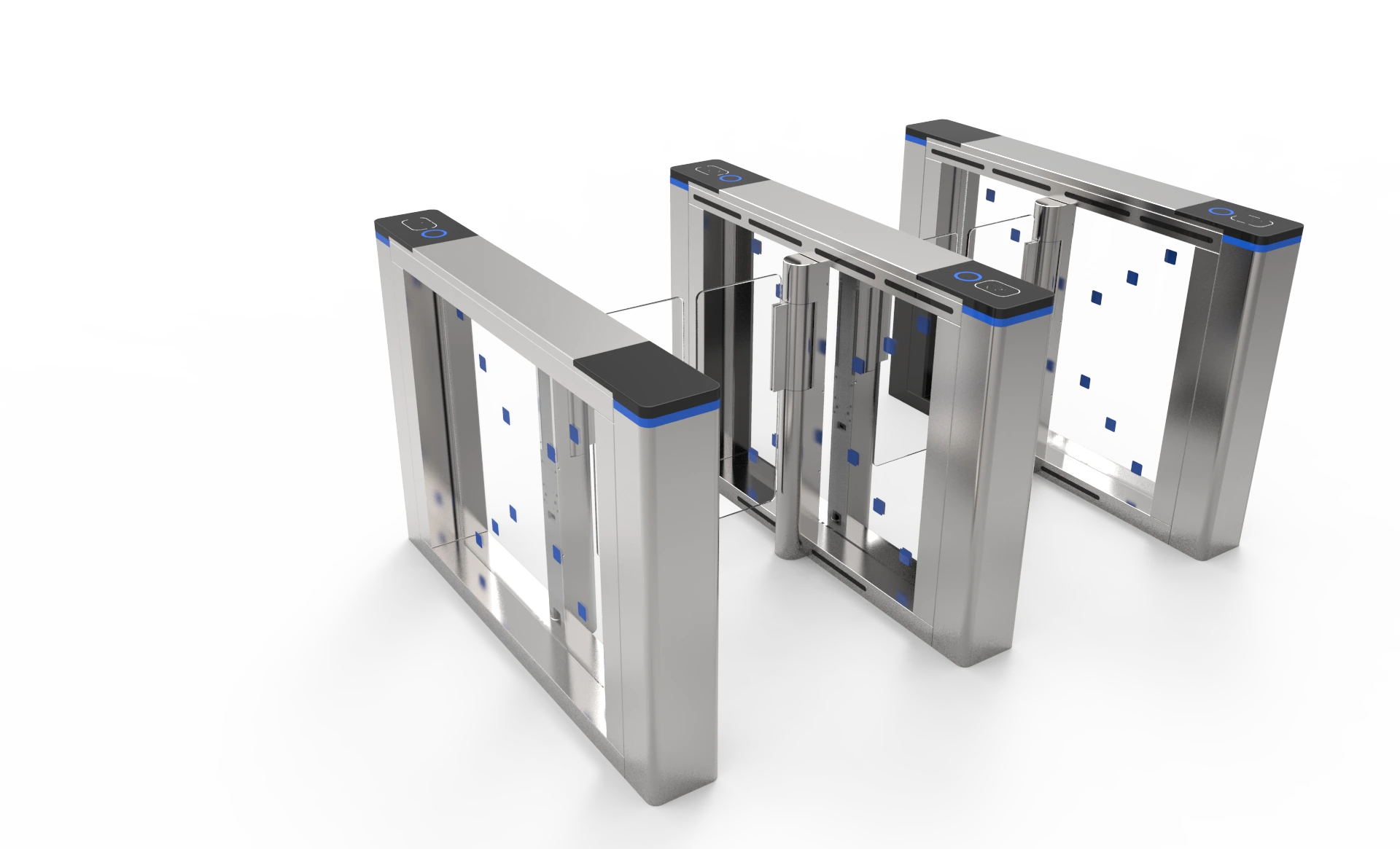

High Speed Gate Lobby Turnstile Facial Security Entrance Solution BLS-HS303
High-Speed Motor & Planetary Brake System
Brushless or servo motor combined with planetary brake enables smooth, responsive barrier movement.
Intelligent Integrated PLC Controller
Enables easy programming and low power consumption, realizing cost-effective long-term use.
Precision Multi-Condition Detection
Accurately identifies tailgating, unauthorized reverse entry, forced intrusion, and physical tampering.
Adjustable Auto-Lock Reset Function
Automatically locks the barrier 30 seconds after authorization if no passage; timing parameters are fully customizable.
Enhanced Anti-Pinch & Obstacle Detection
Optional 6–16 pairs of infrared sensors plus anti-collision buffers; stops barrier closure when obstacles are detected, avoiding jamming/entrapment in emergencies.
Power-On Auto-Self-Inspection & Anti-collision mechanism
Performs a full operational cycle upon startup to self-diagnose and confirm system functionality.
Audible & Visual Alarm System
Triggers alerts for tailgating, reverse passage, forced entry, or equipment faults.
Intuitive Passage Guidance
Equipped with voice prompts and LED indicators for clear user guidance.
Features
● Facial & fingerprint recognition for high-precision verification
● Silent swing operation to reduce noise pollution
● Emergency release function for power outage evacuation
● Optical sensing for contactless, low-wear operation
● 30% energy savings vs. traditional turnstiles
● Modular design structure for easy installation
● Customizable swing barriers materials (tempered glass/stainless steel/acrylic)
● Auto-reset to closed state post-passage
● ≤45dB low-noise operation (shopping environments)
● 24/7 lifetime technical support
Technical Specifications
| Parameters | Specification |
| Material | Frame: 304/316 stainless steel;also can use carbon steel powdered coating colors optional,some special models can use anodized aluminum colors optional |
| Swing barriers: 10mm thickness Acrylic, tempered glass,PVC or stainless steel | |
| Dimensions | Main body:1400mm(length)*185mm(width)*1020mm(height) Swing barriers: 300mm-450mm width |
| Passage Width | Standard: 600-900mm customized, some special models can be much wider |
| Speed Performance | 30-40 people/min; Barrier opening time: 0.2-0.5s after authorization (much faster than swing turnstiles) |
| Power Supply | AC 100-240V (universal voltage); |
| Control voltage: DC 24V | |
| Motor Parameters | Brushless DC motor; Power: 40-60W; Rotational speed: 3000rpm (stable and low-noise operation) |
| Savor motor, Power: 60-100W; Rotational speed: 3000rpm (stable and low-noise operation) | |
| Interface | Input：relay signal; output: dry contact RS232, RS485 |
| Environmental Resistance | IP54/IP65 rating; |
| Operating temp: -25℃ to 65℃; |
Structure and Dimensions
A modular, high-throughput pedestrian access control device, BOLAN speed gate turnstile features a robust, performance-optimized structure with these core components：main frame(304/316 stainless steel or aluminum, colors optional), swing barriers(tempered glass, acrylic, stainless steel optional), core drive systems and brake system(24V DC brushless motor or savor motor optional), control system(control motherboard and daughterboard, power supply), sensors (6-16paris infrared sensors), LED indicators and card reader windows(can open windows for parts as your access control devices)
Customization & Accessories
★ Material & Surface Finish Options:Choose 304/316 stainless steel (corrosion-resistant), powder-coated carbon steel (custom colors) or anodized aluminum (premium models). Textures: brushed, snowflake, mirror-polished, matte.
★ Branding Customization:Logo engraving/silk-screening on cabinets or barrier wings; customizable access control window size/shape to align with corporate identity.
★ Visual & Functional Accessories
★ Dual-mode LED indicators (fixed red cross/green arrow or dynamic flowing light)
★ Barrier wings: tempered glass/acrylic/stainless steel,250-450mm adjustable width, optional logo engraving
★ Optional adding: audio alarm system, custom-color ambient LED lighting
★ Portable Model Available:Optional steel-based portable version for easy relocation across sites.
★ Custom Service Consultation:Refer to the Customization Services page for details; direct contact for special customization needs.
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us
Operating & Control
· Unidirectional Authorized Passage: Verification is required for one-way access; reverse direction stays locked.
· Bidirectional Verified Passage: Credential validation is mandatory for both inbound and outbound passage.
· Unidirectional Free Passage: Unrestricted flow in one direction; reverse access remains locked.
· Dual-Mode (Full Access/Full Lock): Switchable between unrestricted two-way passage and full system lockdown.
• Ticket system: QR code wristband/ticket, E-QR code
• coin/token collector or RFID card insert, wristband collector
• Exit button(optional)
• Wireless remote control(optional)
• Manual override keys(optional)
•Any other control system or solutions please confirm with us
Application Scenes
