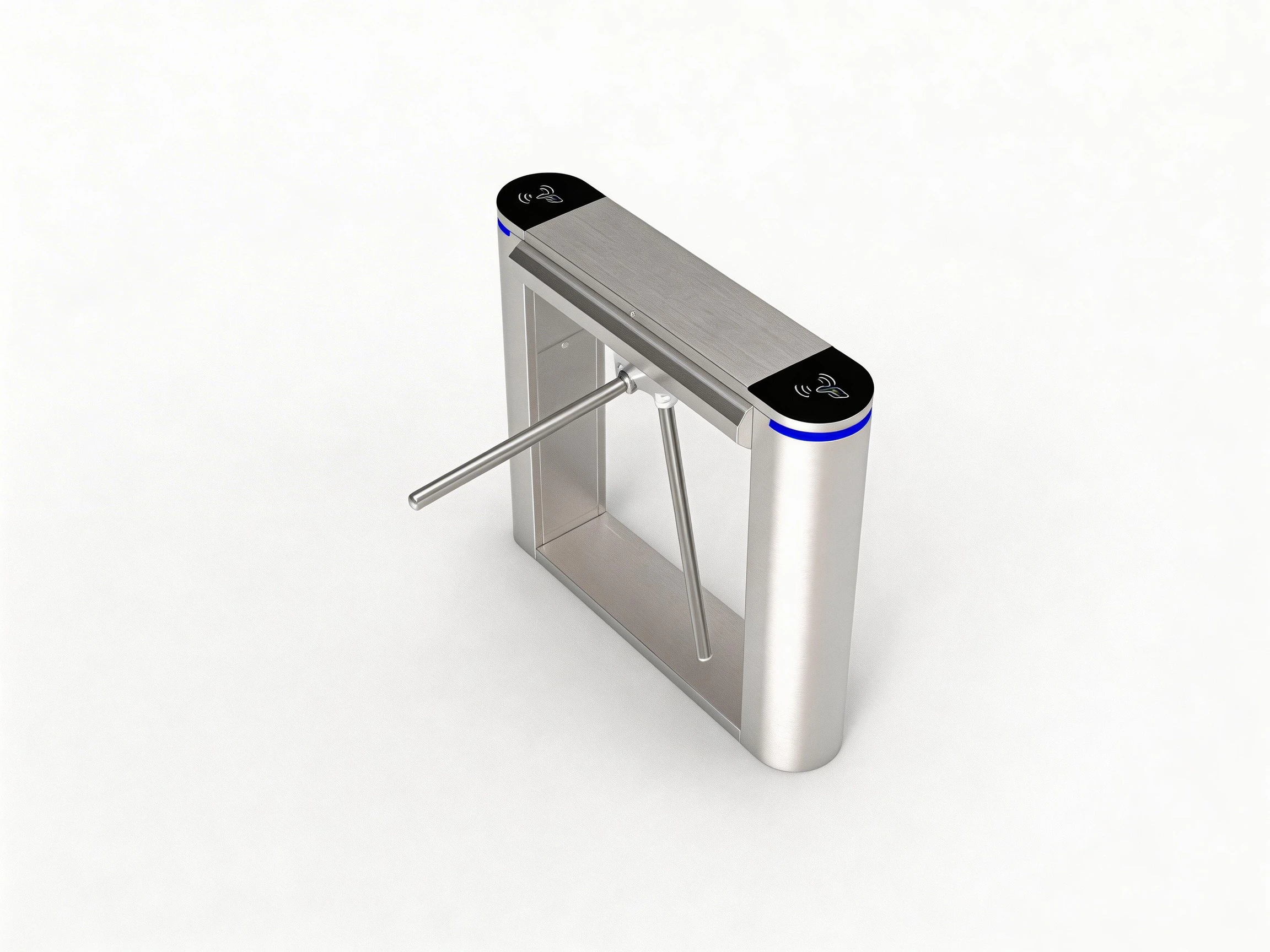

Tripod Gate Anti-tailgating Turnstile Access Security Solutions BLS-T303
●Self-centering rotor drive mechanism
After each full rotation, the turnstile rotor automatically resets to its initial position, ensuring consistent operation.
●Auto-locking function
If an opening signal is received but no pedestrian passes through, the turnstile will lock itself automatically after 30 seconds(adjustable)
●Anti-pinch safety
This mechanism prevents the rotor from locking unexpectedly or trapping pedestrians during rotation, especially in the event of a power outage
●60º anti-reverse
Effectively prohibits pedestrians from passing through the turnstile in the opposite direction
●Hydraulic shock absorption mechanism
Equipped with hydraulic shock absorber, the turnstile operates more stably and quietly, reducing wear and tear while improving user experience.
●Clear LED indicators
LED light stripe indicators, Blue means locked, Green means Pass, Red means Fault/Not pass
●Auto-unlock power off
The arms will unlock and fall down when power off for emergency
Features
● High-speed brushless DC motor, stable, quiet and long lifetime
● Lightweight and high-strength swing arm
● Precision transmission system with high wear resistance
● Multi-point infrared detection
● Stainless steel main frame with compact structure
● Emergency auto opening function
●Low power consumption, energy-saving and environmentally friendly
Technical Specifications
| Parameters | Specification |
| Material | Cabinet: 304 stainless steel/ optional 316 stainless steel for corrosive environments Carbon steel powder coating, colors optional |
| Tripod arms: 38mm diameter 304 stainless steel pipe, add safety sleeves optional, 500mm length | |
| Dimensions | Main body:1200mm(length)*270mm(width)*980mm(height) |
| Passage Width | 550-650mm (suitable for single adult pedestrian passage) |
| Speed Performance | 20-30 persons per minute (under normal access control verification conditions) |
| Power Supply | AC 100-240V (universal voltage); |
| Control voltage: DC 24V | |
| Mechanism | Static current: ≤ 800mA; |
| Operating current: ≤ 2000mA | |
| Operating Direction | Single or bi-direction optional |
| Interface | Input：relay signal; output: dry contact RS232/ RS485 |
| Environmental Resistance | IP54/IP65 rating; Indoor or Outdoor |
| Operating temp: -25℃ to 65℃; | |
| Power Failure Handling | Automatic drop-arm (unlocked) to ensure pedestrian pass; manual lift-arm when power on(Semi-automatic tripod turnstile); automatic lift-arm when power on(full automatic tripod turnstile) |
Structure and Dimensions
BOLAN tripod turnstile gate has a modular structure, the core structure consists of three main parts: the main cabinet(cabinet type machine body, LED indicators on the top and two sides(optional), card reader windows two sides etc), the tripod mechanism（machine core, arm plate and three rotation arms）, and the control system(control main board, power supply, interface etc).
Customization & Accessories
★ Custom design and dimensions: Tailored to fit your specific site layout and functional requirements.
★ Material and surface finish options: Available in 304/316 stainless steel, carbon steel with powder coating (custom colors), and various surface treatments such as brushed, snowflake, mirror, or matte; some models also offer aluminum anodization with optional colors.
★ LOGO customization: LOGO can be added via stainless steel plate, silk-screen printing, or other methods.
★ LED indicators: Options include fixed red "X" and green arrow indicators, or flowing red and green arrows for clear passage guidance.
★ Reader window customization: Customizable shape and size, with the option to add LOGO and slogans.
★ Turnstile arm options: Full-welded arms (with stainless steel lock head) or press-formed arms (with aluminum lock head).
★ Optional arm sleeves: Available in various colors to match site decor.
★ Optional sound alarm: Can be added to alert for abnormal operations or unauthorized access.
★ Portable/removable design: Carbon steel plates can be added to meet portable and removable requirements.
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us
Operating & Control
• One-Way Authorized:Authorized required for preset direction; reverse locked
• Two-Way Verified:Credential check for both inbound & outbound
• One-Way Free Flow:Unrestricted one-way passage; reverse locked by default
• Dual-Mode (Full Access/Lockdown):Switchable between two-way free flow & full system lock
• Access control and time attendance system: RFID card/wristband, biometric/face recognition, computer with management software can also control directly
• Ticket system: QR code wristband/ticket, E-QR code
• coin/token collector or RFID card insert, wristband collector
• Exit button(optional)
•ESD tester, temperature tester+RFID card or face recognition
• Wireless remote control(optional)
•Any other control system or solutions please confirm with us
