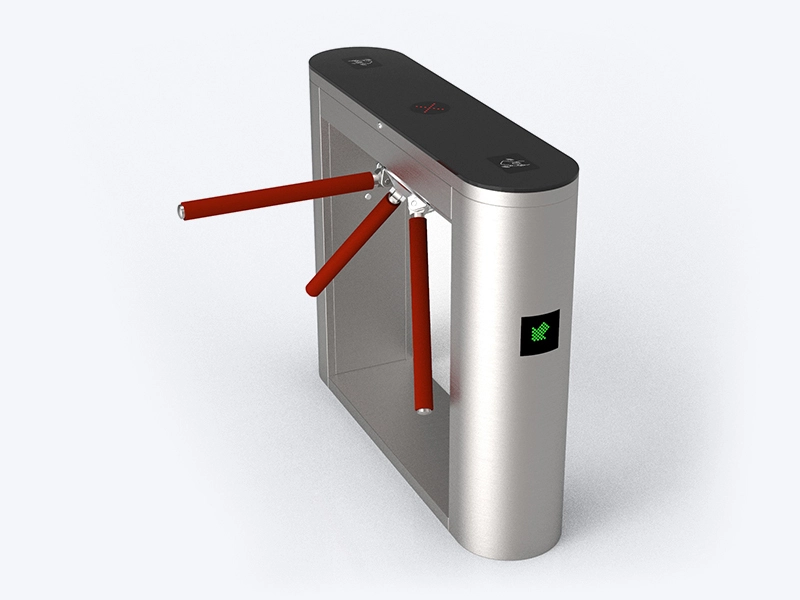

BLS-T501A Acrylic Top Indoor Entrance Security Tripod Gate Turnstile
5.0
Brand:
BOLAN，Neutral, OEM & ODM Acceptable
Model:
BLS-T501A
MOQ:
1pc
Payment:
T/T before shipping
Delivery time:
One week(Depends on Quantity)
Start Port:
Shenzhen
Certification:
CE, ISO9001
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technology
Self-centering rotor drive
the rotor snaps back to the default position automatically after each rotation
30s adjustable auto-lock
kicks in if no one passes through after the gate-opening signal is received
Power-off anti-pinch mechanism
stops rotor jamming and pedestrian entrapment mid-spin when power cuts out
60° secure anti-reverse system
eliminates any unauthorized reverse passage through the turnstile
Shock-absorbing mechanism
enables steady, whisper-quiet operation
Features
1. Long lifetime: MTBF (Mean Time Between Failures) of over 1000,000 times
2. Excellent anti-tailgating performance, only one person can pass through one time
3. Bi-direction or single direction optional
4. Durable material, streamlined design and reliable structure for safety and good look
5.Easy installation & maintenance, modular design helps to replace fault parts easily
6.Arm drop if emergency or power failure
7.With clear LED indicator on top and two sides
Technical Specifications
| Parameter Category | Specific Specifications |
| Dimensions | Bridge:1200mm (length) × 280mm (width) × 980mm (height); Customized size available for special installation environments and design |
| Passage Width | 550-650mm (suitable for single adult pedestrian passage) |
| Material | Cabinet: 304 stainless steel Carbon steel with powder coating, colors optional 316 stainless steel for corrosive environments |
| Tripod arms: 38mm diameter 304 stainless steel pipe, 500mm length | |
| Working Voltage | AC 110V-240V ± 10%, 50Hz |
| Drive Voltage | DC12V+DC18V |
| Working Current | Static current: ≤ 800mA; |
| Operating current: ≤ 2000mA | |
| Operating Temperature | -30℃ to 70℃ (normal operation under low-temperature and high-temperature environments with proper protection) |
| Relative Humidity | ≤ 95% (non-condensing) |
| Passage Speed | 20-30 persons per minute (under normal access control verification conditions) |
| Operating Direction | Single or bi-direction |
| Installation | Indoor and outdoor |
| Protection Level | IP54 (standard); IP65 available for outdoor or dusty environments |
| Power Failure Handling | Automatic drop-arm (unlocked) to ensure pedestrian pass; manual lift-arm when power on(Semi-automatic tripod turnstile); automatic lift-arm when power on(full automatic tripod turnstile) |
| Verification Interface | Standard: Relay Signal Dry Contact Interface(compatible with most of access control devices on the market) ; RS485, TCP/IP |
Structure and Dimensions
The core structure consists of three main parts: the main cabinet(cabinet type machine body, LED indicators on top and two sides, card reader windows two sides etc), the tripod mechanism（machine core, arm plate and three rotation arms）and the control system(control main board, power supply).
drawing1 拷贝 (2)
drawing2 拷贝 (2)
drawing3 拷贝
Customization & Accessories
Customization options
★ Site-adapted design and dimension tuning to fit your venue layout and functional demands
★ Multiple material & finish combinations: 304/316 stainless steel, powder-coated carbon steel, optional anodized aluminum; with finishes spanning brushed, snowflake, mirror and matte textures
★ Branding implementation: logo application via stainless steel plate inlay or silk-screen printing
★ LED status prompts: static red X/green arrow indicators or dynamic flowing light effects
★ Reader window customization (shape & size, adding logo and slogan optional adjustable per specific needs)
★ Two arm configurations to choose from: fully welded arms with stainless steel lock heads, or press-formed arms with aluminum lock heads
★ Optional functional upgrades: colored arm sleeves and audible alarm systems
★ Portable & removable variant enhanced with carbon steel plate base
★ Explore full customization details on our dedicated service page; feel free to contact our team for personalized requirements confirmation
★ Multiple material & finish combinations: 304/316 stainless steel, powder-coated carbon steel, optional anodized aluminum; with finishes spanning brushed, snowflake, mirror and matte textures
★ Branding implementation: logo application via stainless steel plate inlay or silk-screen printing
★ LED status prompts: static red X/green arrow indicators or dynamic flowing light effects
★ Reader window customization (shape & size, adding logo and slogan optional adjustable per specific needs)
★ Two arm configurations to choose from: fully welded arms with stainless steel lock heads, or press-formed arms with aluminum lock heads
★ Optional functional upgrades: colored arm sleeves and audible alarm systems
★ Portable & removable variant enhanced with carbon steel plate base
★ Explore full customization details on our dedicated service page; feel free to contact our team for personalized requirements confirmation
Optional Accessories
★ RFID card reader
★ Fingerprint reader, face recognition
★ QR code scanner
★ ESD tester
★ Temperature tester
★ Card insert, coin collector, token collector
★ Inner or outer counter
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us for confirmation
★ Fingerprint reader, face recognition
★ QR code scanner
★ ESD tester
★ Temperature tester
★ Card insert, coin collector, token collector
★ Inner or outer counter
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us for confirmation
Warranty
★ 1year for electric parts, 2years for other parts after delivery. More details please feel free to confirm with us.
Operating & Control
Operating ways
· Single-way dedicated passage (entry or exit exclusive)
· Dual-way universal passage (supports both entry and exit)
· One-way free-flow passage (unrestricted entry or exit)
· Two-way free-flow passage (unrestricted entry and exit)
· Persistent free-flow or locked status
· Dual-way universal passage (supports both entry and exit)
· One-way free-flow passage (unrestricted entry or exit)
· Two-way free-flow passage (unrestricted entry and exit)
· Persistent free-flow or locked status
Control ways
• Access control and time attendance system: RFID card/wristband, biometric/face recognition, computer with management software can also control directly
• ESD system: ESD tester+RFID card or face recognition or not
• Ticket system: QR code wristband/ticket
• coin/token collector or RFID card insert
• Exit button
• Wireless remote control
• ESD system: ESD tester+RFID card or face recognition or not
• Ticket system: QR code wristband/ticket
• coin/token collector or RFID card insert
• Exit button
• Wireless remote control
Application Scenes
1 (7)
2 (13)
4 (5)
