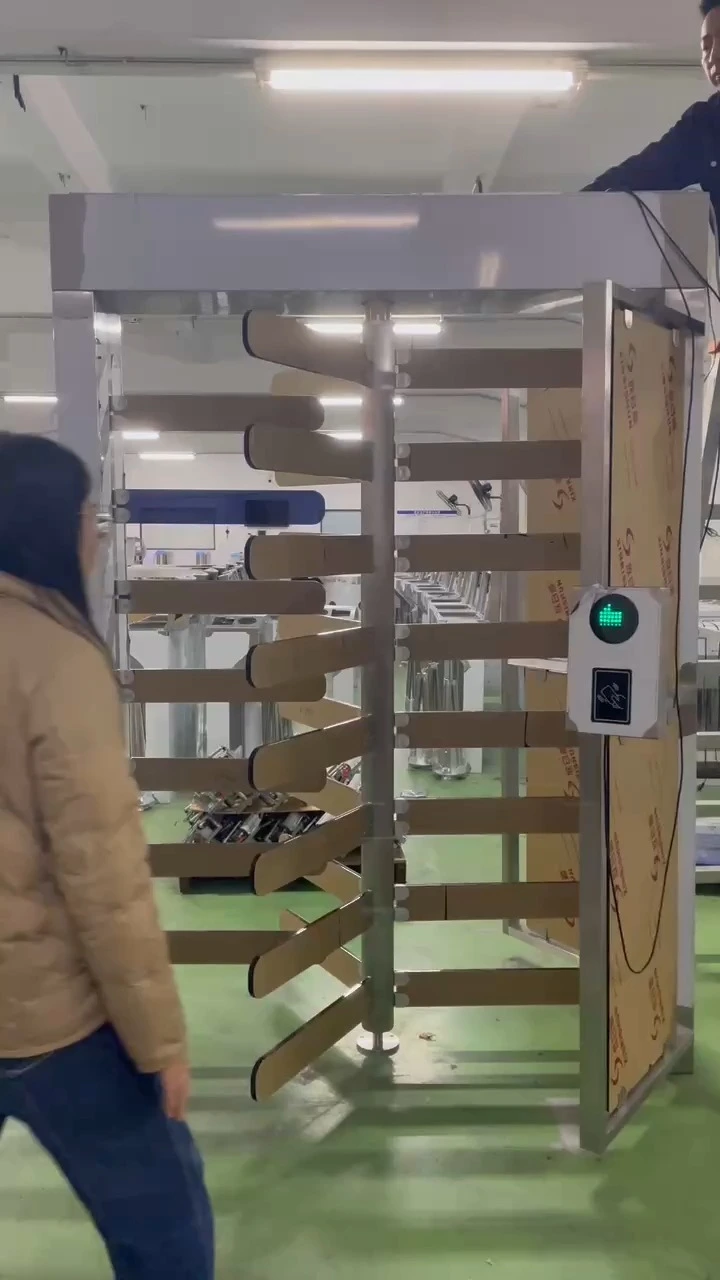

Outdoor Full Height Gate Turnstile with RFID Card Reader Systems BLS-FH62
● Auto-reset rotor mechanism
Automatically returns to standby position after passage
●Intelligent auto-lock function
Automatically self-locking in 30 seconds (default duration, adjustable) if the gate detects an open signal but no pedestrian passage occurs
●Power-off anti-pinch
Prevents clamping and ensures pedestrian safety
●Anti-reverse anti-tailgatig access
Avoids pedestrian reverse passing through, strictly ensuring one person one pass
●Hydraulic shock absorption mechanism
Operating more stable and without noise, reducing mechanical wear for longer lifetime
● Permanently lubricated bearings
Operating smooth and easy for maintenance, easy installation without orientation
●Automatically unlock for emergency
Automatically unlock for emergency and special requirements
Features
● Intelligent anti-tailgating system: Effectively detects and blocks unauthorized entry
● Round safety design: User-friendly, reduces collision and injury risks
● Ultra quiet mechanism: Ideal for hospitals, offices and noise sensitive environments
● Automatic static locking: Secures passage when idle
● Quick installation: Simplified structure reduces on site setup time and cost
● Aesthetic rounded appearance: Blends with modern architectural design
● Custom coating colors: Orange, green, matte black and other colors available
● High brightness LED indicators: Improves visibility and safety at night
● Flexible access mode: Supports RFID / biometric entry, free exit
Technical Specifications
| Parameters | Specification |
| Material | Frame: 304 stainless steel or carbon steel/201 stainless steel powdered coating colors (colors optional, anti-rust, anti-corrosion); 316 stainless steel optional, fence for acrylic optional |
| Arms: 3/4 arms optional, straight pipe, or U-type or stainless steel plate, acrylic optional | |
| Dimensions | Main body:1650mm (length) × 1500mm (width) × 2300mm (height) Arms: 38mm diameter, 610mm length |
| Passage Width |
Pedestrian entrance 650mm (customized according to needs) |
| Speed Performance | 25-35 people/min; Barrier opening time: 0.8-1.2s after authorization |
| Power Supply | AC 100-240V (universal voltage); |
| Control voltage: DC 24V | |
| Mechanism | With hydraulic shock absorb |
| With Permanently lubricated bearings | |
| Interface | Input：relay signal; output: dry contact RS232, RS485 |
| Environmental Resistance | IP54/IP65 rating; |
| Operating temp: -25℃ to 65℃; | |
| Rotating angle | 90 /120 degree |
| Power Failure Handling |
Automatic unlock to ensure pedestrian pass;automatic lock when power on. If for special sites, we also can change it.(prison, government institution etc high security requirement sites) |
Structure and Dimensions
Bolan BLS-FH62 Full height turnstile features a robust three parts core structure:
1. Top housing: Integrated movement, main control board and power supply, stainless steel parts can more robust, waterproof
2. Side fences: Form fully enclosed passage to prevent climbing and illegal crossing, acrylic plate looks more fashion and elegant
3. Rotation system: Rotor shaft with 3/4 acrylic arms and high strength base bearings
Customization & Accessories
★ Custom size and layout for different site requirements
★ Material options: 304 / 316 stainless steel, powder coated carbon steel
★ Surface finish: Brushed, snowflake, mirror, matte; anodized aluminum optional
★ Custom logo: Engraved plate or silk-screen printing
★ Custom LED indicators: Fixed or dynamic running lights
★ Custom reader window: Size, shape, logo and text customizable
★ Rotor options: 3/4 arms; straight / U shape; stainless steel / acrylic panel
★ Optional arm covers: Stainless steel or PVC
★ Optional audio alarm
★ Portable model with carbon steel base for easy movement
★ More customized reqruiements please contact us
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, wristband collector, coin collector, token collector
★ Inner or outer counter optional
★ RF remote control, push button
★ Sound Alarm optional
★ Any other accessories you need, please feel free to contact us
Operating & Control
· One-way authorized access: Only one direction requires verification; reverse locked
· Two-way authorized access: Both directions need authentication for orderly flow
· One-way free passage: Free access in one direction; opposite locked
· Full open / full lock: Switch between full free passage or full blocking mode
· Access control & time attendance system: RFID cards/wristbands readers, biometric/face recognition terminals; direct control via computer with dedicated management software is also available.
· Ticket verification system: QR code wristbands and paper tickets.
· Coin/token collector or RFID card insertion device.
· Exit push buttons for one-way controlled access scenarios.
· Wireless remote control for on-site quick operation.
· Powered off auto-unlock for special and emergency situations.
