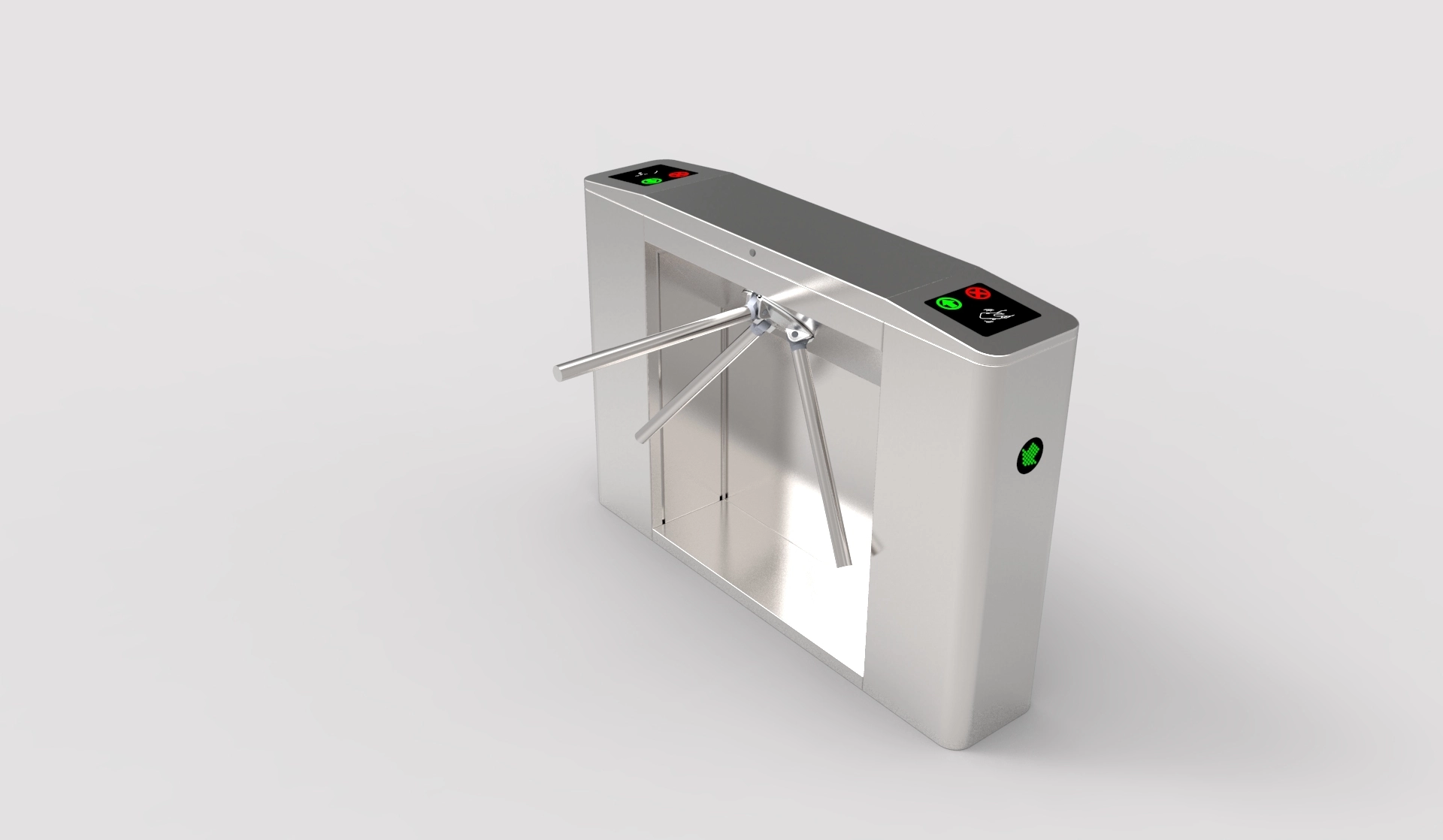

Waterproof Outdoor Tripod Access Turnstile Gate Security BLS-T402
●Self-centering rotor drive
Resets to the initial position automatically after each rotation
●Adjustable time auto-lock Reset
Engages if no one passes within the set time after gate activation
●Power-off anti-pinch mechanism
Avoids rotor seizing and pedestrian entrapment during mid-cycle power outages
●60° anti-reverse system
Prohibits unauthorized reverse passage through the turnstile
●Hydraulic shock-absorbing mechanism
Delivers stable, noise-free operation
Features
● MTBF (Mean Time Between Failures) of over 5000,000 times
● Protective Structure for All Installation Scenes
● Modular desgin helps to replace fualt parts easily
● Equipped with power-failure auto-unlock arm drop for emergency
● Waterproof and dustproof, high stability and long lifetime
● With hydraulic buffer for shocking absorb, more stable and quiet
● LED indicators for clear passage guidance
● Only one person pass through one time
Technical Specifications
| Parameters | Specification |
| Material |
Cabinet: 304 stainless steel/ 316 stainless steel for corrosive environments; Carbon steel with powder coating, colors optional |
| Tripod arms: 38mm diameter 304 stainless steel pipe, add safety sleeves optional, 500mm length | |
| Dimensions | Standard:1400mm (length) × 280mm (width) × 980mm (height); Customized acceptable |
| Power Failure Handling |
Automatic drop-arm (unlocked) to ensure pedestrian pass; manual lift-arm when power on(Semi-automatic tripod turnstile); automatic lift-arm when power on(full automatic tripod turnstile) |
| Operating Direction | Single or bi-direction optional |
| Passage Width | 550-650mm (suitable for single adult pedestrian passage) |
| Speed Performance | 20-30 persons per minute (under normal access control verification conditions) |
| Power Supply | AC 100-240V (universal voltage); |
| Control voltage: DC 24V | |
| Working Current | Static current: ≤ 800mA; |
| Operating current: ≤ 2000mA | |
| Interface | Input：relay signal; output: dry contact RS232, RS485 |
| Environmental Resistance | IP54/IP65 rating; |
| Operating temp: -25℃ to 65℃; | |
| Usage | Indoor or outdoor |
Structure and Dimensions
Bolan Tripod Turnstile Gate is modular design enable easy installation, maintenance and transportation. The core structure consists of three main parts: the cabinet(bridge type machine body, LED indicators on the top or two sides, card reader windows two sides etc), the tripod mechanism（machine core, arm plate and three rotation arms）, and the control system(control main board, power supply).
Customization & Accessories
★ Bespoke design and sizing crafted to align with your on-site layout and operational needs
★ Diverse material and surface finish selections: 304/316 stainless steel, powder-coated carbon steel; plus optional anodized aluminum for specific models, with brushed, snowflake, mirror or matte textures available
★ Branding customization options: logo application via stainless steel plate embedding or silk-screen printing
★ LED status indicator choices: static red “X”/green arrow signals or dynamic flowing light effects
★ Fully customized reader window parameters, including shape and size adjustments, adding logo or slogan on the acrylic optional
★ Two distinct arm configurations: fully welded arms with stainless steel lock heads, or press-formed arms with aluminum lock heads
★ Optional add-on components: colored arm sleeves and audible alarm systems
★ Portable, easy-to-move version upgrade with carbon steel plate reinforcement
★ For comprehensive customization details, visit our dedicated customization service page; feel free to reach out to our team to confirm any special requirements
★ RFID card reader
★ Fingerprint reader, face recognition
★ QR code scanner
★ ESD tester
★ Temperature tester
★ Card insert, coin collector, token collector
★ Inner or outer counter
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us for confirmation
Operating & Control
• One-way single-lane access (entry-only or exit-only operation)
• Two-way single-lane access (supports both entry and exit traffic)
• One-way unrestricted passage (free flow for either entry or exit alone)
• Two-way unrestricted passage (unfettered flow for both entry and exit)
• Permanent free-flow or locked status (fixed mode for constant access or closure)
Control ways
• Access control and time attendance system: RFID card/wristband, biometric/face recognition, computer with management software can also control directly
• ESD system: ESD tester+RFID card or face recognition or not
• Ticket system: QR code wristband/ticket, e-QR code
• coin/token collector or RFID card insert, wristband collector
• Exit button
• Wireless remote control
•Any other control system or solutions please confirm with usApplication Scenes
