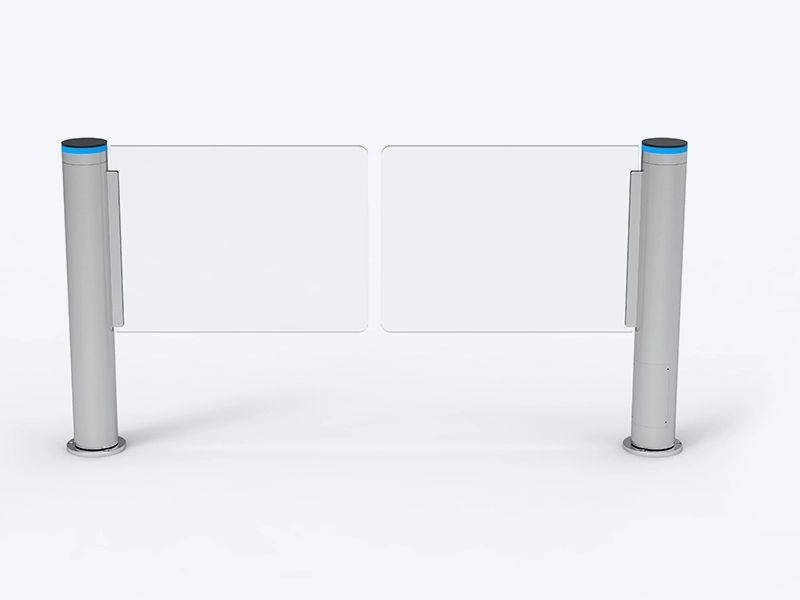

BLS-HS301P Speed gate smart turnstile for security access control
5.0
Brand:
BOLAN，Neutral, OEM & ODM Acceptable
Model:
BLS-HS301P
MOQ:
1pc
Payment:
T/T before shipping
Delivery time:
One week(Depends on Quantity)
Start Port:
Shenzhen
Certification:
CE, ISO9001
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technology
High-Speed Motor Drive with Brake
High speed motor drive and gearbox with brake system(brushless motor or savor motor optional)
Built-in Intelligent PLC Controller
Built-in intelligent PLC controller, easy programming, low power consumption
Precise Abnormal Access Detection
Highly sophisticated detection for tailgating, unauthorized direction, illegal intrusion, physical force
Timed Auto-Lock (Adjustable Parameters)
Auto-lock after 30s if no pedestrian passing after receiving opening signal (timing parameters adjustable)
Anti-Obstacle & Anti-Pinch Protection
Integrated detectors + anti-collision buffers, stop door closing when obstacles detected, and anti-pinch preventing jamming/entrapment in emergencies
Power-On Self-Diagnosis & Self-Check
Automatic self-diagnosed, the swing gate will self operation one cycle when power on to self-inspection
Audio-Visual Alarm
Audible and visual alarm, triggered by tailgating, reverse passing, forced entry or equipment failure
Voice & LED Navigation Guidance
Voice remind and LED indicator to guide clearly
Features
● Multi-mode access solutions compatiable
● Anti-forced entry alarm
● Slim size for narrow spaces
● Self-diagnosed when power on
● Clear LED indicators and voice for guidance
● Can be used by only one speed gate for one channel
● Small size and lightweight for easy installation
● 300-1100mm width swing barrier optional
Technical Specifications
| Parameters | Specification |
| Specification Item | Details |
| Material | Frame: 304/316 stainless steel; 316 for coastal ares (superior corrosion resistance), 304 for general indoor/outdoor use, also can use carbon steel powdered coating colors optional |
| Swing barriers: 10mm thickness Acrylic, tempered glass,PVC or stainless steel | |
| Dimensions | Main body:168mm(diameter)*1050mm(height) Swing barriers: 300mm-1100mm width |
| Passage Width | Standard: 600-1100mm customized, some special models can be much wider |
| Speed Performance | 30-40 people/min; Barrier opening time: 0.2-0.5s after authorization (much faster than swing turnstiles) |
| Power Supply | AC 100-240V (universal voltage); |
| Control voltage: DC 24V | |
| Motor Parameters | Brushless DC motor; Power: 40-60W; Rotational speed: 3000rpm (stable and low-noise operation) |
| Savor motor, Power: 60-100W; Rotational speed: 3000rpm (stable and low-noise operation) | |
| Interface | Input: relay signal Output: dry contact RS232, RS485 |
| Environmental Resistance | IP54/IP65 rating; |
| Operating temp: -25℃ to 65℃; |
Structure and Dimensions
A modular, high-throughput pedestrian access control device, BOLAN speed gate turnstile features a robust, performance-optimized structure with these core components：main frame(304/316 stainless steel or aluminum, colors optional), swing barriers(tempered glass, acrylic, stainless steel optional), core drive systems and brake system(24V DC brushless motor or savor motor optional), control system(control main board and power supply), sensors (6-16paris infrared sensors), LED indicators and card reader windows(can open windows for parts as your access control devices).
HS301P dimension drawing 拷贝
drawing2 拷贝 (10)
drawing1 拷贝 (10)
Customization & Accessories
Customization options
★ Dimension & Layout Tailoring: Full-scale customization is available to perfectly match the on-site spatial layout and meet the unique technical requirements of different projects.
★ Cabinet Material & Surface Finish Options: Cabinet: Core materials include 304/316 stainless steel (for superior corrosion resistance) and powder-coated carbon steel (with customized colors), some special models can use aluminum anodized colors optional. Multiple surface textures are supported: brushed, snowflake, mirror-polished, and matte.
★ Branding Integration: Logo can be applied to the cabinet or swing barrier via engraving or silk-screen printing. In addition, full customization is offered for access control equipment windows size, shape, as well as brand logo or slogans to align with corporate identity.
★ Visual & Functional Accessory Configuration
· LED status indicators: dual-mode design (fixed red cross/green arrow or dynamic flowing light effect)
· Swing gates options: tempered glass, acrylic materials or stainless steel; width adjustable within 300-1100mm, with optional logo engraving
★ Optional adding: audio alarm system and ambient LED lighting (with customized color)
★ Portable Version Alternative: An optional model equipped with a steel base is provided for convenient relocation between different sites.
★ Custom Service Consultation: For detailed parameters of customization services, please refer to our dedicated Customization Services page. Direct contact is recommended for special customization needs beyond standard options.
★ Cabinet Material & Surface Finish Options: Cabinet: Core materials include 304/316 stainless steel (for superior corrosion resistance) and powder-coated carbon steel (with customized colors), some special models can use aluminum anodized colors optional. Multiple surface textures are supported: brushed, snowflake, mirror-polished, and matte.
★ Branding Integration: Logo can be applied to the cabinet or swing barrier via engraving or silk-screen printing. In addition, full customization is offered for access control equipment windows size, shape, as well as brand logo or slogans to align with corporate identity.
★ Visual & Functional Accessory Configuration
· LED status indicators: dual-mode design (fixed red cross/green arrow or dynamic flowing light effect)
· Swing gates options: tempered glass, acrylic materials or stainless steel; width adjustable within 300-1100mm, with optional logo engraving
★ Optional adding: audio alarm system and ambient LED lighting (with customized color)
★ Portable Version Alternative: An optional model equipped with a steel base is provided for convenient relocation between different sites.
★ Custom Service Consultation: For detailed parameters of customization services, please refer to our dedicated Customization Services page. Direct contact is recommended for special customization needs beyond standard options.
Optional Accessories
★ RFID card reader
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ Inner or outer counter
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ Inner or outer counter
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us
Warranty
Generally 1year for electric parts, 2years for other parts after delivery. More details please feel free to confirm with us.
Operating & Control
Operating ways
· Single-direction Authorized: One-way access requires verification; reverse direction locked.
· Two-way Verified: Both directions need validation for passage.
· Single-direction Free: One-way unrestricted; reverse direction locked.
· Full-access/Full-lock: Switchable between two-way free flow and full lockdown.
· Two-way Verified: Both directions need validation for passage.
· Single-direction Free: One-way unrestricted; reverse direction locked.
· Full-access/Full-lock: Switchable between two-way free flow and full lockdown.
Control ways
• Access control and time attendance system: RFID card/wristband, biometric/face recognition, computer with management software can also control directly
• Ticket system: QR code wristband/ticket, E-QR code
• coin/token collector or RFID card insert, wristband collector
• Exit button(optional)
• Wireless remote control(optional)
• Manual override keys(optional)
• Ticket system: QR code wristband/ticket, E-QR code
• coin/token collector or RFID card insert, wristband collector
• Exit button(optional)
• Wireless remote control(optional)
• Manual override keys(optional)
Application Scenes
BOLAN speed gate turnstiles gates are recommended to be installed at the high-end, high security and high efficiency requirements sites. The main application suggested as follows:
1
Transportation Hubs (Highest Global Demand)
· Airports: Boarding gates, passport control, VIP lounges
· Rail/Metro: Station entrances/exits, ticket validation
· Bus Terminals/Seaports: Passenger flow management during peak hours
· Rail/Metro: Station entrances/exits, ticket validation
· Bus Terminals/Seaports: Passenger flow management during peak hours
2
Corporate & Commercial Buildings
· Office Lobbies: Employee access control, visitor management, peak-hour throughput
· Business Parks: Secured perimeter access with biometric integration
· Luxury Retail Malls: Premium image + crowd control in high-end shopping centers
· Business Parks: Secured perimeter access with biometric integration
· Luxury Retail Malls: Premium image + crowd control in high-end shopping centers
3
Public & Entertainment Venues
· Stadiums/Arenas: Event entry/exit, ticket verification, post-event crowd dispersal
· Concert Halls/Theaters: Balanced security and quick access for patrons
· Museums/Galleries: Controlled visitor flow while preserving aesthetics
· Unmanned retail stores: Integrated with access control and CCTV systems
· Concert Halls/Theaters: Balanced security and quick access for patrons
· Museums/Galleries: Controlled visitor flow while preserving aesthetics
· Unmanned retail stores: Integrated with access control and CCTV systems
4
Government & Critical Infrastructure
· Government Buildings: High-security access with audit trails
· Power Plants/Data Centers: Restricted area protection against unauthorized entry
· Border Control: Biometric integration for identity verification
· Power Plants/Data Centers: Restricted area protection against unauthorized entry
· Border Control: Biometric integration for identity verification
1
Education & Healthcare
· Universities/Campuses: Student/staff access, library entry control
· Hospitals: Secured zones (ICU, maternity), visitor management, infection control integration
· Hospitals: Secured zones (ICU, maternity), visitor management, infection control integration
2
Hospitality & Leisure
· Luxury Hotels: Lobby access, guest room floor restriction
· Fitness Centers/Spas: Member-only access control
· Theme Parks/Scenic Spots: Ticket validation, crowd management during holidays
· Fitness Centers/Spas: Member-only access control
· Theme Parks/Scenic Spots: Ticket validation, crowd management during holidays
3
Industrial & Logistics
· Manufacturing Plants: Employee access, restricted area protection
· Warehouses: Staff and visitor entry control with time attendance integration
· Warehouses: Staff and visitor entry control with time attendance integration
