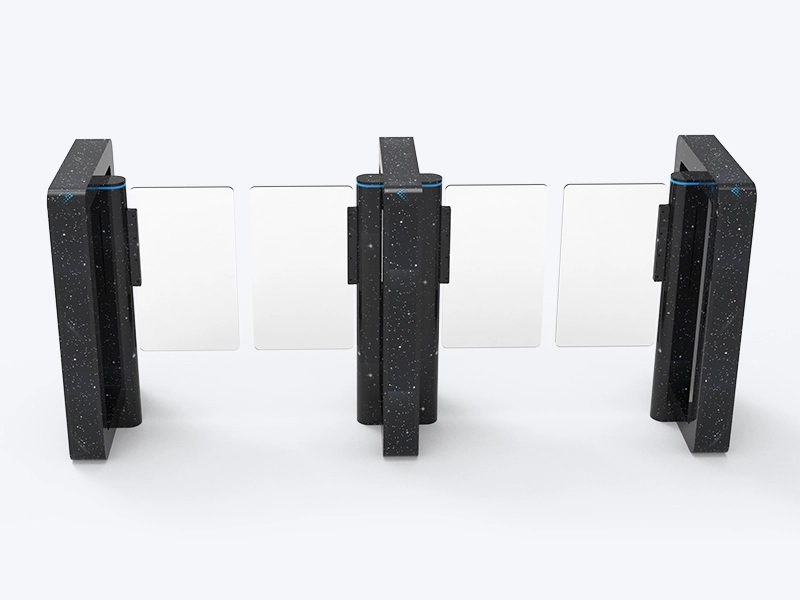

BLS-HS332 High security turnstile speed gate with gate code scanner 1

BLS-HS332 High security turnstile speed gate with gate code scanner 2

BLS-HS332 High security turnstile speed gate with gate code scanner 3

BLS-HS332 High security turnstile speed gate with gate code scanner 4

BLS-HS332 High security turnstile speed gate with gate code scanner 5

BLS-HS332 High security turnstile speed gate with gate code scanner

Name: BLS-HS332 High security turnstile speed gate with gate code scanner
Brand: Bolan

Brand:

BOLAN，Neutral, OEM & ODM Acceptable

Model:

BLS-HS332

MOQ:

1pc

Payment:

T/T before shipping

Delivery time:

One week(Depends on Quantity)

Start Port:

Shenzhen

Certification:

CE, ISO9001

Technology

High-Speed Motor-Driven Gearbox with Braking System

Equipped with an integrated brake mechanism; available in either brushless motor or servo motor configurations as required.

Integrated Intelligent PLC Controller

Features user-friendly programming functionality and operates with low power consumption for cost-efficient performance.

Precision Detection System

Delivers accurate identification of tailgating, unauthorized reverse entry, forced intrusion, and physical tampering attempts.

Adjustable Idle Auto-Lock Function

Triggers automatic locking 30 seconds after the door-opening signal if no pedestrian passage occurs; all timing parameters are fully customizable.

Obstacle Detection & Anti-Pinch Protection

Combines integrated sensors and anti-collision buffers to stop door closure when obstacles are detected; prevents jamming or entrapment in emergency situations.

Power-On Self-Diagnosis Mechanism

The swing gate executes a full automatic operational cycle upon startup to conduct comprehensive self-inspection of system components.

Audiovisual Alarm System

Activates buzzer and warning light alerts in response to tailgating, reverse passage, forced entry incidents, or equipment fault conditions.

Guided Passage Reminders

Clear voice prompts and LED indicators work in tandem to provide intuitive guidance for orderly pedestrian flow.

Features

● High-precision people recognition (avoids luggage/pet false triggers)

● Small size for narrow space sites

● Offline data auto-syncs when network restores

● Wide passage for large luggage/strollers optional

● Ideal for exhibition centers/trade fairs

● Voice prompts guide user verification

● Easy disassembly for temporary event use

● Multi interface for multi management system

Technical Specifications

Parameters	Specification
Material	Frame: 304/316 stainless steel; 316 for coastal ares (superior corrosion resistance), 304 for general indoor/outdoor use, also can use carbon steel powdered coating colors optional
Material	Swing barriers: 10mm thickness Acrylic, tempered glass,PVC or stainless steel
Dimensions	Main body:600mm(length)160mm(width) 915mm(height) Swing barriers: 250mm-350mm width
Passage Width	Standard: 600-750mm customized, some special models can be much wider
Speed Performance	40-50 people/min; Barrier opening time: 0.2-0.5s after authorization (much faster than swing turnstiles)
Power Supply	AC 100-240V (universal voltage);
Power Supply	Control voltage: DC 24V
Motor Parameters	Brushless DC motor; Power: 40-60W; Rotational speed: 3000rpm (stable and low-noise operation)
Motor Parameters	Savor motor, Power: 60-100W; Rotational speed: 3000rpm (stable and low-noise operation)
Interface	Input: relay signal Output: dry contact RS232, RS485
Environmental Resistance	IP54/IP65 rating;
Environmental Resistance	Operating temp: -25℃ to 65℃;

Structure and Dimensions

A modular, high-throughput pedestrian access control device, BOLAN speed gate turnstile features a robust, performance-optimized structure with these core components: main frame(304/316 stainless steel or aluminum, colors optional), swing barriers(tempered glass, acrylic, stainless steel optional), core drive systems and brake system(24V DC brushless motor or savor motor optional), control system(control main board and power supply), sensors (6-16paris infrared sensors), LED indicators and card reader windows(can open windows for parts as your access control devices)

1-1

1-2

1-3

Customization & Accessories

Customization options

★ Dimension & Layout Customization: Full-fit design for on-site space and project-specific technical demands
★ Cabinet Material & Surface Finish: 304/316 stainless steel (anti-corrosion) / custom-color powder-coated steel / optional anodized aluminum; textures: brushed, snowflake, mirror, matte
★ Brand Integration: Logo engraving/silk-screening on cabinets & barriers; custom access control window size/shape for consistent brand identity
★ Visual & Functional Accessories: Dual-mode LED indicators (fixed/dynamic light)
250-350mm adjustable swing gates (tempered glass/acrylic/stainless steel, optional logo)
Optional audio alarm & custom-color ambient lighting
★ Portable Variant Available: Steel-base model for easy on-site relocation & flexible deployment
★ Custom Service Support: Check detailed specs on the Customization Services page; contact us directly for non-standard requests

Optional Accessories

★ RFID card reader
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ Inner or outer counter
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us

Warranty

Generally 1year for electric parts, 2years for other parts after delivery. More details please feel free to confirm with us.

Operating & Control

Operating ways

· Single-direction Authorized: One-way access requires verification; reverse direction locked.
· Two-way Verified: Both directions need validation for passage.
· Single-direction Free: One-way unrestricted; reverse direction locked.
· Full-access/Full-lock: Switchable between two-way free flow and full lockdown.

Control ways

• Access control and time attendance system: RFID card/wristband, biometric/face recognition, computer with management software can also control directly
• Ticket system: QR code wristband/ticket, E-QR code
• coin/token collector or RFID card insert, wristband collector
• Exit button(optional)
• Wireless remote control(optional)
• Manual override keys(optional)

Application Scenes

BOLAN speed gate turnstiles are engineered for deployment at high-end locations requiring stringent security standards and efficient pedestrian flow management. Their ideal application scenarios are categorized as follows:

Transport Terminals (Global Highest-Demand Scenario)

· Airports: Boarding gate checkpoints, passport inspection counters, VIP lounge access points
· Railway/Metro Stations: Entrance and exit passages, ticket authentication checkpoints
· Bus Depots & Seaports: Streamlined passenger flow management during peak traffic hours

Commercial & Office Premises

· Office Building Lobbies: Staff access authorization, visitor registration, and peak-hour throughput optimization
· Corporate Business Parks: Perimeter security control integrated with biometric identification systems
· High-End Shopping Malls: Enhancing premium brand image while regulating pedestrian traffic in upscale commercial zones

Public &Entertainment Venues

· Sports Stadiums & Arenas: Event entry/exit management, ticket validation, and smooth post-event crowd evacuation
· Concert Halls & Theaters: Balancing strict security protocols with fast, convenient entry for attendees
· Museums & Art Galleries: Regulating visitor flow while preserving the venues' aesthetic integrity
· Unmanned Retail Outlets: Seamless integration with access control and CCTV surveillance systems

Government & Critical Infrastructure Facilities

· Government Office Complexes: High-level security access with comprehensive access audit trails
· Power Plants & Data Centers: Restricting access to sensitive areas to prevent unauthorized intrusion
· Border Control Checkpoints: Integration with biometric systems for accurate identity verification

Education & Healthcare Institutions

· University Campuses: Staff and student access management, library entry control
· Medical Facilities: Securing restricted zones (e.g., ICUs, maternity wards), visitor management, and compatibility with infection control protocols

Hospitality & Leisure Venues

· Upscale Hotels: Lobby access control, restricted entry to guest room floors
· Fitness Clubs & Spas: Member-exclusive access management
· Theme Parks & Scenic Attractions: Ticket validation and crowd flow regulation during holiday peak periods

Industrial & Logistics Facilities

· Manufacturing Factories: Staff access control and restricted area protection
· Warehouses: Entry management for employees and visitors, integrated with time and attendance systems
