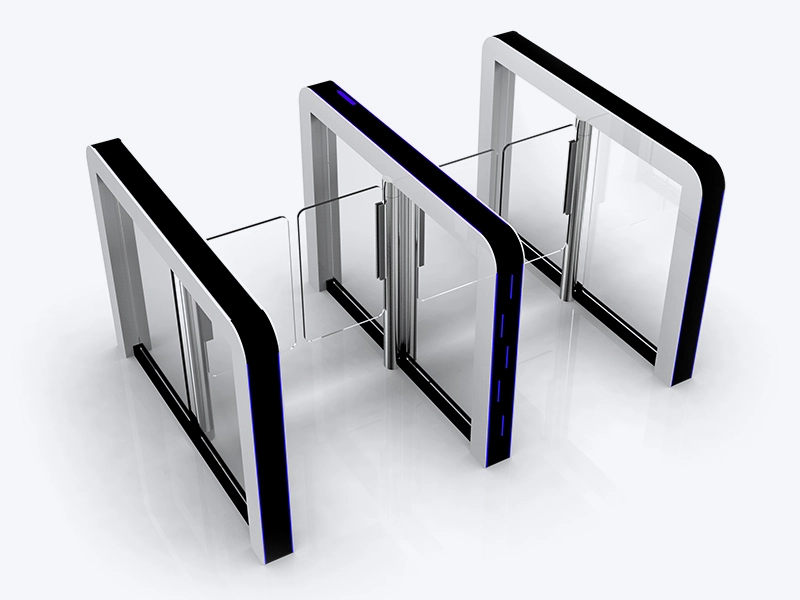

BLS-HS326 People recognition speed turnstile with RFID card reader
5.0
Brand:
BOLAN，Neutral, OEM & ODM Acceptable
Model:
BLS-HS326
MOQ:
2pc
Payment:
T/T before shipping
Delivery time:
One week(Depends on Quantity)
Start Port:
Shenzhen
Certification:
CE, ISO9001
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technology
High-Efficiency Motor & Brake System
Brushless or servo motors coupled with planetary brakes deliver smooth, highly responsive barrier movement.
Intelligent PLC Control Unit
User-friendly programming interface, low power consumption, and cost-efficient long-term operation.
Precision Multi-Scenario Detection System
Reliably identifies tailgating, unauthorized reverse access, forced intrusion attempts, and equipment tampering.
Customizable Auto-Lock Reset Feature
Auto-engages lock 30 seconds after authorization (no passage); all timing settings are fully adjustable.
Advanced Anti-Pinch & Obstacle Detection
6–16 infrared sensor pairs plus anti-collision buffers immediately stop barrier closure on obstacle detection, eliminating risks of jamming and entrapment.
Power-On Full Self-Diagnostic Function
Initiates a full operational check upon power-up to verify the system’s overall stability and integrity.
Features
● Hidden wiring for neat, aesthetic security designs
● Illegal intrusion alarm prevents unauthorized crossing
● Group access control for multiple authorized persons
● Elevator linkage (auto-calls elevator post-verification)
● Ideal for airports/railway stations
● Emergency stop button for manual control
● Low-noise motor (libraries/hospitals)
● Custom color options (silver/black/blue) and design
Technical Specifications
| Parameters | Specification |
| Material | Frame:304stainless steel powder coating colors Carbon steel, 316stainless steel optional |
| Swing barriers: 10mm thickness Acrylic, tempered glass,PVC or stainless steel | |
| Dimensions | Main body:1500mm(length)*150mm(width)*1000mm(height) Swing barriers: 300mm-450mm width |
| Passage Width | Standard: 600-900mm customized, some special models can be much wider |
| Speed Performance | 30-40 people/min; Barrier opening time: 0.2-0.5s after authorization (much faster than swing turnstiles) |
| Power Supply | AC 100-240V (universal voltage); |
| Control voltage: DC 24V | |
| Motor Parameters | Brushless DC motor; Power: 40-60W; Rotational speed: 3000rpm (stable and low-noise operation) |
| Savor motor, Power: 60-100W; Rotational speed: 3000rpm (stable and low-noise operation) | |
| Interface | Input：relay signal; output: dry contact RS232, RS485 |
| Environmental Resistance | IP54/IP65 rating; |
| Operating temp: -25℃ to 65℃; |
Structure and Dimensions
A modular, high-throughput pedestrian access control device, BOLAN speed gate turnstile features a robust, performance-optimized structure with these core components: main frame(304/316 stainless steel or aluminum, colors optional), swing barriers(tempered glass, acrylic, stainless steel optional), core drive systems and brake system(24V DC brushless motor or savor motor optional), control system(control motherboard and daughterboard, power supply), sensors (6-16paris infrared sensors), LED indicators and card reader windows(can open windows for parts as your access control devices)
drawing1 拷贝 (11)
drawing2 拷贝 (11)
drawing3 拷贝 (7)
Customization & Accessories
Customization options
★ Flexible Custom Design Solutions: Turn your unique concepts into reality with fully tailored options for BOLAN speed gate turnstiles
★ Tailored Size & Layout Planning: Precisely adapted to on-site spatial conditions and specific project requirements
★ Premium Materials & Surface Finishes: Options include 304/316 stainless steel, powder-coated steel (custom color matching), and premium anodized aluminum; available textures: brushed, snowflake, mirror, and matte
★ Brand Integration Customization: Logo engraving or silk-screen printing on cabinets and barrier wings; custom-sized and shaped access control windows to maintain brand consistency
★ Versatile Accessory Add-Ons: Dual-mode LED indicators; 250–450mm adjustable-width barrier gates (available in glass, acrylic, or steel, with optional logo); optional audio alarms and custom ambient LED lighting
★ Portable Configuration Option: Optional steel base design for convenient on-site relocation and temporary deployment
★ Dedicated Customization Support: Detailed information available on the Customization Services page; direct inquiries are welcome for special customization needs
★ Tailored Size & Layout Planning: Precisely adapted to on-site spatial conditions and specific project requirements
★ Premium Materials & Surface Finishes: Options include 304/316 stainless steel, powder-coated steel (custom color matching), and premium anodized aluminum; available textures: brushed, snowflake, mirror, and matte
★ Brand Integration Customization: Logo engraving or silk-screen printing on cabinets and barrier wings; custom-sized and shaped access control windows to maintain brand consistency
★ Versatile Accessory Add-Ons: Dual-mode LED indicators; 250–450mm adjustable-width barrier gates (available in glass, acrylic, or steel, with optional logo); optional audio alarms and custom ambient LED lighting
★ Portable Configuration Option: Optional steel base design for convenient on-site relocation and temporary deployment
★ Dedicated Customization Support: Detailed information available on the Customization Services page; direct inquiries are welcome for special customization needs
Optional Accessories
★ RFID card reader
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us
Warranty
Generally 1year for electric parts, 2years for other parts after delivery. More details please feel free to confirm with us.
Operating & Control
Operating ways
· Single-Direction Validated Access: One-way passage needs validation; reverse direction stays locked
· Bi-Directional Credentialed Access: Credential verification is required for both entry and exit
· Single-Direction Unrestricted Flow: Free passage in one direction; reverse access is locked by default
· Dual-Mode (Full Open/Full Lock): Enables smooth switching between two-way free pedestrian flow and full system lockdown
· Bi-Directional Credentialed Access: Credential verification is required for both entry and exit
· Single-Direction Unrestricted Flow: Free passage in one direction; reverse access is locked by default
· Dual-Mode (Full Open/Full Lock): Enables smooth switching between two-way free pedestrian flow and full system lockdown
Control ways
• Access control and time attendance system: RFID card/wristband, biometric/face recognition, computer with management software can also control directly
• Ticket system: QR code wristband/ticket, E-QR code
• coin/token collector or RFID card insert, wristband collector
• Exit button(optional)
• Wireless remote control(optional)
• Manual override keys(optional)
•Any other control system or solutions please confirm with us
• Ticket system: QR code wristband/ticket, E-QR code
• coin/token collector or RFID card insert, wristband collector
• Exit button(optional)
• Wireless remote control(optional)
• Manual override keys(optional)
•Any other control system or solutions please confirm with us
Application Scenes
1
Transit Hubs
Airports, rail/metro stations, bus terminals, seaports – access control, ticket validation, and efficient peak-hour crowd control
2
Corporate & Premium Commercial Spaces
Office lobbies, business parks, luxury shopping malls – staff/visitor access management, biometric security integration, and organized crowd flow
3
Public Recreation & Cultural Venues
Stadiums, theaters, museums – fast entry verification, smooth pedestrian throughput, and aesthetic crowd management solutions
4
Government & Critical Infrastructure Facilities
Government buildings, power plants, border checkpoints – top-tier access security, full audit trail tracking, and biometric identity validation
1
Education & Medical Institutions
School campuses, hospitals – zoned access control, secure area safeguarding, and pedestrian flow optimized for infection control compliance
2
Hospitality & Leisure Destinations
Luxury hotels, fitness centers, theme parks – member/guest access validation, ticket checking, and crowd regulation during holiday surges.
3
Industrial & Logistics Facilities
Manufacturing workshops, warehouses – restricted zone protection, and integrated access control & time attendance management.
