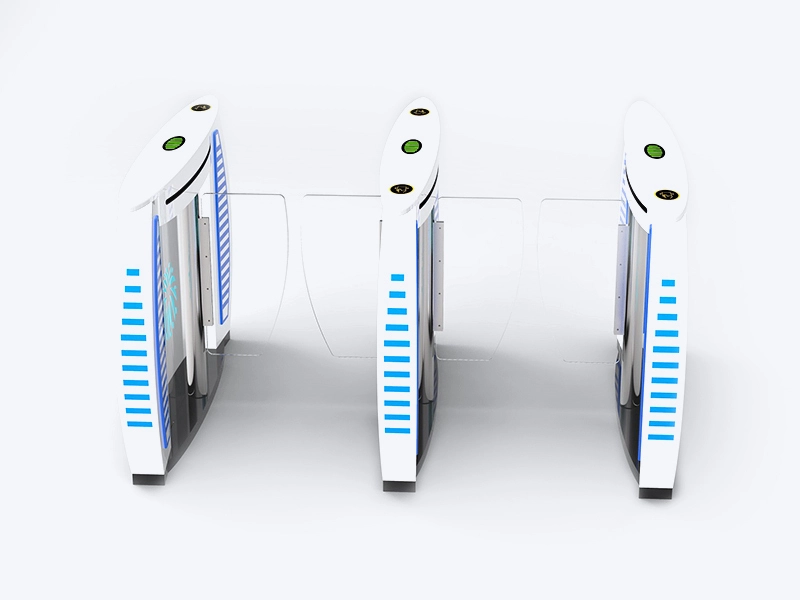

BLS-HS335 People Recognition Speed Gate Turnstile with RFID Card Reader
5.0
Brand:
BOLAN，Neutral, OEM & ODM Acceptable
Model:
BLS-HS335
MOQ:
2pc
Payment:
T/T before shipping
Delivery time:
One week(Depends on Quantity)
Start Port:
Shenzhen
Certification:
CE, ISO9001
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technology
High-Power Motor & Brake Setup
Brushless or servo motors paired with planetary brakes enable smooth, highly responsive barrier operation.
Intelligent PLC Control Unit
Easy-to-use programming, minimal power draw, and cost-effective long-term performance.
Multi-Scenario Precise Detection
Consistently detects tailgating, unauthorized reverse access, forced breaches, and equipment tampering.
Customizable Auto-Lock Reset Feature
Locks automatically 30 seconds after authorization (if no one passes through); all timing settings are fully adjustable.
Enhanced Anti-Pinch & Obstacle Sensing
6–16 infrared sensor pairs plus anti-collision buffers instantly halt barrier closure when obstacles are detected, removing jamming and entrapment hazards.
Startup Full Self-Diagnosis
Runs a full operational cycle on startup to confirm the system's overall stability and integrity.
Audio-Visual Alert System
Activates real-time alerts for abnormal situations such as tailgating, reverse passage, forced entry, or equipment faults.
Intuitive Passage Guidance
Distinct voice prompts and LED indicators provide intuitive guidance for every user.
Features
● Minimalist concept gate design for modern venues
● Overheat protection prevents motor damage
● Low power consumption to save energy
● Custom swing patterns/colors for aesthetics
● Multi interface for multi management system
● Voice and LED indicators guide user verification
● Automatic Self-inspection function
● Easy installation and maintenance
Technical Specifications
| Parameters | Specification |
| Material | Frame:304stainless steel powder coating colors Carbon steel, 316stainless steel optional |
| Swing barriers: 10mm thickness Acrylic, tempered glass,PVC or stainless steel | |
| Dimensions | Main body:1500mm(length)*185mm(width)*980mm(height) Swing barriers: 300mm-450mm width |
| Passage Width | Standard: 600-900mm customized, some special models can be much wider |
| Speed Performance | 30-40 people/min; Barrier opening time: 0.2-0.5s after authorization (much faster than swing turnstiles) |
| Power Supply | AC 100-240V (universal voltage); |
| Control voltage: DC 24V | |
| Motor Parameters | Brushless DC motor; Power: 40-60W; Rotational speed: 3000rpm (stable and low-noise operation) |
| Savor motor, Power: 60-100W; Rotational speed: 3000rpm (stable and low-noise operation) | |
| Interface | Input：relay signal; output: dry contact RS232, RS485 |
| Environmental Resistance | IP54/IP65 rating; |
| Operating temp: -25℃ to 65℃; |
Structure and Dimensions
A modular, high-throughput pedestrian access control device, BOLAN speed gate turnstile features a robust, performance-optimized structure with these core components: main frame(304/316 stainless steel or aluminum, colors optional), swing barriers(tempered glass, acrylic, stainless steel optional), core drive systems and brake system(24V DC brushless motor or savor motor optional), control system(control motherboard and daughterboard, power supply), sensors (6-16paris infrared sensors), LED indicators and card reader windows(can open windows for parts as your access control devices)
0-1
0-2
0-3
Customization & Accessories
Customization options
★ Custom Design Flexibility: Transform your unique concepts into practical solutions with fully customizable BOLAN speed gate turnstiles
★ Tailored Dimensions & Layout: Custom-built to fit on-site space limitations and meet project-specific requirements
★ Premium Material & Finish Selections: Options cover 304/316 stainless steel, powder-coated steel (custom color matching), premium anodized aluminum; available textures: brushed, snowflake, mirror, matte
★ Brand-Focused Customization: Logo engraving or silk-screening on turnstile cabinets and barrier wings; custom-sized and shaped access control windows for a unified brand image
★ Optional Accessory Upgrades: Dual-mode LED indicators; 250–450mm adjustable-width barrier gates (glass/acrylic/stainless steel, logo optional); add-on audio alarms and custom ambient LED lighting available
★ Portable Configuration Option: Optional steel-base version for convenient on-site relocation
★ Professional Customization Support: Refer to the Customization Services page for details; direct inquiries are welcome for specialized demands
★ Tailored Dimensions & Layout: Custom-built to fit on-site space limitations and meet project-specific requirements
★ Premium Material & Finish Selections: Options cover 304/316 stainless steel, powder-coated steel (custom color matching), premium anodized aluminum; available textures: brushed, snowflake, mirror, matte
★ Brand-Focused Customization: Logo engraving or silk-screening on turnstile cabinets and barrier wings; custom-sized and shaped access control windows for a unified brand image
★ Optional Accessory Upgrades: Dual-mode LED indicators; 250–450mm adjustable-width barrier gates (glass/acrylic/stainless steel, logo optional); add-on audio alarms and custom ambient LED lighting available
★ Portable Configuration Option: Optional steel-base version for convenient on-site relocation
★ Professional Customization Support: Refer to the Customization Services page for details; direct inquiries are welcome for specialized demands
Optional Accessories
★ RFID card reader
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us
Warranty
Generally 1year for electric parts, 2years for other parts after delivery. More details please feel free to confirm with us.
Operating & Control
Operating ways
· One-Way Authorized Access: One-way passage requires authentication; reverse direction remains locked
· Two-Way Verified Access: Both inbound and outbound passages demand credential verification
· One-Way Free Flow: Unrestricted passage in one direction; reverse access is locked by default
· Dual-Mode (Full Access/Full Lock): Supports seamless switching between two-way free pedestrian flow and full system lockdown
· Two-Way Verified Access: Both inbound and outbound passages demand credential verification
· One-Way Free Flow: Unrestricted passage in one direction; reverse access is locked by default
· Dual-Mode (Full Access/Full Lock): Supports seamless switching between two-way free pedestrian flow and full system lockdown
Control ways
• Access control and time attendance system: RFID card/wristband, biometric/face recognition, computer with management software can also control directly
• Ticket system: QR code wristband/ticket, E-QR code
• coin/token collector or RFID card insert, wristband collector
• Exit button(optional)
• Wireless remote control(optional)
• Manual override keys(optional)
•Any other control system or solutions please confirm with us
• Ticket system: QR code wristband/ticket, E-QR code
• coin/token collector or RFID card insert, wristband collector
• Exit button(optional)
• Wireless remote control(optional)
• Manual override keys(optional)
•Any other control system or solutions please confirm with us
Application Scenes
1
Transportation Hubs
Airports, rail/metro stations, bus terminals, seaports – access control, ticket validation, and optimized peak-time crowd management
2
Commercial & Corporate Spaces
Office lobbies, business parks, high-end shopping malls – staff/visitor access management, biometric security implementation, and orderly crowd guidance
3
Public & Entertainment Venues
Stadiums, theaters, museums – rapid entry inspection, seamless pedestrian flow, and aesthetic crowd control solutions
4
Government & Critical Infrastructure
Government buildings, power facilities, border checkpoints – top-tier security access, full-process audit trails, and biometric identity authentication
1
Education & Healthcare Institutions
School campuses, hospitals – zoned access regulation, secure area protection, and pedestrian flow designed to meet infection control standards
2
Hospitality & Leisure Venues
Luxury hotels, fitness clubs, theme parks – member/guest access verification, ticket checking, and crowd management during holiday peaks
3
Industrial & Logistics Sites
Manufacturing factories, warehouses – restricted zone security, and integrated access control & time attendance systems
