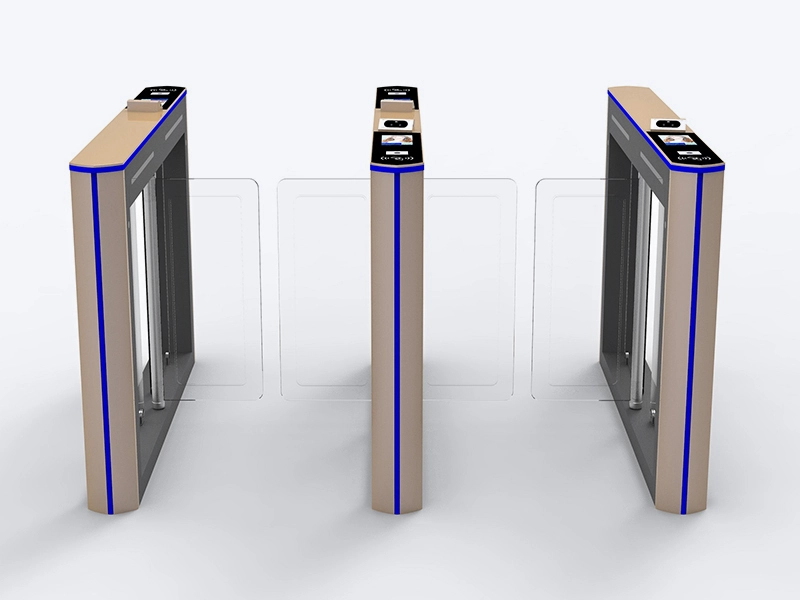

Fastlane Speed Gate Physical Security Pedestrian Turnstile BLS-HS337
High-Performance Motor & Brake Configuration
Brushless or servo motor combined with planetary brake enables smooth, responsive barrier movement.
Smart PLC Control Module
User-friendly programming, low power consumption, and cost-efficient long-term operation.
Multi-Scenario Accurate Detection
Reliably identifies tailgating, unauthorized reverse entry, forced intrusion, and equipment tampering incidents.
Adjustable Auto-Lock Reset Function
Automatically engages lock 30 seconds post-authorization (if no passage occurs); all timing parameters are fully customizable.
Upgraded Anti-Pinch & Obstacle Detection
6–16 pairs of infrared sensors plus anti-collision buffers immediately stop barrier closure upon obstacle detection, eliminating jamming and entrapment risks.
Power-On Full Self-Check
Initiates a complete operational cycle at startup to verify overall system stability and integrity. movement.
Audio-Visual Alarm Mechanism
Triggers real-time alerts for abnormal events like tailgating, reverse passage, forced entry, or equipment malfunctions.
User-Friendly Passage Guidance
Clear voice prompts and LED indicators deliver intuitive navigation for all users.
Features
● Comprehensive anti-intrusion protection solutions
● 30-40 persons/min balanced throughput (efficiency + security)
● Emergency evacuation (auto-opens all swings)
● Remote firmware updates (no on-site maintenance)
● Adjustable sensor sensitivity for crowd density
● Ideal for malls/supermarkets/retail stores
● LED indicators for clear passage guidance
● ≤45dB low-noise operation (shopping environments)
● 24/7 lifetime technical support
Technical Specifications
| Parameters | Specification |
| Material | Frame: anodized aluminum colors optional |
| Swing barriers: 10mm thickness Acrylic, tempered glass,PVC or stainless steel | |
| Dimensions | Main body:1400mm(length)*140mm(width)*980mm(height) Swing barriers: 300mm-450mm width |
| Passage Width | Standard: 600-900mm customized, some special models can be much wider |
| Speed Performance | 30-40 people/min; Barrier opening time: 0.2-0.5s after authorization (much faster than swing turnstiles) |
| Power Supply | AC 100-240V (universal voltage); |
| Control voltage: DC 24V | |
| Motor Parameters | Brushless DC motor; Power: 40-60W; Rotational speed: 3000rpm (stable and low-noise operation) |
| Savor motor, Power: 60-100W; Rotational speed: 3000rpm (stable and low-noise operation) | |
| Interface | Input：relay signal; output: dry contact RS232, RS485 |
| Environmental Resistance | IP54/IP65 rating; |
| Operating temp: -25℃ to 65℃; |
Structure and Dimensions
A modular, high-throughput pedestrian access control device, BOLAN speed gate turnstile features a robust, performance-optimized structure with these core components：main frame(304/316 stainless steel or aluminum, colors optional), swing barriers(tempered glass, acrylic, stainless steel optional), core drive systems and brake system(24V DC brushless motor or savor motor optional), control system(control motherboard and daughterboard, power supply), sensors (6-16paris infrared sensors), LED indicators and card reader windows(can open windows for parts as your access control devices)
Customization & Accessories
★ Customizable Dimensions & Layout: Tailored to fit on-site space limits and specific project specifications
★ High-Grade Materials & Surface Finishes: Choose from 304/316 stainless steel, powder-coated steel (with custom color options), or premium anodized aluminum; available textures: brushed, snowflake, mirror, matte
★ Brand-Aligned Customization: Logo engraving or silk-screening on turnstile cabinets and barrier wings; custom-sized and shaped access control windows for consistent brand presentation
★ Optional Accessory Upgrades: Dual-mode LED indicators; 250–450mm adjustable-width barrier gates (glass/acrylic/stainless steel, logo optional); add-on audio alarms and custom ambient LED lighting available
★ Portable Model Option: Optional steel-base version for easy on-site relocation
★ Professional Customization Support: Check the Customization Services page for details; direct inquiries are welcome for special requirements
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us
Operating & Control
· Dual-Direction Verified Access: Credential check required for both inbound and outbound entry
· Single-Direction Free Passage: Unrestricted flow in one direction; reverse access locked by default
· Full Access/Full Lock Dual-Mode: Seamlessly switch between two-way free pedestrian flow and full system lockdown
• Ticket system: QR code wristband/ticket, E-QR code
• coin/token collector or RFID card insert, wristband collector
• Exit button(optional)
• Wireless remote control(optional)
• Manual override keys(optional)
•Any other control system or solutions please confirm with us
Application Scenes
