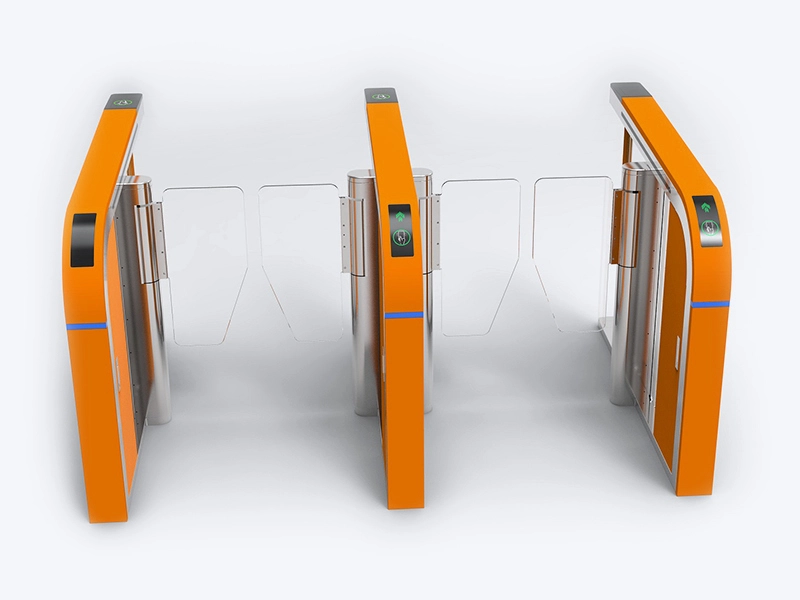

BLS-HS338 Optical Speed Gate Turnstile
5.0
Brand:
BOLAN，Neutral, OEM & ODM Acceptable
Model:
BLS-HS338
MOQ:
2pc
Payment:
T/T before shipping
Delivery time:
One week(Depends on Quantity)
Start Port:
Shenzhen
Certification:
CE, ISO9001
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technology
Premium Motor & Braking System
Brushless or servo motor paired with planetary brake ensures smooth, snappy barrier movement.
Intelligent PLC Controller
Simple programming, minimal power draw, and cost-saving long-term operation.
Multi-Scenario Precision Detection
Accurately identifies tailgating, reverse entry, forced intrusion, and equipment tampering.
Customizable Auto-Lock Reset
Locks automatically 30 seconds after authorization (no passage); all timing parameters are fully adjustable.
Enhanced Anti-Pinch & Obstacle Sensing
6–16 infrared sensor pairs plus buffers halt barrier closing instantly when obstacles are detected, avoiding jamming or entrapment.
Startup Self-Diagnosis
Runs a full operational check on power-up to confirm system stability.
Sound & Light Alarm System
Activates alerts for tailgating, reverse passage, forced entry, or equipment faults.
Intuitive Passage Guidance
Voice prompts and LED indicators guide users intuitively.
Features
● -20℃ to 60℃ wide temperature adaptability
● 10,000,000+ fault-free operation cycles (industrial-grade durability)
● Fire alarm linkage (auto-opens wings in 0.1s for evacuation)
● Remote control via cloud platform (unlock/lock in real time)
● Temporary visitor authorization (valid for 1–24h)
● Anti-vandalism reinforced steel panel optional(resists 500kg impact)
● Clear audio and LED indicator clear guidance
● Compatible with multi access control systems
Technical Specifications
| Parameters | Specification |
| Material | Frame:304stainless steel powder coating colors Carbon steel, 316stainless steel optional |
| Swing barriers: 10mm thickness Acrylic, tempered glass,PVC or stainless steel | |
| Dimensions | Main body:1500mm(length)*150mm(width)*1000mm(height) Swing barriers: 300mm-450mm width |
| Passage Width | Standard: 600-900mm customized, some special models can be much wider |
| Speed Performance | 30-40 people/min; Barrier opening time: 0.2-0.5s after authorization (much faster than swing turnstiles) |
| Power Supply | AC 100-240V (universal voltage); |
| Control voltage: DC 24V | |
| Motor Parameters | Brushless DC motor; Power: 40-60W; Rotational speed: 3000rpm (stable and low-noise operation) |
| Savor motor, Power: 60-100W; Rotational speed: 3000rpm (stable and low-noise operation) | |
| Interface | Input：relay signal; output: dry contact RS232, RS485 |
| Environmental Resistance | IP54/IP65 rating; |
| Operating temp: -25℃ to 65℃; |
Structure and Dimensions
A modular, high-throughput pedestrian access control device, BOLAN speed gate turnstile features a robust, performance-optimized structure with these core components: main frame(304/316 stainless steel or aluminum, colors optional), swing barriers(tempered glass, acrylic, stainless steel optional), core drive systems and brake system(24V DC brushless motor or savor motor optional), control system(control motherboard and daughterboard, power supply), sensors (6-16paris infrared sensors), LED indicators and card reader windows(can open windows for parts as your access control devices)
CD-K221飞天豪华速通门双通道标注图 拷贝
7-1
7-2
7-3
Customization & Accessories
Customization options
★ Tailored Design Solutions: Translate your unique ideas into reality with fully flexible customization for BOLAN speed gate turnstiles
★ Custom Size & Layout: Custom-fitted to match on-site spatial constraints and specific project specifications
★ Premium Materials & Finishes: Options include 304/316 stainless steel, powder-coated steel (custom color matching), anodized aluminum (premium grade); available textures: brushed, snowflake, mirror, matte
★ Brand-Centric Customization: Logo engraving or silk-screening on cabinets and barrier wings; custom-sized and shaped access control windows to align with your brand identity
★ Versatile Accessory Options: Dual-mode LED indicators; 250–450mm adjustable-width barrier gates (glass/acrylic/stainless steel materials, logo customization optional); add-on audio alarms and custom-color ambient LED lighting available
★ Portable Configuration: Optional steel-base variant enabling hassle-free on-site relocation
★ Dedicated Custom Support: Refer to the Customization Services page for details; direct inquiries welcome for specialized requirements
★ Custom Size & Layout: Custom-fitted to match on-site spatial constraints and specific project specifications
★ Premium Materials & Finishes: Options include 304/316 stainless steel, powder-coated steel (custom color matching), anodized aluminum (premium grade); available textures: brushed, snowflake, mirror, matte
★ Brand-Centric Customization: Logo engraving or silk-screening on cabinets and barrier wings; custom-sized and shaped access control windows to align with your brand identity
★ Versatile Accessory Options: Dual-mode LED indicators; 250–450mm adjustable-width barrier gates (glass/acrylic/stainless steel materials, logo customization optional); add-on audio alarms and custom-color ambient LED lighting available
★ Portable Configuration: Optional steel-base variant enabling hassle-free on-site relocation
★ Dedicated Custom Support: Refer to the Customization Services page for details; direct inquiries welcome for specialized requirements
Optional Accessories
★ RFID card reader
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us
Warranty
Generally 1year for electric parts, 2years for other parts after delivery. More details please feel free to confirm with us.
Operating & Control
Operating ways
· One-Way Authorized: One-way access via verification; reverse locked
· Two-Way Verified: Both in/out require credential check
· One-Way Free: Unrestricted one-way passage; reverse locked
· Full Access/Lock Mode: Switchable between two-way free flow or full lockdown
· Two-Way Verified: Both in/out require credential check
· One-Way Free: Unrestricted one-way passage; reverse locked
· Full Access/Lock Mode: Switchable between two-way free flow or full lockdown
Control ways
• Access control and time attendance system: RFID card/wristband, biometric/face recognition, computer with management software can also control directly
• Ticket system: QR code wristband/ticket, E-QR code
• coin/token collector or RFID card insert, wristband collector
• Exit button(optional)
• Wireless remote control(optional)
• Manual override keys(optional)
•Any other control system or solutions please confirm with us
• Ticket system: QR code wristband/ticket, E-QR code
• coin/token collector or RFID card insert, wristband collector
• Exit button(optional)
• Wireless remote control(optional)
• Manual override keys(optional)
•Any other control system or solutions please confirm with us
Application Scenes
1
Transportation Terminals
Airports, railway/metro stations, bus hubs, seaports – access management, ticket validation, and efficient peak-hour crowd control
2
Corporate & Commercial Premises
Office lobbies, business parks, upscale shopping malls – staff/visitor access control, biometric security deployment, and streamlined crowd guidance
3
Public & Entertainment Venues
Stadiums, theaters, museums – quick entry verification, smooth pedestrian flow, and aesthetic crowd management
4
Government & Critical Infrastructure
Government buildings, power plants, border checkpoints – high-level security access, comprehensive audit trails, and biometric identity verification
1
Education & Healthcare Sectors
Campuses, hospitals – zoned access management, secured area protection, and infection control-compliant pedestrian flow
2
Hospitality & Leisure Facilities
Luxury hotels, fitness centers, theme parks – member/guest access validation, ticket checking, and holiday peak crowd regulation
3
Industrial & Logistics Zones
Manufacturing plants, warehouses – restricted zone safeguarding, and integrated access & time attendance management
