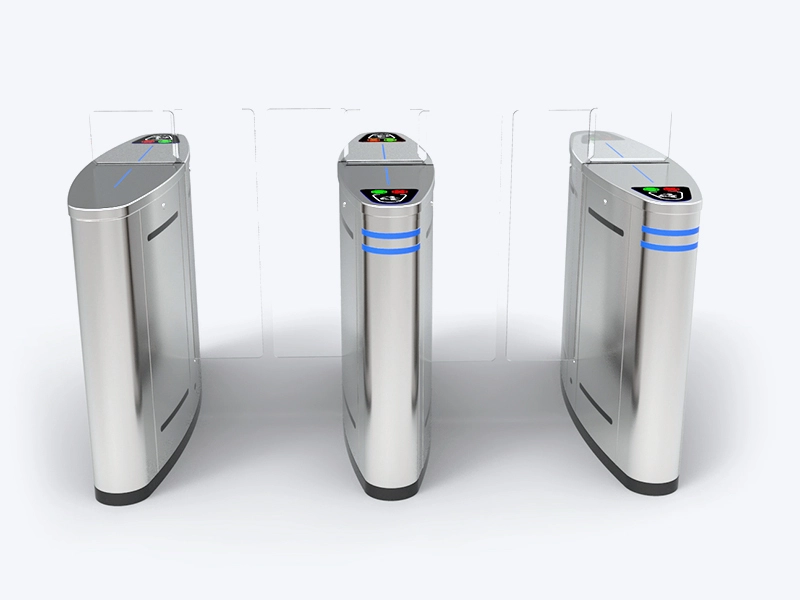

BLS-SG31 Stainless steel sliding turnstile high security gates and access
5.0
Brand:
BOLAN，Neutral, OEM & ODM Acceptable
Model:
BLS-SG31
MOQ:
1pc
Payment:
T/T before shipping
Delivery time:
One week(Depends on Quantity)
Start Port:
Shenzhen
Certification:
CE, ISO9001
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technology
Auto-lock function
Locks in 30 seconds automatically after opening with no passage (timing adjustable)
Anti-pinch safety design
Prevents arm jamming or passenger entrapment during sudden power off
Anti-reverse system
Blocks unauthorized passing through the sliding gates in the reverse direction
Ultra heavy
Duty high speed motor drive and gearbox for strong, stable power output and low-noise operation
Built
In intelligent PLC controller to support linkage with external authentication devices and custom access logic programming
Anti-tailgating solutions
Avoids unauthorized passage following authorized passage.
Safety
Equipped series of detectors and anti-collision buffers to prevent closing during a person or object in channels.
Features
● 304/316 stainless steel body, durable and corrosion-resistant
● Built-in anti-tailgating detection to prevent unauthorized entry
● Intelligent anti-pinch sensors for pedestrian safety
● 20-40 persons/min passage speed, suitable for medium-high traffic
● Power-off auto door opening, meets fire safety requirements
● Compatible with existing access control and time attendance system
● Customized dimensions and passage width, sliding doors height
● Adding light strip to suit for your decoration style optional
Technical Specifications
| Parameter | Specification |
| Material | 304/316 stainless steel, carbon steel coating (main body, colors optional); |
| 10mm CNC tempered glass or acrylic (sliding doors) | |
| Overall Dimensions | Typically 1400mm (L) × 350mm (W) × 1000mm (H); Sliding door width: 280mm + 280mm; Door height: 1200–1800mm (customized for different application scenarios) |
| Passage Width | Standard: 600mm; Maximum: 900mm (main body size needs to be adjusted accordingly) |
| Passage Speed | 20–30 persons per minute (normal mode); |
| Up to 40 persons per minute (fast mode) | |
| Operating Voltage | AC110- 240V ±10%, 50Hz |
| Drive Voltage | DC 12V + DC 18V |
| Operating Current | Standby: ≤0.5A; Working: ≤2A |
| Signal interface | Input: Relay signal |
| Output: Dry contact | |
| RS232, RS485, TCP/IP | |
| Working Temperature | -20℃ to 60℃ |
| Protection Level | IP54 (IP65 optional for outdoor use) |
| Emergency Response | Automatic door opening when power off |
Structure and Dimensions
A sliding barrier gate comprises a stainless steel or carbon steel coating main frame, paired horizontal sliding barrier (tempered glass or acrylic)panels (guided by rails for single-person access/anti-tailgating), an internal brushless motor-transmission & control unit(main board, power supply) (connectable to external authentication devices), and embedded infrared sensors for safety.
drawing1 拷贝 (8)
drawing2 拷贝 (8)
drawing3 拷贝 (5)
Customization & Accessories
Customization options
★ Tailored design & dimensions – Customized to match your site layout and project requirements
★ Diverse materials & finishes – 304/316 stainless steel, powder-coated carbon steel (custom colors); brushed, snowflake, mirror or matte textures
★ Custom logo application – Applied via stainless steel plate engraving or silk-screen printing on cabinet or sliding doors
★ Flexible LED indicators – Choose fixed red X/green arrow or dynamic flowing light arrows
★ Custom reader window – Customized size, shape, logo and slogan
★ Sliding doors customization – Sliding doors can use tempered glass and acrylic optional, height from 1200-1800mm optional, engraving logo or slogan optional
★ Optional audio alarm – Available for on-demand installation
★ Ambient lighting – Adding LED lighting to suit for your decoration style, colors optional
★ Portable version – Equipped with powder-coated carbon steel base for easy relocation
★ For more details, visit our Customization Services page. Reach out to us for special customization requests.
★ Diverse materials & finishes – 304/316 stainless steel, powder-coated carbon steel (custom colors); brushed, snowflake, mirror or matte textures
★ Custom logo application – Applied via stainless steel plate engraving or silk-screen printing on cabinet or sliding doors
★ Flexible LED indicators – Choose fixed red X/green arrow or dynamic flowing light arrows
★ Custom reader window – Customized size, shape, logo and slogan
★ Sliding doors customization – Sliding doors can use tempered glass and acrylic optional, height from 1200-1800mm optional, engraving logo or slogan optional
★ Optional audio alarm – Available for on-demand installation
★ Ambient lighting – Adding LED lighting to suit for your decoration style, colors optional
★ Portable version – Equipped with powder-coated carbon steel base for easy relocation
★ For more details, visit our Customization Services page. Reach out to us for special customization requests.
Optional Accessories
★ RFID card reader
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ Inner or outer counter
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ Inner or outer counter
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us
Warranty
1year for electric parts, 2years for other parts after delivery. More details please feel free to confirm with us.
Operating & Control
Operating ways
· Single-direction authorized: Only one way needs access approval; the other stays locked.
· Two-way verified: Both entry and exit require validation for orderly flow.
· Single-direction free: One way is unrestricted; the opposite way remains locked.
· Full-access/full-lock: Switch between two-way free passage and complete lock-down.
· Two-way verified: Both entry and exit require validation for orderly flow.
· Single-direction free: One way is unrestricted; the opposite way remains locked.
· Full-access/full-lock: Switch between two-way free passage and complete lock-down.
Control ways
• Access control and time attendance system: RFID card/wristband, biometric/face recognition, computer with management software can also control directly
• Ticket system: QR code wristband/ticket
• coin/token collector or RFID card insert, wristband collector
• Exit button
• Wireless remote control
• Manual keys
• Ticket system: QR code wristband/ticket
• coin/token collector or RFID card insert, wristband collector
• Exit button
• Wireless remote control
• Manual keys
Application Scenes
Our BOLAN sliding turnstile gate can be used in any sites which you have access control or time attendance requirements or any other access secure needs. The main application sites we recommend as below:
1
Office Buildings & Business Parks
For employee access control; supports single/two-way authorized passage to block unauthorized entry and ensure office area security.
2
Industrial Factories & Logistics Parks
Manages personnel entry to production zones; compatible with full-lock mode to restrict access during non-working hours.
1
Residential Communities & Commercial Complexes
Adopts single-direction authorized/free passage; facilitates resident access while preventing tailgating and maintaining public order.
2
Transport Hubs & Public Venues
Switches between full-access and two-way verified modes; matches ticket/ID authentication systems to guide orderly passenger flow.
1 (7)
2 (13)
4 (5)
