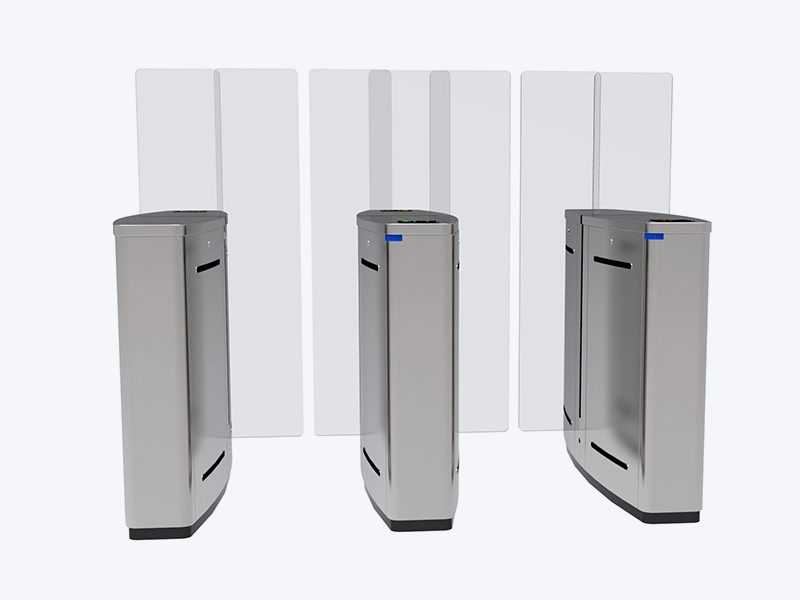

BLS-SG71 Full high gate sliding barrier pedestrian security entrance access 1

BLS-SG71 Full high gate sliding barrier pedestrian security entrance access 2

BLS-SG71 Full high gate sliding barrier pedestrian security entrance access 3

BLS-SG71 Full high gate sliding barrier pedestrian security entrance access 4

BLS-SG71 Full high gate sliding barrier pedestrian security entrance access 5

BLS-SG71 Full high gate sliding barrier pedestrian security entrance access

Name: BLS-SG71 Full high gate sliding barrier pedestrian security entrance access
Brand: Bolan

Brand:

BOLAN，Neutral, OEM & ODM Acceptable

Model:

BLS-SG71

MOQ:

1pc

Payment:

T/T before shipping

Delivery time:

One week(Depends on Quantity)

Start Port:

Shenzhen

Certification:

CE, ISO9001

Technology

Power & Control

Ultra heavy-duty high-speed motor + gearbox for stable, low-noise operation; built-in intelligent PLC controller enables linkage with external access control equipment and custom access logic.

Anti-illegal Passage

Anti-tailgating design blocks follow-up unauthorized entry; anti-reverse system prohibits reverse-direction passage.

Auto-lock Mechanism

Automatically locks after 30 seconds of idle opening, with adjustable timing parameters.

Safety Protection

Anti-pinch design prevents jamming/entrapment during sudden power off; integrated detectors + anti-collision buffers stop door closing when obstacles are detected in the channel.

Features

● Optional tempered glass or acrylic sliding doors

● Multiple surface finishes available to match architectural style

● Heavy-duty structure, service life ≥5 million opening-closing cycles

● Easy maintenance with detachable components

● Supports free flow mode for temporary large-scale activities

● Low failure rate, with professional after-sales support

● Customized dimensions, passage width, sliding doors height etc acceptable

● Anti-pinch function ensures pedestrian safety

● Standard 1500mm height sliding doors for high security

Technical Specifications

Parameter	Specification
Material	304/316 stainless steel, carbon steel coating (main body, colors optional);
Material	10mm CNC tempered glass or acrylic (sliding doors)
Overall Dimensions	Typically 1400mm (L) × 350mm (W) × 1100mm (H); Sliding door width: 280mm + 280mm; Door height: 1200–1800mm (customized for different application scenarios)
Passage Width	Standard: 600mm; Maximum: 900mm (main body size needs to be adjusted accordingly)
Passage Speed	20–30 persons per minute (normal mode);
Passage Speed	Up to 40 persons per minute (fast mode)
Operating Voltage	AC110- 240V ±10%, 50Hz
Drive Voltage	DC 12V + DC 18V
Operating Current	Standby: ≤0.5A; Working: ≤2A
Signal interface	Input: Relay signal
	Output: Dry contact
	RS232, RS485, TCP/IP
Working Temperature	-20℃ to 60℃
Protection Level	IP54 (IP65 optional for outdoor use)
Emergency Response	Automatic door opening when power off

Structure and Dimensions

A sliding barrier gate comprises a stainless steel or carbon steel coating main frame, paired horizontal sliding barrier (tempered glass or acrylic)panels (guided by rails for single-person access/anti-tailgating), an internal brushless motor-transmission & control unit(main board, power supply) (connectable to external authentication devices), and embedded infrared sensors for safety.

drawing1 拷贝 (9)

drawing2 拷贝 (9)

drawing3 拷贝 (6)

Customization & Accessories

Customization options

★ Size & Layout Customization: Fully tailored to fit your on-site layout and project-specific requirements.
★ Material & Finish Selection: 304/316 stainless steel or powder-coated carbon steel (custom colors); supports brushed, snowflake, mirror or matte surface textures.
★ Branding Customization: Logo can be engraved or silk-screen printed on the cabinet or sliding doors; reader window size, shape, logo and slogan are all customized.
★ Visual & Functional Accessories: Flexible LED indicators (fixed red X/green arrow or dynamic flowing light); sliding doors available in tempered glass or acrylic, height adjustable from 1200–1800mm with optional logo engraving; on-demand audio alarm and ambient LED lighting (custom colors) available.
★ Portable Solution: Optional version with powder-coated carbon steel base for easy relocation.
★ Custom Service Support: For more details, check our Customization Services page; contact us directly for special customization needs.

Optional Accessories

★ RFID card reader
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ Inner or outer counter
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us

Warranty

Generally 1year for electric parts, 2years for other parts after delivery. More details please feel free to confirm with us.

Operating & Control

Operating ways

· Single-direction authorized passage：Permission verification is only required for one direction, while the reverse channel remains locked at all times.
· Two-way verified passage：Both inbound and outbound directions need access validation to maintain orderly traffic management.
· Single-direction free passage：Unrestricted passage is allowed in one direction, with the opposite channel kept locked permanently.
· Full-access/full-lock mode：Dual-mode switchable between two-way free flow and complete channel lockdown.

Control ways

• Access control and time attendance system: RFID card/wristband, biometric/face recognition, computer with management software can also control directly
• Ticket system: QR code wristband/ticket
• coin/token collector or RFID card insert, wristband collector
• Exit button
• Wireless remote control
• Manual keys

Application Scenes

Our BOLAN sliding turnstile gate is ideal for all venues that demand access control, time attendance management or entry security reinforcement, with recommended application scenarios as follows:

Office Buildings & Business Parks

Enables authorized employee access via single/two-way verification, effectively blocking unauthorized entry to safeguard office premises.

Industrial Factories & Logistics Parks

Regulates personnel access to production and storage zones; supports full-lock mode to restrict entry during off-hours and reduce safety risks.

Residential Communities & Commercial Complexes

Configurable for single-direction authorized/free passage; streamlines resident entry while preventing tailgating and maintaining public order.

Transport Hubs & Public Venues

Switchable between full-access and two-way verified modes; integrates with ticket/ID authentication systems to guide orderly passenger flow.

1 (7)

2 (13)

4 (5)
