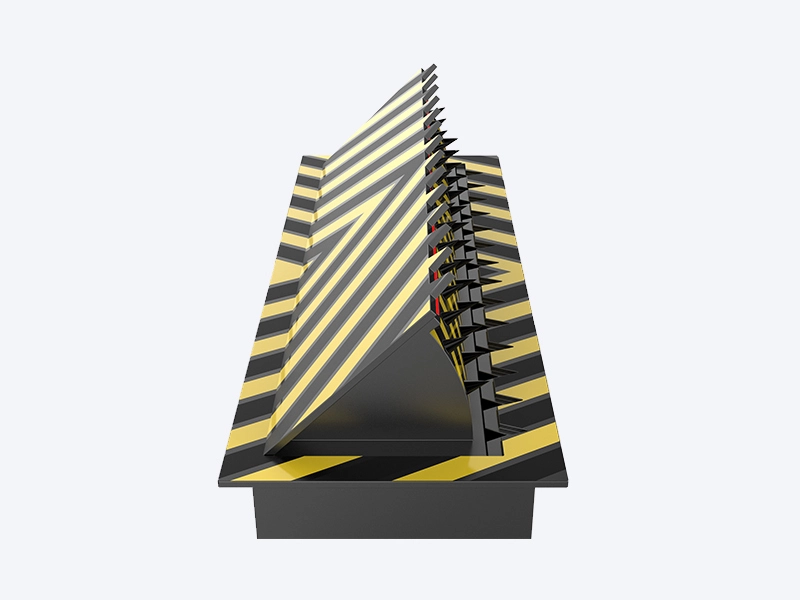

BLS-T5000 BOLAN Road blocker – anti-terrorist vehicle access barrier
5.0
Brand:
BOLAN，Neutral, OEM & ODM Acceptable
Model:
BLS-T5000
MOQ:
1pc
Payment:
T/T before shipping
Delivery time:
One week(Depends on Quantity)
Start Port:
Shenzhen
Certification:
CE, ISO9001
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technology
Superior environmental adaptability
Equipped with hot-dip galvanization + electrostatic powder coating for long-term corrosion resistance ; supports wide operating temperature range (-40°C to +70°C) and high IP ratings (IP68 for underground parts, IP54 for control cabinet).
High structural robustness
Adopts heat-treated high-strength Q235B carbon steel welded integral frame, ensuring excellent load-bearing performance and impact resistance.
Advanced control architecture
Integrates PLC control system, laying a foundation for intelligent operation and system linkage.
Reliable safety protection configuration
Built-in overload, overheat and phase-loss protection mechanisms to avoid equipment damage caused by abnormal working conditions.
Optimized structural design
Features serrated anti-slip blade and buried installation structure (760mm below ground), ensuring stable operation and adaptation to outdoor harsh environments.
Core Features
1. High-efficiency vehicle interception: Achieves strong interception force to resist 200t vehicle ; serrated blade ensures effective tire puncture and vehicle immobilization.
2. Rapid response operation: Hydraulic system enables quick deployment (1-4s) and retraction (1-3s) to meet real-time security control needs.
3. Emergency backup operation: Equipped with manual hydraulic pump, ensuring normal interception/retraction function even without power supply.
4. Intelligent integrated management: Supports remote control and linkage with access control, CCTV systems, LPR systems, traffic light etc realizing unified scheduling of security facilities.
5Heavy-duty traffic adaptation: Bears ≥200t static load and ≥20t dynamic load, allowing continuous passage of heavy trucks in normal operation.
Technical Specifications
| Parameter Name | Specification & Key Information | |
| Overall Length | 2000mm-6000mm (matches lane width requirements) | |
| Overall Width | 1100mm | |
| Height Above Ground (lifting) | 500/600mm (optional) | |
| Height Below Ground | 760mm (includes installation foundation space) | |
| Power | AC380V, 50HZ, 3.75KW | |
| Drive | Electric-hydraulic drive | |
| Lifting Speed | 2- 4 s (full deployment from retracted state) | |
| Lowering Speed | 1 - 3 s (full retraction from extended state) | |
| Static Load Capacity | Max 220 t (supports continuous heavy truck passage) | |
| Emergency Operation | Manual hydraulic pump (functional without power supply) | |
| Frame Material | Carbon steel (Q235B), welded integral structure for stability Thickness 16mm, 20mm and 25mm are optional |
|
| Surface Treatment | Hot-dip galvanization + electrostatic powder coating; |
Structure and Dimensions
BOLAN Road blocker main structures consist of main parts as below:
Dimension drawing1 (1) 拷贝
Frame
Constructed from Q235B carbon steel, featuring a welded integral structure that provides excellent stability and load-bearing capacity.
Installation Foundation
Equipped with a buried part (760mm below ground) to meet foundation requirements, ensuring stable deployment and retraction while adapting to outdoor and harsh environmental conditions.
Electric- hydraulic system
Serves as the power source for the blocker's deployment and retraction; equipped with a manual hydraulic pump for emergency operation, which remains functional even without power supply.
Control cabinet
Integrates a PLC control system, supporting remote control and linkage with access control, LRP and CCTV systems etc; can be controlled by remote control or wire button control.
Customization & Accessories
Integrated Solutions
★ Access Control System (ACS)
★ CCTV Surveillance System
★ License Plate Recognition (LPR) System
★ Automatic Barrier Gate System
★ Parking Lot Management System
★ Perimeter Intrusion Detection System (PIDS)
★ CCTV Surveillance System
★ License Plate Recognition (LPR) System
★ Automatic Barrier Gate System
★ Parking Lot Management System
★ Perimeter Intrusion Detection System (PIDS)
COMPANY STRENGTH
★ Access Control System (ACS)
★ CCTV Surveillance System
★ License Plate Recognition (LPR) System
★ Automatic Barrier Gate System
★ Parking Lot Management System
★ Perimeter Intrusion Detection System (PIDS)
★ CCTV Surveillance System
★ License Plate Recognition (LPR) System
★ Automatic Barrier Gate System
★ Parking Lot Management System
★ Perimeter Intrusion Detection System (PIDS)
COMPANY STRENGTH
★ Fire Alarm & Emergency Linkage System
★ Centralized Security Management Platform
★ Remote control, exit button
★ Traffic light
★ Any other accessories you need, please feel free to contact us
★ Centralized Security Management Platform
★ Remote control, exit button
★ Traffic light
★ Any other accessories you need, please feel free to contact us
Warranty
★ Generally 1year for electric parts, 2years for other parts after delivery. More details please feel free to confirm with us.
Application Scenes
1
Government & Core Institutional Areas
Applied to entrances of government buildings, military bases, embassies and consulates. Roadblocker meets anti-terrorism and riot prevention needs for core government facilities;and it focuses on protecting diplomatic and military premises from unauthorized vehicle intrusion.
2
Transportation Hubs
Used in airports, high-speed rail stations, subway stations and port terminals. The sites demand emphasizes rapid response to ensure the safety of large passenger flows; especially critical for preventing vehicle ramming attacks in crowded public transport areas.
3
Campuses & Commercial Parks
Adopted at school gates (kindergartens, primary and secondary schools, universities) and commercial complex entrances.There is strong demand for campus security to avoid vehicle attacks; and it’s used to separate pedestrian and vehicle flows and enhance public safety.
1
Border Crossings & Checkpoint
Deployed at land border crossings, customs checkpoints and highway toll stations.It supports border anti-smuggling and anti-illegal entry work; and used for cross-border security inspection and controlled access management between regions.
2
Large-Scale Event Venues
Utilized in stadiums, exhibition centers and concert halls during major events (sports games, exhibitions, international conferences). The sites demand focuses on temporary high-security protection, requiring quick deployment and removal to adapt to event scheduling.
3
Industrial & Energy Facilities
Applied to entrances of power plants, oil refineries, chemical plants and key industrial parks.It aims to prevent vehicle collisions that may cause industrial accidents or property losses, ensuring the safe operation of critical infrastructure.
