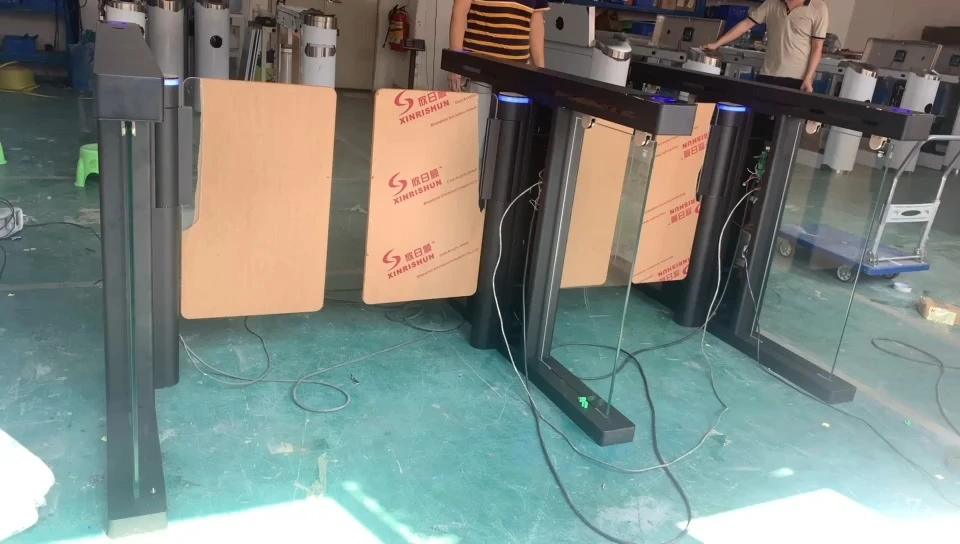

Smart Turnstile Speed Gate Pedestrian Entrance Gate Security BLS-HS325
●High-Efficiency Motor & Brake
Brushless/servo motor + clutch mechanism for smooth, responsive barrier operation.
●Smart PLC Controller
Easy programming, low power consumption, cost-efficient long-term use.
●Precision Multi-Scenario Sensors Detection
Effectively detects tailgating, reverse entry, forced intrusion & tampering.
●Adjustable Auto-Lock Reset
Auto-locks 30s post-authorization (no passage); all timing parameters fully configurable.
●Advanced Anti-Pinch & Obstacle Detection
6–16 infrared sensor pairs + buffers; stops closure on obstacle detection, preventing jamming/entrapment.
●Power-On Self-Diagnosis
Full operational cycle on startup; verifies system integrity.
●Audio-Visual Alarm Mechanism
Triggers alerts for tailgating, reverse entry, forced intrusion or malfunctions.
●User-Friendly Passage Guidance
Voice prompts + LED indicators for intuitive user direction.
Features
● Real-time passenger counting for entry control precision
● Tamper-proof alarm (triggers on component disassembly)
● Tempered glass or acrylic for transparent aesthetics
● Dynamic LED indicators for clear guidance
● Auto-adjusts swing barrier speed per pedestrian density
● Overload protection prevents motor damage
● Self-inspection when power on
● ≤45dB low-noise operation (shopping environments)
● 24/7 lifetime technical support
Technical Specifications
| Parameters | Specification |
| Material | Frame: anodized aluminum colors optional |
| Swing barriers: 10mm thickness Acrylic, tempered glass,PVC or stainless steel | |
| Dimensions | Main body:1400mm(length)*120mm(width)*980mm(height) Swing barriers: 300mm-450mm width |
| Passage Width | Standard: 600-900mm customized, some special models can be much wider |
| Speed Performance | 30-40 people/min; Barrier opening time: 0.2-0.5s after authorization (much faster than swing turnstiles) |
| Power Supply | AC 100-240V (universal voltage); |
| Control voltage: DC 24V | |
| Motor Parameters | Brushless DC motor; Power: 40-60W; Rotational speed: 3000rpm (stable and low-noise operation) |
| Savor motor, Power: 60-100W; Rotational speed: 3000rpm (stable and low-noise operation) | |
| Interface | Input：relay signal; output: dry contact RS232, RS485 |
| Environmental Resistance | IP54/IP65 rating; |
| Operating temp: -25℃ to 65℃; |
Structure and Dimensions
A modular, high-throughput pedestrian access control device, BOLAN speed gate turnstile features a robust, performance-optimized structure with these core components：main frame(304/316 stainless steel or aluminum, colors optional), swing barriers(tempered glass, acrylic, stainless steel optional), core drive systems and brake system(24V DC brushless motor or savor motor optional), control system(control motherboard and daughterboard, power supply), sensors (6-16paris infrared sensors), LED indicators and card reader windows(can open windows for parts as your access control devices)
Customization & Accessories
★ Size & Layout：Tailored to on-site space and project demands
★ Materials & Finishes：304/316 stainless steel, powder-coated steel (custom colors), anodized aluminum (premium); textures: brushed, snowflake, mirror, matte
★ Branding：Logo engraving/silk-screening on cabinets/wings; custom access control window sizes/shapes for brand consistency
★ Accessories：Dual-mode LED indicators; adjustable-width (250–450mm) barrier gates (glass/acrylic/steel, logo optional); optional audio alarm, custom ambient LED lighting
★ Portable Model：Optional steel-base version for easy relocation
★ Custom Support：Details on Customization Services page; direct inquiry for special needs
★ Fingerprint reader, face recognition
★ QR code scanner
★ Card insert, coin collector, token collector, wristband collector
★ RF remote control, exit button
★ Sound Alarm
★ Any other accessories you need, please feel free to contact us
Operating & Control
· One-Way Authorized：One-way access via verification; reverse locked
· Two-Way Verified：Both in/out require credential check
· One-Way Free：Unrestricted one-way passage; reverse locked
· Full Access/Lock Mode：Switchable between two-way free flow or full lockdown
• Ticket system: QR code wristband/ticket, E-QR code
• coin/token collector or RFID card insert, wristband collector
• Exit button(optional)
• Wireless remote control(optional)
• Manual override keys(optional)
•Any other control system or solutions please confirm with us
