1. Under-body Safety Inspection System All Parts Specification:

2

Under-vehicle Safety Inspection System Software

1.Testing criteria: The equipment must undergo at least 62 tests conducted by the Ministry of Public Security Testing Center in accordance with the GA/T 1336-2016 standard, and provide a Ministry of Public Security inspection report as proof;

2.The undercarriage image is captured using a color linear array CCD scanning method.

3.Scanning method: Linear scanning, with three modes including coil triggering, video detection, and manual triggering;

4.Field of view angle: ≥178 degrees;

5.Chassis image storage format: standard BMP or JPEG image format;

6.Startup time: The total startup time for all system components should be less than 1.5 minutes.

7.The undercarriage resolution must be ≥12000×7500.

8.Environmental parameter functions: Enables display and storage of environmental parameters such as temperature, humidity, and atmospheric pressure on the software interface, with automatic upload to the server.

9.The image repository must contain at least 1.2 million vehicle under-vehicle images.

10.Speed measurement function: Measures vehicle speed as it passes through the scanner;

11.When the vehicle passes through the under-vehicle scanner at non-uniform speed or at rest, the under-vehicle image is displayed completely, and the states of vehicle motion and stoppage can be detected.

12.When the vehicle passes through the scanner at speeds of 1-80 km/h, the system's image display time shall be ≤1 second;

13.The system automatically triggers an alarm when red, green, or blue foreign objects exceeding 5cm in size appear under the vehicle.

14.The system automatically counts the number of inspected vehicles and generates a table.

15.Under-vehicle image display: Full horizontal color display with support for horizontal and vertical mirroring operations;

16.Under-vehicle image zooming feature: Minimum magnification of 16x, allowing localized image enlargement.

3

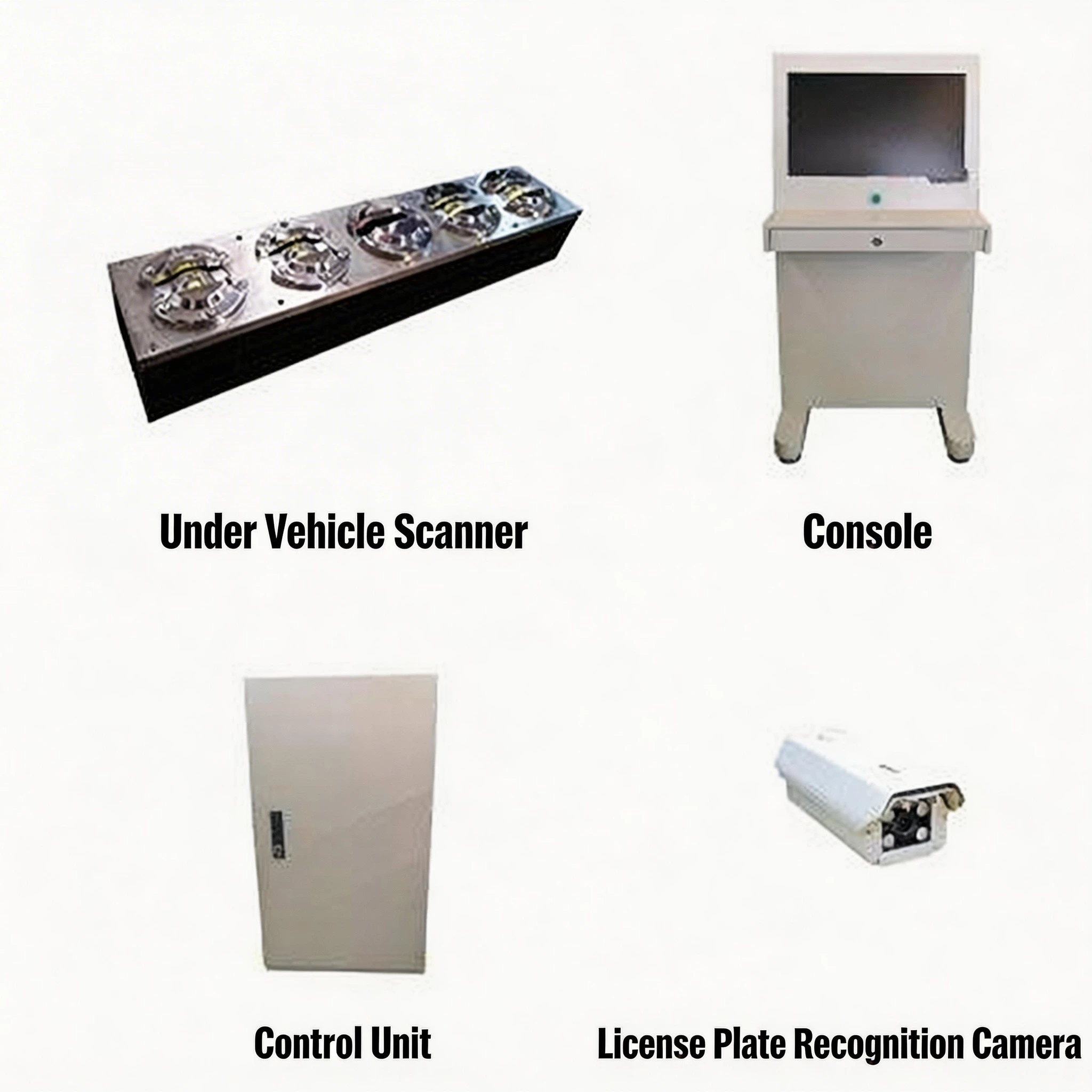

under-vehicle scanner

1.Induction lighting control module: four sealed single-cell LED surface light sources;

2.Field of view angle: ≥178 degrees;

3.Installation ground level height: The vertical height difference between the scanning device and the designed installation ground level shall be less than or equal to 2.5 cm.

4.The overall protection rating of the scanner complies with IP68 waterproofing requirements. The camera unit and supplementary light unit within the scanning device housing also meet the IP68 specifications outlined in GB4208-2008 (submerged at 1m depth for 1 hour).

5.Maintainability: The system scanning device should adopt a modular design, with LED fill lights and scanning cameras capable of independent disassembly, as well as easy assembly and maintenance.

6.The middle section of the vehicle under-vehicle scanning device housing can withstand stress levels of no less than 201MPa with relative deformation below 0.01.

7.The system is equipped with an induction lighting control module that automatically detects and switches the light source upon vehicle passage.

8.Operating temperature range for under-vehicle scanner: -40°C to +85°C;

9.Anti-fogging function for scanners: The under-vehicle scanner maintains operation at 40°C for 12 hours, followed by immediate cooling to 0°C for 2 hours, preventing water mist condensation inside the chamber.

4

System host

1. 22-inch LCD monitor

2. Hard drive: 1TB;

3. Processor: 2.2 GHz;

4. Memory: 4GB;

5. Ports: Features 4 USB ports, 2 COM ports, 2 network ports, and an HDMI port.

6. Temperature: -25 to 70°C; Humidity: 5% to 95%;

7. The operating table is constructed from cold-rolled steel plate material.

5

indicator

1 unit

Industrial-grade displays with a size of 22 inches or larger can be installed using either embedded or suspended mounting methods.

6

System cabinet

1 set

It features an attractive appearance, rational design, and convenient operation.

7

License plate recognition camera

1．License plate cameras capture images of the inspected vehicle's front and license plate, with the system supporting multi-channel scenario camera expansion.

2．Main processor: High-performance DSP;

3．Number of pixels: 1920 (H) × 1080 (V);

4．Connection method: Network

5．Video compression standards: H.264/MPEG4/JPEG;

6．Equipped with a 1/3-inch high-speed CMOS sensor, dual-stream code, auto-aperture, and electric lens, it supports standard ONVIF2.4 and GB28181 protocols, featuring motion detection and white LED light suppression capabilities.

7．Working environment: Operating temperature ranges from-15°C to +70°C, with humidity levels between 10% and 90%.

8．The average recognition time was ≤15 ms.

8

under-vehicle Scanning System Control Unit

1.The vehicle under-vehicle safety inspection system features 2 optocoupler input/output interfaces, 3 TTL level input/output interfaces, and 4 relay input/output interfaces.

2.Features dustproof and waterproof structural design;

3.Built-in air vacuum pump;

4.Equipped with temperature, humidity, and pressure sensors;

5.The system is equipped with an anti-fogging protection module;

6.The communication interface supports two types: RS232 and RS485.

9

Dedicated connection data cable

3 items

1. 10-meter scanner data cable;

2. 10-meter license plate camera data cable;

3. The data cable from the control unit to the cabinet is 10 meters long.
